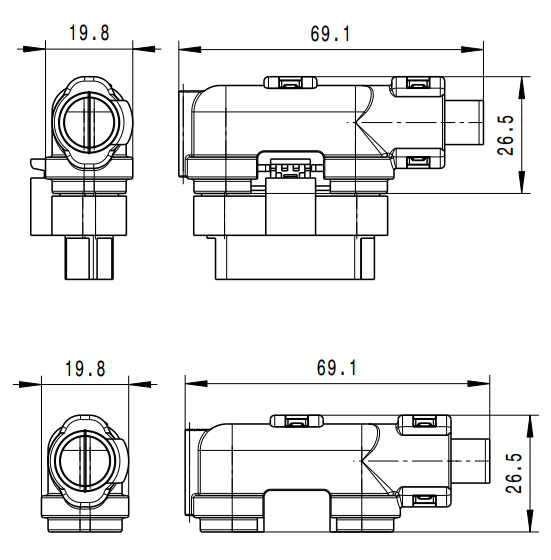

16 Pol - Form B - 1184140
1184140
- Connector Cap for 90° cable routing (Form B)
- Quick and intuitive assembly due to one-piece design
- Non-oriental assembly
- Robust design related to reliable clipping elements
suitable for:
Hirschmann Sealstar 1.2 2-reihig
Version
16 Pol
Request individual advice
Technical characteristics
Technical data sheet
Colour
black
Material
PA 6.6/6
Temperature resistance
-40°C up to +130°C
Chemical resistance
Alcohol, weak alkalis, solvents, fuels, mineral oils, grease/oils
Tightness
Supports IPX9K impermeability
Order number
1184140
Shipping time
On Demand
Advantages
Staub und Schmutz
Staub und Schmutz
Due to the wide variety of outlet directions and ability to maximize space with low profile solutions, our dress covers allow cables to easily route in their defined direction. For optimal use of the installation space.
Bauraum
Bauraum
Due to the wide variety of outlet directions and ability to maximize space with low profile solutions, our dress covers allow cables to easily route in their defined direction. For optimal use of the installation space.
Intuitive Montage
Schutz der Leitungen
Reduzierung von Schwingungen
Einsatz auf engstem Raum (Form D und E)
