2 Pol - Form B - 1183008
1183008

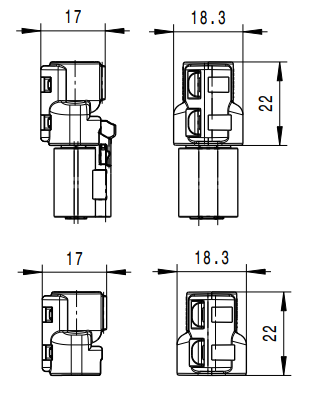

- Connector Cap for 90° cable routing (Form B)
- Quick and intuitive assembly due to one-piece design
- Non-oriental assembly
- Robust design related to reliable clipping elements
suitable for:
Hirschmann Sealstar 1.2; Tyco MCON 1.2; Kostal MLK 1.2
Version
2 Pol
Request individual advice
Technical characteristics
Technical data sheet
Colour
black
Material
PA 6.6/6
Temperature resistance
-40°C up to +130°C
Chemical resistance
Alcohol, weak alkalis, solvents, fuels, mineral oils, grease/oils
Tightness
Supports IPX9K impermeability
Order number
1183008
Shipping time
On Demand
Advantages
Staub und Schmutz
Staub und Schmutz
Due to the wide variety of outlet directions and ability to maximize space with low profile solutions, our dress covers allow cables to easily route in their defined direction. For optimal use of the installation space.
Bauraum
Bauraum
Due to the wide variety of outlet directions and ability to maximize space with low profile solutions, our dress covers allow cables to easily route in their defined direction. For optimal use of the installation space.
Intuitive Montage
Schutz der Leitungen
Reduzierung von Schwingungen
Einsatz auf engstem Raum (Form D und E)
