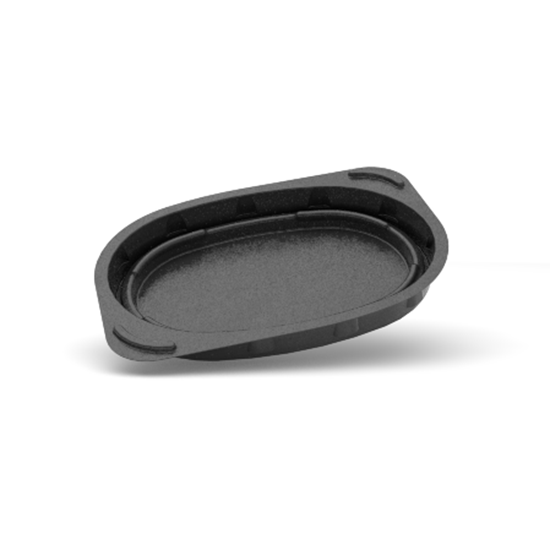

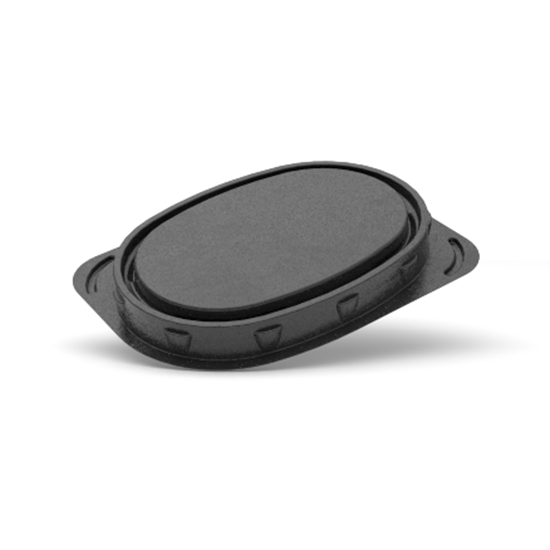

HV Connector Caps - GPN 394

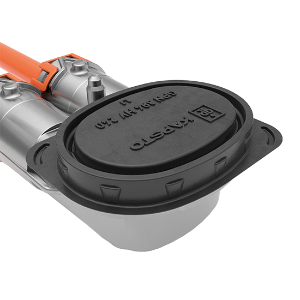

The GPN 394 high-voltage connector caps are suitable for use in parts and components for hybrid and electric vehicles. They protect connectors, e.g. from the battery to the inverter and electric motor, against corrosion and mechanical damage and provide protection against splashing water in accordance with protection class IPX4. The connector cap has non-slip gripping surfaces that allow fast removal and impresses with a functional registered design.
- HV connector caps for external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
This new series of standards is currently under development and will be available soon. The information provided is therefore provisional and subject to change. Our team will be happy to answer any questions you may have.
Recycling blend
Dimensions
|
Dimensions
|
||||||
|---|---|---|---|---|---|---|
|
Item
|
I
|
J
|
M
|
CAD
|
Order no.
|
|
| Available soon GPN 394 HV 240 PET, black | 66,3 | 62,1 | 11 | show | 39405020000 | |
|
|
||||||
| Available soon GPN 394 HV 420 PET, black | 91,1 | 63,4 | 11,2 | show | 39405010000 | |
|
|
||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Application guide
|
Item
|
Contact connections
|
||
|---|---|---|---|
| Available soon GPN 394 HV 240 PET, black | HVS |
|
|
| Available soon GPN 394 HV 420 PET, black | HVS |
|
|
Quality advantages
Better fit.
Cleaner.
