Compact Contact Protection - GPN 364
The GPN 364 compact contact protection protects compact flat connector housings in the low-voltage range. The handy grip tab guarantees fast removal and the circumferential ribs enable an optimal clamping fit. The compact contact protection offers protection against splashing water from all directions (IPX4) depending on the specific connector design and quality.
- Compact contact protection for internal protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Two sustainable variants made from post-consumer recyclate available

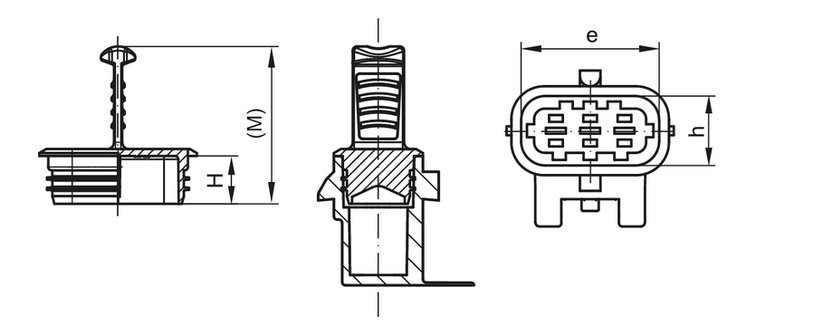

Dimensions
![Drawing Compact contact protection - GPN 364 Drawing compact contact protection - GPN 364](/en/dam/jcr:46da4013-ef8e-4e55-bef5-dcafca67a624/gpn-364-cad.png)
Dimensions
|
|||||||
---|---|---|---|---|---|---|---|
Item
|
e
|
h
|
H
|
M
|
CAD
|
Order no.
|
|
GPN 364 KS 0212 PCR-PE / PE-LD, yellow | 15,3 | 10,3 | 7 | 23 | show | 36402120073 | |
|
|||||||
GPN 364 KS 0412 PCR-PE / PE-LD, yellow | 25,3 | 12,2 | 7 | 23 | show | 36404120073 | |
|
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 2´ Materials and application´.
Application guide
Item
|
Contact connections
|
||
---|---|---|---|
GPN 364 KS 0212 PCR-PE / PE-LD, yellow | AMP 2.8 |
|
|
GPN 364 KS 0412 PCR-PE / PE-LD, yellow | AMP 2.8 |
|
The contact protection GPN 364 was developed for special compact connector housings listed in the application table. The contact protector is additionally suitable for other connections.
** Related to Pöppelmann sample connector, tested according to DIN 40050. Please note the information in chapter 4 Materials and use.
Quality advantages
![<p><strong>Better fit.</strong></p>](/en/dam/jcr:7cef28d6-1622-4eb2-933a-ad28c6730d5a/kapsto-icon-normschutz.png)
Better fit.
![<p><strong>Saves time.</strong></p>](/en/dam/jcr:f9b9e149-d63c-4254-a0a9-b71da2fc52cc/kapsto-icon-zeitsparend.png)
Saves time.
![<p><strong>Seals better.</strong></p>](/en/dam/jcr:32a1ecbe-a291-4d8e-a7fe-3dc511c1cd09/Abdichtend-IPX4.png)
Seals better.
![<p><strong>Cleaner.</strong></p>](/en/dam/jcr:ce9e0b46-d06f-4dbc-a42a-bc38d7c9c18b/kapsto-icon-sauberkeit.png)
Cleaner.
![<p><strong>Better.</strong></p>](/en/dam/jcr:720816ac-c80b-4454-9754-37b505968675/kapsto-icon-zusatzinformationen.png)
Better.
![<p><strong>More resource-saving.</strong></p>](/en/dam/jcr:a3ea48bd-a0a3-47f4-9a51-b6ec6a585aaa/kapsto-icon-ressourcenschonender.png)
More resource-saving.
Blend of post-consumer recyclate and virgin material
