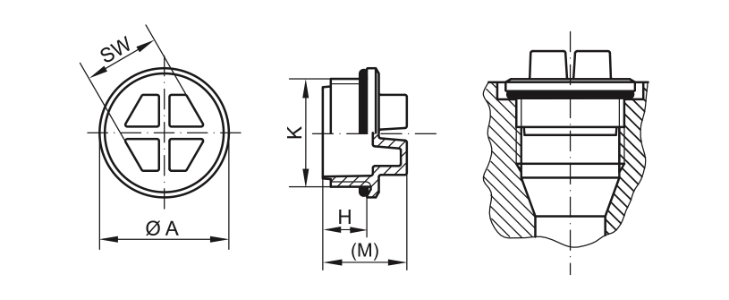

Drawing sealing plug with O-ring - GPN 737

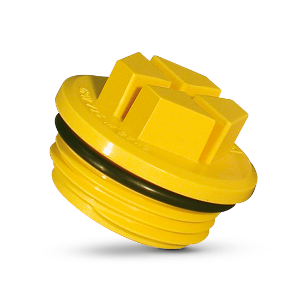

Sealing Screw Plugs with O-Ring - GPN 737

The GPN 737 sealing screw plugs with O-ring are suitable for closing screw holes as per DIN 3852-1 and DIN ISO 6149-1 and are particularly well suited for increased demands on leak tightness. The sturdy material is of high quality and is particularly impact-resistant. Coupled with the O-ring, the circumferential sealing lip, which is designed without a mould seam, prevents the ingress or leaking of liquids within certain limits. To be fitted with a screwdriver or wrench.

Sealing plugs with O-ring for internal protection

more advantages

Virgin material

Dimensions

Colour

yellow

Material

PA 6

Technical data sheet

show

View prices and conditions directly online here and order even more easily.

	Applicable for	Dimensions
Item	K	A	H	M	SW	CAD	Order no.
GPN 737 9/16 - 18 UNF PA 6, yellow	9/16 - 18 UNF	17,8	11	18	10	show	73724420000

GPN 737 G 1 PA 6, yellow	G 1	40	11,5	21,5	24	show	73706620000

GPN 737 G 1 1/2 PA 6, yellow	G 1 1/2	55,4	11,5	22,5	30	show	73706640000

GPN 737 G 1 1/4 PA 6, yellow	G 1 1/4	50,4	11,5	22,5	24	show	73706630000

GPN 737 G 1/2 PA 6, yellow	G 1/2	27,2	9,5	19,5	15	show	73706600000

GPN 737 G 1/4 PA 6, yellow	G 1/4	19,2	7,5	15	10	show	73706580000

GPN 737 G 3/4 PA 6, yellow	G 3/4	32,3	9,5	19,5	19	show	73706610000

GPN 737 G 3/8 PA 6, yellow	G 3/8	22,2	7,5	17,5	13	show	73706590000

GPN 737 M 8 x 1 PA 6, yellow	M 8 x 1	12,2	8	15	7	show	73708100000

GPN 737 M 10 x 1 PA 6, yellow	M 10 x 1	14,2	8	15	7	show	73710100000

GPN 737 M 12 x 1,5 PA 6, yellow	M 12 x 1,5	17,2	11	18	10	show	73712150000

GPN 737 M 14 x 1,5 PA 6, yellow	M 14 x 1,5	19,2	11	19	10	show	73714150000

GPN 737 M 16 x 1,5 PA 6, yellow	M 16 x 1,5	22	11	21	13	show	73716150000

GPN 737 M 18 x 1,5 PA 6, yellow	M 18 x 1,5	24	11	21	13	show	73718150000

GPN 737 M 20 x 1,5 PA 6, yellow	M 20 x 1,5	26	11	21	15	show	73720150000

GPN 737 M 22 x 1,5 PA 6, yellow	M 22 x 1,5	27,2	11	21	15	show	73722150000

GPN 737 M 24 x 1,5 PA 6, yellow	M 24 x 1,5	31,5	12	22	15	show	73724150000

GPN 737 M 26 x 1,5 PA 6, yellow	M 26 x 1,5	32	13,5	23,5	19	show	73726150000

GPN 737 M 27 x 2 PA 6, yellow	M 27 x 2	32,3	11	21	19	show	73727200000

GPN 737 M 33 x 2 PA 6, yellow	M 33 x 2	40,4	13,5	23,5	24	show	73733200000

GPN 737 M 42 x 2 PA 6, yellow	M 42 x 2	50	13,5	24,5	24	show	73742200000

GPN 737 M 48 x 2 PA 6, yellow	M 48 x 2	55,4	13,5	24,5	30	show	73748200000

GPN 737 M 60 x 2 PA 6, yellow	M 60 x 2	68,5	13,5	24,5	30	show	73760200000

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

Engraving corresponds to standard series GPN 735.

Quality advantages

Better fit.

For closing internal threads in accordance with DIN 3852-1, DIN ISO 6149-1.

Seals better.

The circumferential sealing lip (no mould-parting feature) and the O-ring prevent the penetration or leaking of liquids depending on the application.

More robust.

Made from premium impact-resistant polyamide.

Better.

Same design as GPN 735 but fitted with O-ring. For high leak proof requirements, e.g. untreated sealing surfaces, high process temperatures, long process times, and inreased pressure inside the component.
