Thin wall plugs - GPN 601+602

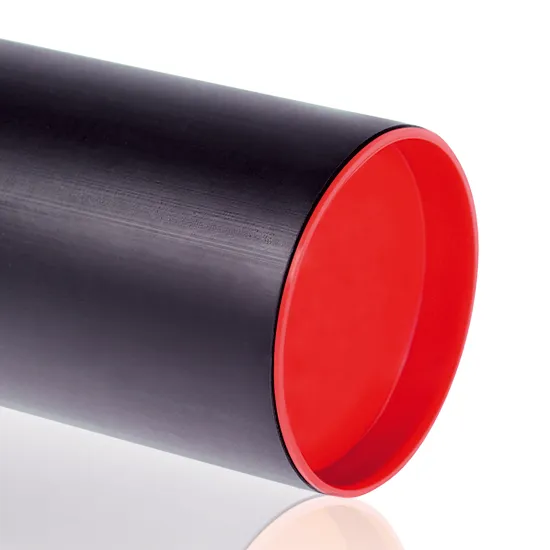

Application Thin wall plug - GPN 602
Drawing thin wall plugs - GPN 601+602
Thin Walled Tapered Closures - GPN 602
The GPN 602 thin-walled plugs can be used as a cap or plug and are suitable for the protection of external threads or to close bore holes and openings. The thin-walled design enables fast fitting and removal and low material use in production. The conical design is ideal for accommodating tolerances.
- Thin-walled plugs for internal and external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
Virgin material
Dimensions
Technical data sheet
|
Internal application |
External application |
Internal application |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Item
|
A
|
B
|
C
|
D
|
E
|
G
|
H
|
CAD
|
Order no.
|
|
| GPN 602 D 1055* | 110 | 103 | 105 | 104 | 102 | 17 | 16 | show | 60210550000 | |
|
|
||||||||||
| GPN 602 D 1070 | 117 | 104,5 | 107 | 106 | 103,5 | 17,2 | 16 | show | 60210700000 | |
|
|
||||||||||
| GPN 602 D 1090 | 117 | 106 | 109 | 107,5 | 106 | 18,4 | 17 | show | 60210900000 | |
|
|
||||||||||
| GPN 602 D 1230 | 130 | 119,5 | 123 | 122 | 118 | 24,4 | 23 | show | 60212300000 | |
|
|
||||||||||
| GPN 602 D 1290 | 136 | 126 | 129 | 128 | 125 | 26,5 | 25 | show | 60212900000 | |
|
|
||||||||||
| GPN 602 D 1306 | 136,5 | 128 | 130,6 | 129 | 127 | 24,2 | 23 | show | 60213060000 | |
|
|
||||||||||
| GPN 602 D 1380 | 144 | 135 | 138 | 137 | 134 | 24,4 | 23 | show | 60213800000 | |
|
|
||||||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in Chapter 4 Materials and use.
* This size is supplied with hole.
Quality advantages
Saves time.
Easy handling due to being a thinner walled version of the GPN 600.
Lighter.
Less material used during production.
More versatile.
Can be used universally as plug or cap. The tapered design is ideal for accommodating tolerances.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Better.
To close off bore holes and internal openings, or to protect studs and external threads.
