Kontaktschutz – GPN 366

Der Kontaktschutz GPN 366 dient dem Schutz von Kompaktstecker-Anschlüssen im Niedervolt-Bereich und ist ebenfalls geeignet für ovale Öffnungen. Die handliche Grifflasche sorgen für eine schnelle Demontage und die umlaufenden Lamellen ermöglichen einen optimalen Klemmsitz. Innerhalb gewisser Grenzen verhindert der Kontaktschutz den Eintritt von Flüssigkeiten.


  • Kontaktschutz für den Innenschutz
  • Produktion nach ISO 16232 im speziell eingerichteten Sauberraum möglich
  • Zwei nachhaltige Varianten aus Post-Consumer-Rezyklat verfügbar
more advantages
100% Post-Consumer Recyclate 100% Post-Consumer Recyclate
Dimensions Application guide Quality advantages Information material

Dimensions

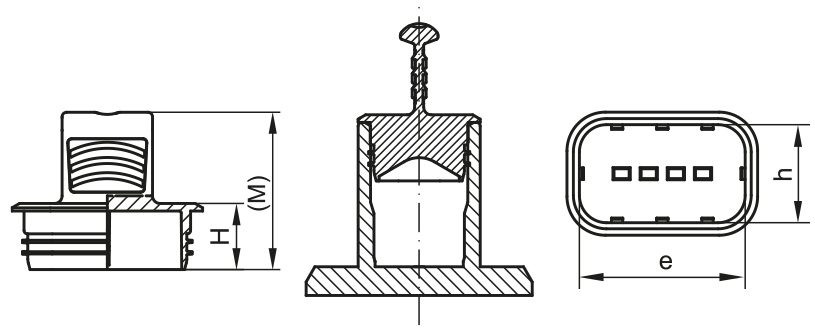

Zeichnung Kontaktschutz - GPN 366
Colour
blue
Material
PCR-PE
mm inch
View prices and conditions directly online here and order even more easily.
Dimensions
Item
e
h
H
M
CAD
Order no.
New GPN 366 KS 1413 PCR-PE, blue 14 12,9 0.303 0.815 36614130000
New GPN 366 KS 1813 PCR-PE, blue 18 12,9 0.303 0.815 36618130000
New GPN 366 KS 2213 PCR-PE, blue 22 12,9 0.303 0.815 36622130000
New GPN 366 KS 2613 PCR-PE, blue 26 12,9 0.303 0.815 36626130000
New GPN 366 KS 3013 PCR-PE, blue 30 12,9 0.303 0.815 36630130000
New GPN 366 KS 3413 PCR-PE, blue 34 12,9 0.303 0.815 36634130000
New GPN 366 KS 3813 PCR-PE, blue 38 12,9 0.303 0.815 36638130000

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

free samples Samples non-binding offer offer
Recommend
SCROLL

Application guide

mm inch
Item
Contact connections
New GPN 366 KS 2613 PCR-PE, blue MCON 1.2 / SealStar 1.2
  • 10
New GPN 366 KS 3013 PCR-PE, blue MCON 1.2 / SealStar 1.2
  • 12
New GPN 366 KS 3413 PCR-PE, blue MCON 1.2 / SealStar 1.2
  • 14
New GPN 366 KS 3813 PCR-PE, blue MCON 1.2 / SealStar 1.2
  • 16
New GPN 366 KS 1413 PCR-PE, blue MCON 1.2 / SealStar 1.2
  • 2
New GPN 366 KS 1813 PCR-PE, blue MCON 1.2 / SealStar 1.2
  • 6
New GPN 366 KS 2213 PCR-PE, blue MCON 1.2 / SealStar 1.2
  • 8

The article consists of 98 % PCR-PE and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.

For these articles, color deviations as well as black dots, which cannot be completely avoided due to production technology, are permissible. We recommend that functional tests be carried out before series production.

The illustration is exemplary. This is a product from our standard programme. Deviations between the individual sizes are possible.

free samples Samples non-binding offer offer
Recommend
SCROLL

Quality advantages

<p><strong>More resource-saving.</strong></p>

More resource-saving.

The plastic used consists of 100 % recycled material.
<p><strong>Saves time.</strong></p>

Saves time.

With practical tab for fast removal.
<p><strong>Seals better.<strong></p>

Seals better.

Prevents penetration of liquids within certain limits.
<p><strong>Cleaner.</strong></p>

Cleaner.

Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
<p><strong>Better.</strong></p>

Better.

Circumferential ribs for perfect design fit.
