Compact Contact Protection - GPN 364

The GPN 364 compact contact protection protects compact flat connector housings in the low-voltage range. The handy grip tab guarantees fast removal and the circumferential ribs enable an optimal clamping fit. The compact contact protection offers protection against splashing water from all directions (IPX4) depending on the specific connector design and quality.


  • Compact contact protection for internal protection
  • Production in accordance with ISO 16232 in a specially designed cleanroom possible
  • Two sustainable variants made from post-consumer recyclate available
more advantages
100% Post-Consumer Recyclate 100% Post-Consumer Recyclate Recycling blend Recycling blend Virgin material Virgin material
Dimensions Application guide Quality advantages Information material

Dimensions

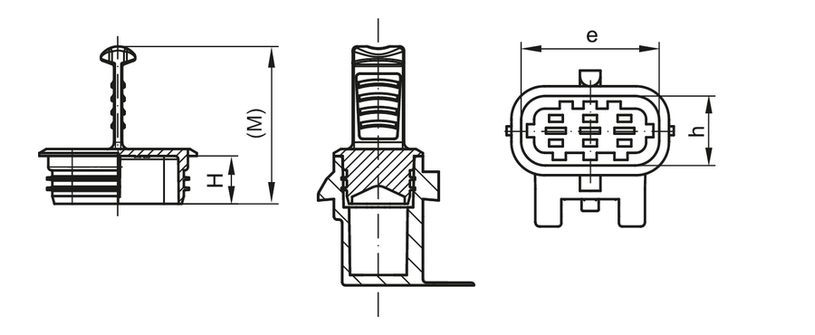

Drawing compact contact protection - GPN 364
Colour
yellow
Material
PCR-PE / PE-LD
mm inch
View prices and conditions directly online here and order even more easily.
Dimensions
Item
e
h
H
M
CAD
Order no.
GPN 364 KS 0212 PCR-PE / PE-LD, yellow 15,3 10,3 0.276 0.906 36402120073
GPN 364 KS 0312 PCR-PE / PE-LD, yellow 20,3 10,3 0.276 0.906 36403120073
GPN 364 KS 0412 PCR-PE / PE-LD, yellow 25,3 12,2 0.276 0.906 36404120073
GPN 364 KS 0512 PCR-PE / PE-LD, yellow 30,3 12,1 0.276 0.906 36405120073

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

free samples Samples non-binding offer offer
Recommend
SCROLL

Application guide

mm inch
Item
Contact connections
GPN 364 KS 0212 PCR-PE / PE-LD, yellow AMP 2.8
  • 2
GPN 364 KS 0312 PCR-PE / PE-LD, yellow AMP 2.8
  • 3
GPN 364 KS 0412 PCR-PE / PE-LD, yellow AMP 2.8
  • 4
GPN 364 KS 0512 PCR-PE / PE-LD, yellow AMP 2.8
  • 5

The GPN 364 contact protection was developed for special compact connector housings listed in the application table. The contact protector is additionally suitable for other connectors.

** Related to Pöppelmann sample plugs, tested according to DIN 40050. Please note the information in chapter 4 Materials and use.

free samples Samples non-binding offer offer
Recommend
SCROLL

Quality advantages

<p><strong>Better fit.</strong></p>

Better fit.

Protection for compact flat connector housings.
<p><strong>Saves time.</strong></p>

Saves time.

With practical tab for fast removal.
<p><strong>Seals better.<strong></p>

Seals better.

Protection against splashing water from any direction (IPX4) depending on the specific connector design and quality. Related to Pöppelmann sample connector, tested according to DIN 40050.*
<p><strong>Cleaner.</strong></p>

Cleaner.

Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
<p><strong>Better.</strong></p>

Better.

Circumferential ribs for perfect design fit.
<p><strong>More resource-saving.</strong></p>

More resource-saving.

Mix of post-consumer recyclate and virgin material
