Compact Contact Protection - GPN 364

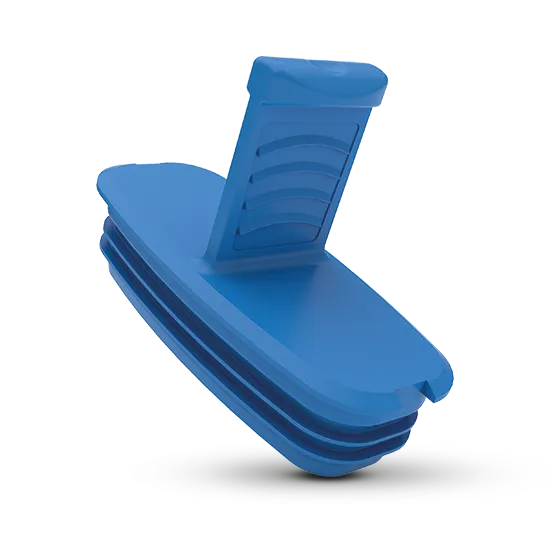

The GPN 364 compact contact protection protects compact flat connector housings in the low-voltage range. The handy grip tab guarantees fast removal and the circumferential ribs enable an optimal clamping fit. The compact contact protection offers protection against splashing water from all directions (IPX4) depending on the specific connector design and quality.
- Compact contact protection for internal protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Two sustainable variants made from post-consumer recyclate available
Dimensions
Dimensions
|
|||||||
---|---|---|---|---|---|---|---|
Item
|
e
|
h
|
H
|
M
|
CAD
|
Order no.
|
|
GPN 364 KS 0212 PCR-PE / PE-LD, yellow | 15,3 | 10,3 | 0.276 | 0.906 | show | 36402120073 | |
|
|||||||
GPN 364 KS 0312 PCR-PE / PE-LD, yellow | 20,3 | 10,3 | 0.276 | 0.906 | show | 36403120073 | |
|
|||||||
GPN 364 KS 0412 PCR-PE / PE-LD, yellow | 25,3 | 12,2 | 0.276 | 0.906 | show | 36404120073 | |
|
|||||||
GPN 364 KS 0512 PCR-PE / PE-LD, yellow | 30,3 | 12,1 | 0.276 | 0.906 | show | 36405120073 | |
|
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Application guide
Item
|
Contact connections
|
||
---|---|---|---|
GPN 364 KS 0212 PCR-PE / PE-LD, yellow | AMP 2.8 |
|
|
GPN 364 KS 0312 PCR-PE / PE-LD, yellow | AMP 2.8 |
|
|
GPN 364 KS 0412 PCR-PE / PE-LD, yellow | AMP 2.8 |
|
|
GPN 364 KS 0512 PCR-PE / PE-LD, yellow | AMP 2.8 |
|
The GPN 364 contact protection was developed for special compact connector housings listed in the application table. The contact protector is additionally suitable for other connectors.
** Related to Pöppelmann sample plugs, tested according to DIN 40050. Please note the information in chapter 4 Materials and use.
Quality advantages
Better fit.
Saves time.
Seals better.
Cleaner.
Better.
More resource-saving.
Mix of post-consumer recyclate and virgin material
