Fast-fit Caps - GPN 940

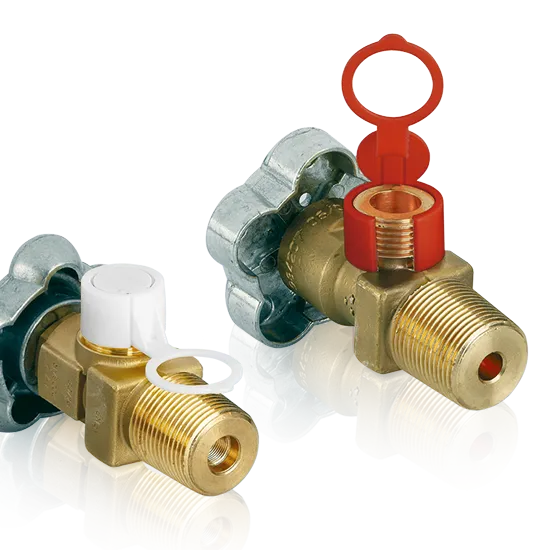

The GPN 940 fast-fit caps are tamper-evident closures for valves according to DIN 477-1 and are also suitable for external threads and bolts. They have a ventilation tab for safe leakage. The easy-to-grip ring lug and tear lines ensure fast removal.
- Fast-fit caps for external protection
- Two sustainable variants made from post-consumer recyclate available

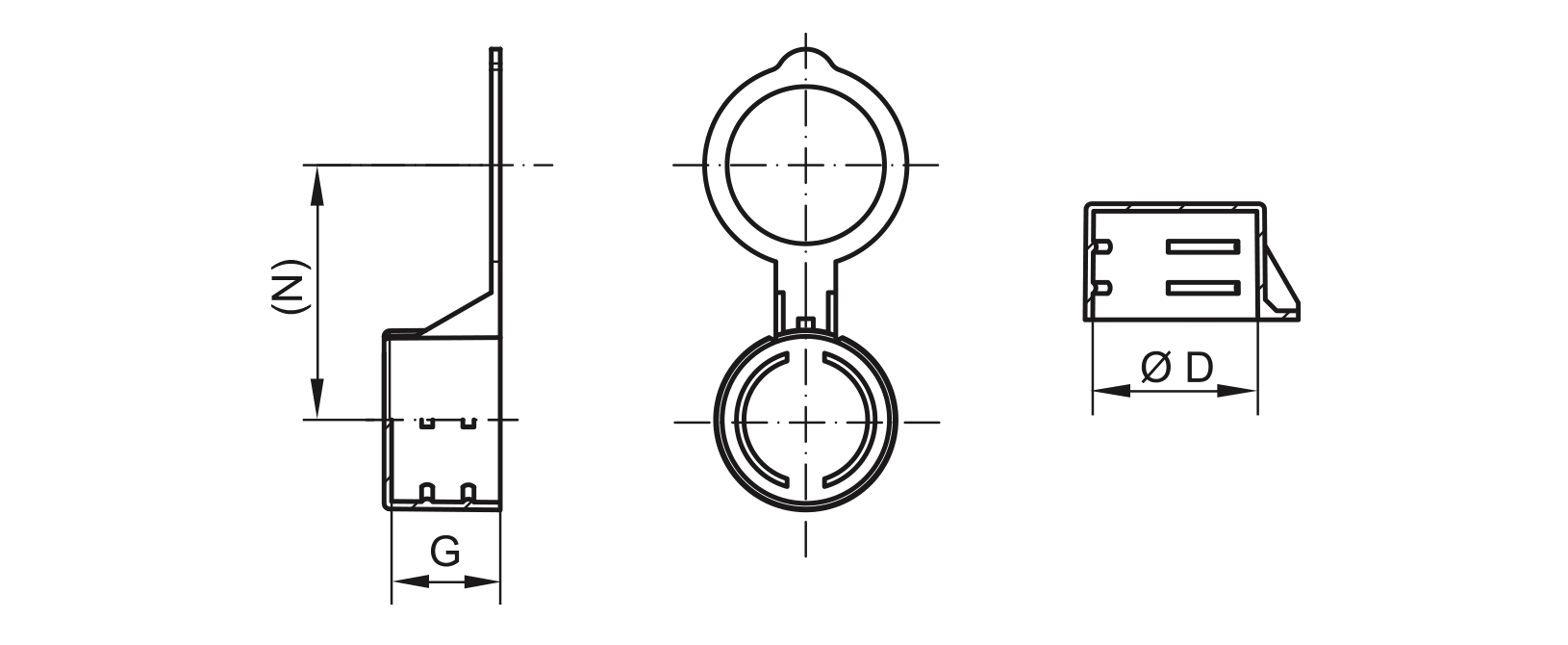

Dimensions

Applicable for
|
Dimensions
|
||||||
---|---|---|---|---|---|---|---|
Item
|
External thread
|
D
|
G
|
N
|
CAD
|
Order no.
|
|

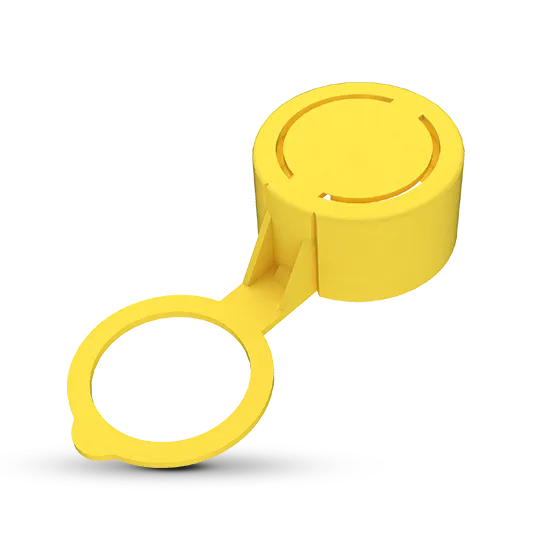

GPN 940 SV 26 PCR-PE / PE-LD, yellow | G 3/4 | 1.024 | 0.571 | 1.449 | show | 94002600073 | |
|
|||||||
GPN 940 SV 21,3 PCR-PE / PE-LD, yellow | W 21,80 x 1/14 | 0.839 | 0.571 | 1.339 | show | 94002130073 | |
|
|||||||
GPN 940 SV 23,9 PCR-PE / PE-LD, yellow | W 24,32 x 1/14 | 0.941 | 0.571 | 1.378 | show | 94002390073 | |
|
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages

Better fit.
Tamper-evident closure for valves in accordance with DIN 477-1.

Saves time.
Particularly fast and easy to remove.

Better.
With ventilation tab for safe leakage. Also suitable for external threads and studs.

More resource-saving.
Mix of post-consumer recyclate and virgin material
