Application flange covers - GPN 650 Form B

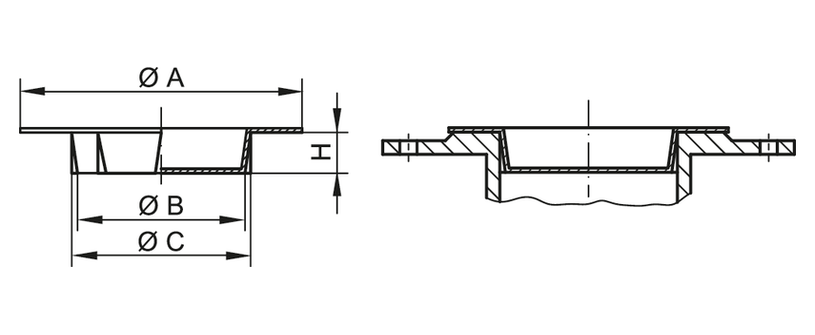

Drawing flange covers - GPN 650 Form B
Flange Covers - GPN 650 Type B
The GPN 650 Type B flange covers protect flanges as per DIN EN 1092-1 and DIN 28117 against damage and dirt, seal the opening and protect the sealing face of the flange fitting. The flange covers have additional clamping ribs on the conical shaft for accommodating larger tolerances.
- Flange covers for internal protection
- Also available in Type A without clamping ribs
- Two sustainable variants made from post-consumer recyclate available
100% Post-Consumer Recyclate
Recycling blend
Virgin material
Dimensions
|
Applicable for
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
NW mm
|
A
|
B
|
C
|
H
|
CAD
|
Order no.
|
|
| GPN 650 / 10-R PCR-PE / PE-LD, yellow | 10 | 1.575 | 0.295 | 0.413 | 0.394 | show | 65100100073 | |
|
|
||||||||
| GPN 650 / 100-R PCR-PE / PE-LD, yellow | 100 | 6.378 | 3.661 | 4.016 | 0.787 | show | 65101000073 | |
|
|
||||||||
| GPN 650 / 125-R PCR-PE / PE-LD, yellow | 125 | 8.071 | 4.646 | 5 | 0.787 | show | 65101250073 | |
|
|
||||||||
| GPN 650 / 15-R PCR-PE / PE-LD, yellow | 15 | 1.772 | 0.492 | 0.622 | 0.394 | show | 65100150073 | |
|
|
||||||||
| GPN 650 / 150-R PCR-PE / PE-LD, yellow | 150 | 9.646 | 5.512 | 5.984 | 0.787 | show | 65101500073 | |
|
|
||||||||
| GPN 650 / 20-R PCR-PE / PE-LD, yellow | 20 | 2.323 | 0.63 | 0.866 | 0.591 | show | 65100200073 | |
|
|
||||||||
| GPN 650 / 25-R PCR-PE / PE-LD, yellow | 25 | 2.677 | 0.827 | 1.024 | 0.591 | show | 65100250073 | |
|
|
||||||||
| GPN 650 / 32-R PCR-PE / PE-LD, yellow | 32 | 3.071 | 1.102 | 1.319 | 0.591 | show | 65100320073 | |
|
|
||||||||
| GPN 650 / 40-R PCR-PE / PE-LD, yellow | 40 | 3.465 | 1.417 | 1.634 | 0.591 | show | 65100400073 | |
|
|
||||||||
| GPN 650 / 50-R PCR-PE / PE-LD, yellow | 50 | 4.016 | 1.811 | 2.008 | 0.591 | show | 65100500073 | |
|
|
||||||||
| GPN 650 / 65-R PCR-PE / PE-LD, yellow | 65 | 4.803 | 2.362 | 2.598 | 0.787 | show | 65100650073 | |
|
|
||||||||
| GPN 650 / 80-R PCR-PE / PE-LD, yellow | 80 | 5.433 | 2.933 | 3.189 | 0.787 | show | 65100800073 | |
|
|
||||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Better fit.
Protection for flanges in accordance with DIN EN 1092-1 and DIN EN 28117.
More versatile.
Design B with additional clamping ribs for accomodating larger tolerances.
Better.
Closes the opening and protects the sealing face of the flange fitting.
More resource-saving.
Mix of post-consumer recyclate and virgin material
Downloads
Alternative standard series
