Application flange covers - GPN 655

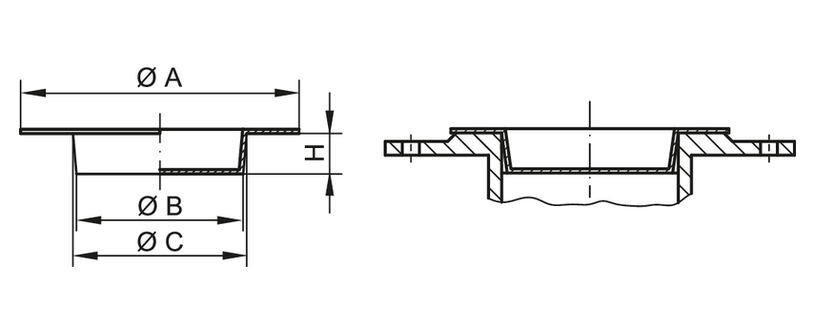

Drawing flange cover - GPN 655 form A
Flange Covers - GPN 655 Type A
The GPN 655 Type A flange covers protect flanges as per ANSI/ASME B 16.5 against damage and dirt, seal the opening and protect the sealing face of the flange fitting. Conical design for clamping.
- Flange covers for internal protection
- Also available in Type B with clamping ribs
- Mix of post-consumer recyclate and virgin material available
Virgin material
Dimensions
|
Applicable for
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
NW mm
|
A
|
B
|
C
|
H
|
CAD
|
Order no.
|
|
| GPN 655 / 200 PE-LLD, yellow | 200 | 10.63 | 8.189 | 8.268 | 0.709 | show | 65502000000 | |
|
|
||||||||
| GPN 655 / 250 PE-LLD, yellow | 250 | 14.764 | 10.039 | 10.276 | 0.807 | show | 65502500000 | |
|
|
||||||||
| GPN 655 / 300 PE-LLD, yellow | 300 | 14.764 | 12.126 | 12.323 | 0.866 | show | 65503000000 | |
|
|
||||||||
| GPN 655 / 350 PE-LLD, yellow | 350 | 17.323 | 13.425 | 13.622 | 0.886 | show | 65503500000 | |
|
|
||||||||
| GPN 655 / 400 PE-LLD, yellow | 400 | 19.291 | 15.669 | 16.063 | 1.181 | show | 65504000000 | |
|
|
||||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
For these articles, color deviations as well as black dots, which cannot be completely avoided due to production technology, are permissible. We recommend that functional tests be carried out before series production.
Quality advantages
Better fit.
Protection for flanges in accordance with ANSI/ASME B 16.5.
Better.
Closes the opening and protects the sealing face of the flange fitting.
More resource-saving.
Mix of post-consumer recyclate and virgin material
