Application cable end caps - GPN 212

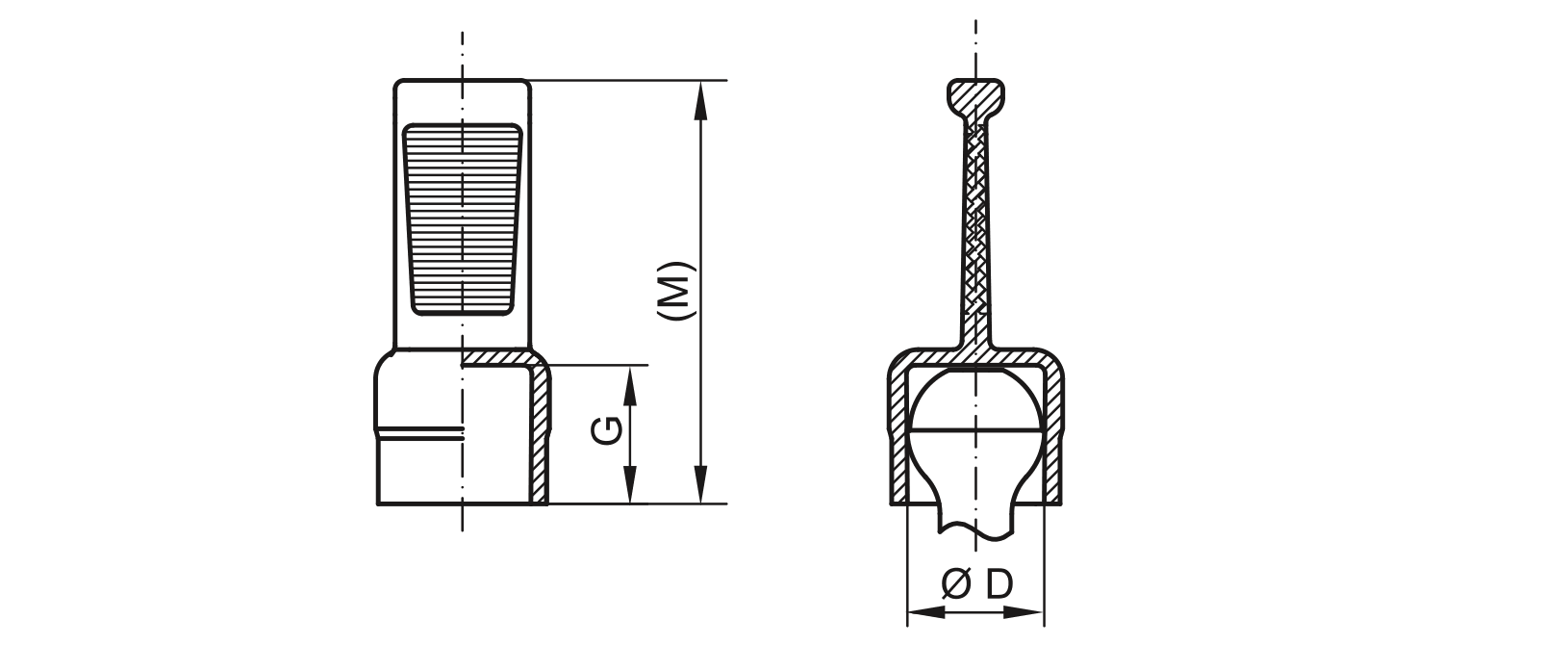

Drawing Cable end caps - GPN 212
Flexible Grip Caps - GPN 212
The GPN 212 pipe end caps are particularly suitable for protecting pipes and ball sockets. The ergonomically shaped grip tab enables easy handling during fitting and removal. The flexible material enables use for different counter-piece diameters and is temporarily heat-resistant up to 120°C.
- Sustainable variant as PCR and virgin material mixture
- Pipe end caps for external protection
- Temporarily heat-resistant up to 120°C
Recycling blend
Virgin material
Dimensions
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|
|
Item
|
D min
|
D max
|
G
|
M
|
CAD
|
Order no.
|
|
| GPN 212 FM 102 PCR-TPE, yellow | 10,3 | 11,2 | 0.343 | 0.953 | show | 21201020085 | |
|
|
|||||||
| GPN 212 FM 76 PCR-TPE, yellow | 8 | 8,8 | 0.307 | 0.917 | show | 21200760085 | |
|
|
|||||||
| GPN 212 FM 77 PCR-TPE, yellow | 8 | 9 | 0.398 | 1 | show | 21200770085 | |
|
|
|||||||
| GPN 212 FM 88* PCR-TPE, yellow | 9,4 | 10,1 | 0.437 | 1.055 | show | 21200880085 | |
|
|
|||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
* This size is supplied with internal clamping surfaces.
** Substances of very high concern according to EU-REACH-VO
Quality advantages
Saves time.
With ergonomically designed removal tab for easy handling.
More versatile.
Suitable for different diameters due to flexible material. Free from plasticizers with SVHC** relevance.
Better.
Particularly suitable for ball linings.
More resource-saving.
Mix of post-consumer recyclate and virgin material
