Grip Plugs - GPN 305

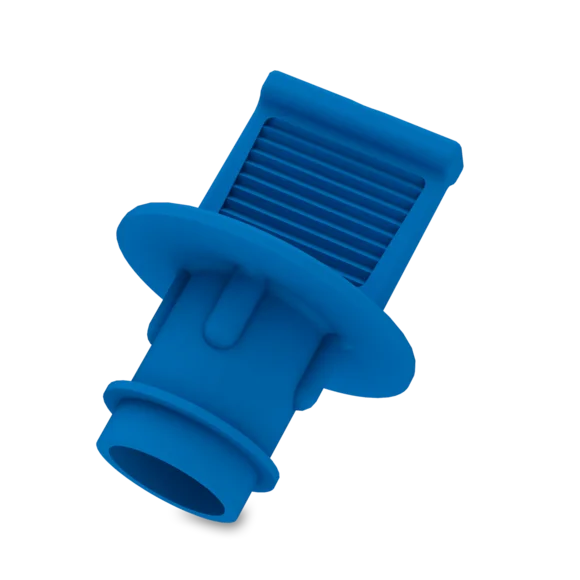

The GPN 305 grip plugs are suitable for the protection of hoses, bore holes and internal threads. The handy grip tab enables easy removal and the circumferential ribs and centring bars ensure a firm fit.

Grip plugs for internal protection

more advantages

Virgin material

Dimensions

Colour

yellow

mm inch

View prices and conditions directly online here and order even more easily.

	Dimensions
Item	A	B	C	H	M	CAD	Order no.
GPN 305 GV 5, yellow	0.433 11	0.118 3	0.209 5,3	0.433 11	0.945 24	show	30500050000

GPN 305 GV 7, yellow	0.394 10	0.197 5	0.28 7,1	0.512 13	1.063 27	show	30500070000

GPN 305 GV 10, yellow	0.709 18	0.335 8,5	0.409 10,4	0.433 11	0.945 24	show	30500100000

GPN 305 GV 11, yellow	0.748 19	0.374 9,5	0.449 11,4	0.433 11	0.945 24	show	30500110000

GPN 305 GV 12, yellow	0.709 18	0.394 10	0.492 12,5	0.394 10	1.22 31	show	30500120000

GPN 305 GV 13, yellow	0.591 15	0.433 11	0.531 13,5	0.394 10	1.024 26	show	30500130000

GPN 305 GV 14, yellow	0.787 20	0.453 11,5	0.551 14	0.295 7,5	0.807 20,5	show	30500140000

GPN 305 GV 15, yellow	0.846 21,5	0.551 14	0.606 15,4	0.433 11	0.945 24	show	30500150000

GPN 305 GV 18, yellow	0.925 23,5	0.622 15,8	0.724 18,4	0.295 7,5	0.807 20,5	show	30500180000

GPN 305 GV 19, yellow	1.122 28,5	0.669 17	0.764 19,4	0.433 11	0.945 24	show	30500190000

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Application guide

mm inch

	for metric threads
Item	fine thread			Standard thread
GPN 305 GV 5, yellow	M 6 x 0,75 M 6 x 0,75			M 6 M 6
GPN 305 GV 7, yellow				M 8 M 8
GPN 305 GV 10, yellow				M 12 M 12
GPN 305 GV 11, yellow
GPN 305 GV 12, yellow				M 14 M 14
GPN 305 GV 13, yellow
GPN 305 GV 14, yellow
GPN 305 GV 15, yellow		M 16 x 1 M 16 x 1
GPN 305 GV 18, yellow
GPN 305 GV 19, yellow		M 20 x 1 M 20 x 1	M 20 x 1,5 M 20 x 1,5

This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.
