HV Connector Covers - GPN 385
The GPN 385 high-voltage connector covers are suitable for use in parts and components for hybrid and electric vehicles. They protect TE Connectivity (HVA 280 2P/3P Header ASSY) and Hirschmann (HPS 40) connectors, e.g. in rechargeable batteries, DC/DC converters, on-board chargers, electrical connectors and high-voltage distribution, against corrosion and mechanical damage and provide protection against splashing water in accordance with protection class IPX9K. The connector cover has non-slip gripping surfaces that allow fast removal, can be fitted on both sides and impresses with a functional registered design. The plastic used consists of post-consumer recycled material.
- HV connector covers for external protection
- Suitable for HVA 2P/3P Header ASSY and HPS 40 HV contact connectors
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Blue Angel-certified recycled material
100% Post-Consumer Recyclate

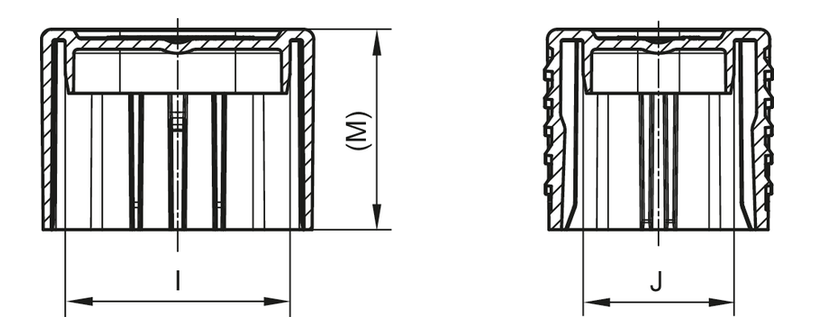

Dimensions
|
Dimensions
|
||||||
|---|---|---|---|---|---|---|
|
Item
|
I
|
J
|
M
|
CAD
|
Order no.
|
|
| Available soon GPN 385 HVU 280 PCR-PE, recycling blue | 0.878 | 0.543 | 0.787 | show | 38506150000 | |
|
|
||||||
| Available soon GPN 385 HV 280 SI PCR-PE, recycling blue | 1.071 | 0.681 | 1.063 | show | 38502010000 | |
|
|
||||||
| New GPN 385 HV 40-4+2 PCR-PE, recycling blue | 1.094 | 0.953 | 0.965 | show | 38503020000 | |
|
|
||||||
| New GPN 385 HV 280-2 PCR-PE, blue | 1.102 | 0.74 | 0.984 | show | 38506050000 | |
|
|
||||||
| Available soon GPN 385 HVR 60 PCR-PE, recycling blue | 1.185 | 1.185 | 0.787 | show | 38505090000 | |
|
|
||||||
| New GPN 385 HV 51-2 PCR-PE, blue | 1.417 | 1.417 | 1.189 | show | 38505040000 | |
|
|
||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Application guide
|
Item
|
Contact connections
|
||
|---|---|---|---|
| Available soon GPN 385 HVU 280 PCR-PE, recycling blue | AMP 2.8, HVU 280 |
|
|
| New GPN 385 HV 40-4+2 PCR-PE, recycling blue | HPS |
|
|
| Available soon GPN 385 HV 280 SI PCR-PE, recycling blue | HV 280 SI |
|
|
| New GPN 385 HV 280-2 PCR-PE, blue | HVA |
|
|
| New GPN 385 HV 51-2 PCR-PE, blue | HVR |
|
|
| Available soon GPN 385 HVR 60 PCR-PE, recycling blue | HVR |
|
|
For these articles, color deviations as well as black dots, which cannot be completely avoided due to production technology, are permissible. We recommend that functional tests be carried out before series production.
The article consists of 98 % PCR-PE and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.
Quality advantages
More resource-saving.
Better fit.
Saves time.
Seals better.
Cleaner.
