Protective caps for paintwork

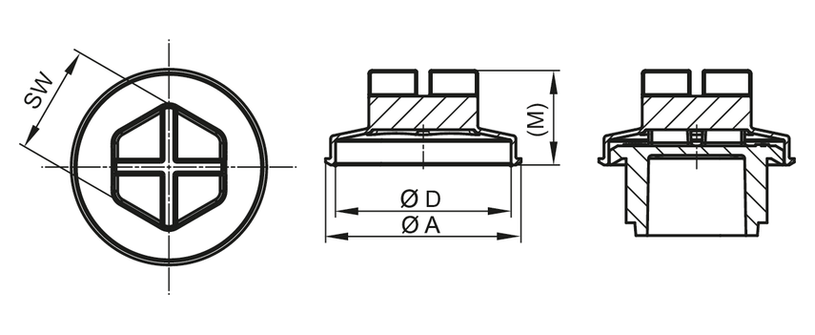

gpn 733 paint protection cap, sketch,
Sealing Plugs - GPN 734
The GPN 734 paint caps are suitable as paint protection for the GPN 736 and GPN 738 sealing plugs. The paint caps keep a defined area around the screw plug free of paint, maintain the appearance of the sealing plugs and reduce the risk of contamination of the opening to be protected.
- First utility-model-protected protective cap made by the 3D printing process
- Painting caps for sealing plugs GPN 736 and GPN 738
- Can be mounted with KAPSTO BIT-73X
Virgin material
Dimensions
|
Applicable for
|
Dimensions
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|---|---|
|
Item
|
/LocalizationKeys/productDetailsPage/kapsto/kapsto.column.10781
|
A
|
B
|
D
|
M
|
SW
|
CAD
|
Order no.
|
|
| New GPN 734 7/16 - 20 UNF PA 6, yellow | 7/16 - 20 UNF | 0.815 | 0.059 | 0.693 | 0.465 | 12 | show | 73426670000 | |
|
|
|||||||||
| New GPN 734 M 12 x 1,5 MJF PA12, black | M 12 x 1,5 | 0.854 | 0.063 | 0.732 | 0.457 | 12 | show | 73412150000 | |
|
|
|||||||||
| New GPN 734 M 14 x 1,5 MJF PA12, black | M 14 x 1,5 | 0.933 | 0.063 | 0.811 | 0.504 | 12 | show | 73414150000 | |
|
|
|||||||||
| New GPN 734 M 16 x 1,5 MJF PA12, black | M 16 x 1,5 | 1.051 | 0.083 | 0.929 | 0.583 | 15 | show | 73416150000 | |
|
|
|||||||||
| New GPN 734 M 18 x 1,5 MJF PA12, black | M 18 x 1,5 | 1.13 | 0.083 | 1.008 | 0.583 | 15 | show | 73418150000 | |
|
|
|||||||||
| New GPN 734 M 22 x 1,5 MJF PA12, black | M 22 x 1,5 | 1.248 | 0.083 | 1.126 | 0.583 | 18 | show | 73422150000 | |
|
|
|||||||||
| New GPN 734 M 33 x 2 MJF PA12, black | M 33 x 2 | 1.795 | 0.098 | 1.673 | 0.583 | 27 | show | 73433200000 | |
|
|
|||||||||
| New GPN 734 M 42 x 2 MJF PA12, black | M 42 x 2 | 2.15 | 0.106 | 2.028 | 0.622 | 27 | show | 73442200000 | |
|
|
|||||||||
Dimensions in mm
*Only suitable for the GPN 736 and GPN 738
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Better fit.
Optimum fit and clamping for GPN 736 and GPN 738 sealing plugs during the coating process.
