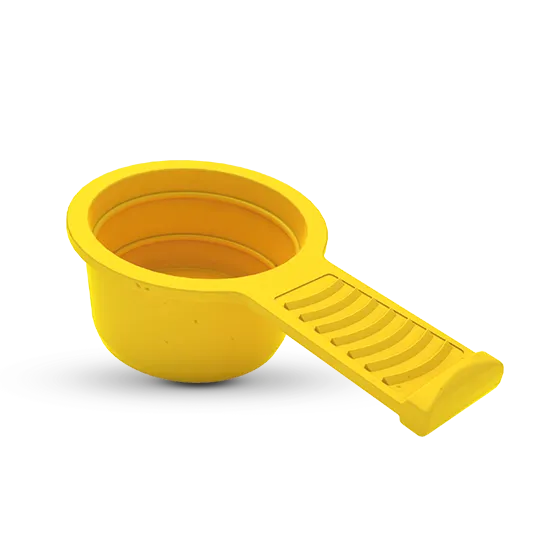

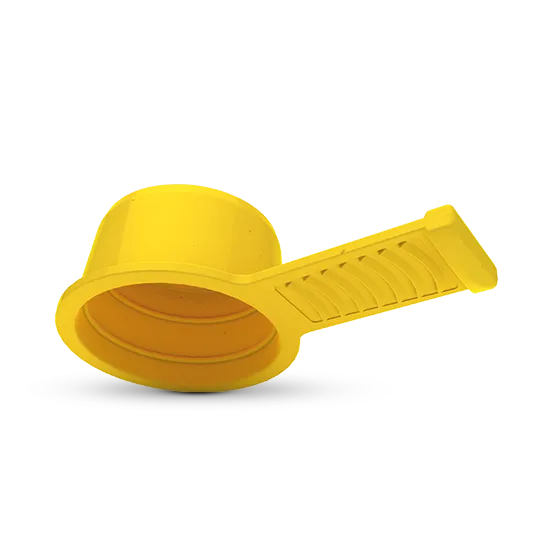

Tapered closure with side tab - GPN 608

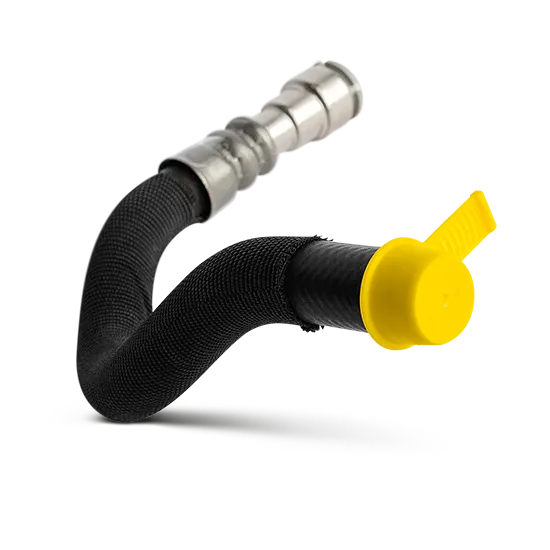

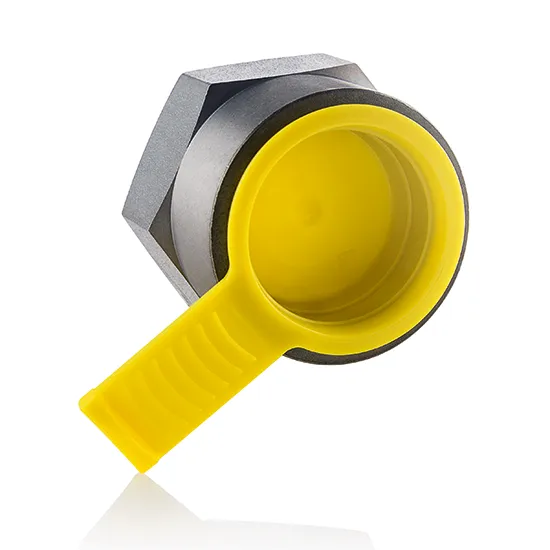

The GPN 608 tapered closure with side tab can be used universally as a cap or plug and protects bore holes and internal threads as well as bolts and external threads. The grip tab in a patented tab design enables extremely fast fitting and removal. The conical design is ideal for accommodating tolerances.

Tapered closure for internal and external protection
Production in accordance with ISO 16232 in a specially designed cleanroom possible
Two sustainable variants made from post-consumer recyclate available

more advantages

100% Post-Consumer Recyclate

Recycling blend

Virgin material

Dimensions

Colour

yellow

mm inch

View prices and conditions directly online here and order even more easily.

		Indoor application		Outdoor application			Indoor application
Item	A	B	C	D	E	G	H	N	CAD	Order no.
GPN 608 BL 90, yellow	0.433 11	0.276 7	0.354 9	0.307 7,8	0.217 5,5	0.366 9,3	0.346 8,8	0.689 17,5	show	60800900073

GPN 608 BL 100, yellow	0.472 12	0.315 8	0.394 10	0.346 8,8	0.252 6,4	0.366 9,3	0.346 8,8	0.071 1,8	show	60801000073

GPN 608 BL 110, yellow	0.512 13	0.354 9	0.433 11	0.386 9,8	0.291 7,4	0.366 9,3	0.346 8,8	0.728 18,5	show	60801200073

GPN 608 BL 130, yellow	0.591 15	0.433 11	0.512 13	0.465 11,8	0.37 9,4	0.406 10,3	0.386 9,8	0.768 19,5	show	60801300073

GPN 608 BL 140, yellow	0.63 16	0.472 12	0.551 14	0.5 12,7	0.413 10,5	0.445 11,3	0.425 10,8	0.787 20	show	60801400073

GPN 608 BL 150, yellow	0.709 18	0.512 13	0.591 15	0.539 13,7	0.445 11,3	0.445 11,3	0.425 10,8	0.945 24	show	60801500073

GPN 608 BL 160, yellow	0.748 19	0.555 14,1	0.626 15,9	0.579 14,7	0.484 12,3	0.441 11,2	0.425 10,8	0.965 24,5	show	60801600073

GPN 608 BL 170, yellow	0.783 19,9	0.587 14,9	0.661 16,8	0.618 15,7	0.528 13,4	0.441 11,2	0.425 10,8	0.984 25	show	60801700073

GPN 608 BL 180, yellow	0.823 20,9	0.634 16,1	0.701 17,8	0.657 16,7	0.567 14,4	0.441 11,2	0.425 10,8	1.004 25,5	show	60801800073

GPN 608 BL 190, yellow	0.862 21,9	0.677 17,2	0.744 18,9	0.697 17,7	0.606 15,4	0.441 11,2	0.425 10,8	1.024 26	show	60801900073

GPN 608 BL 200, yellow	0.902 22,9	0.713 18,1	0.783 19,9	0.736 18,7	0.646 16,4	0.48 12,2	0.465 11,8	1.24 31,5	show	60802000073

GPN 608 BL 210, yellow	0.937 23,8	0.756 19,2	0.815 20,7	0.776 19,7	0.685 17,4	0.48 12,2	0.465 11,8	1.26 32	show	60802100073

GPN 608 BL 220, yellow	0.984 25	0.799 20,3	0.87 22,1	0.815 20,7	0.713 18,1	0.48 12,2	0.465 11,8	1.28 32,5	show	60802200073

GPN 608 BL 230, yellow	1.024 26	0.827 21	0.906 23	0.854 21,7	0.764 19,4	0.484 12,3	0.465 11,8	1.299 33	show	60802300073

GPN 608 BL 240, yellow	1.063 27	0.866 22	0.945 24	0.894 22,7	0.803 20,4	0.484 12,3	0.465 11,8	1.319 33,5	show	60802400073

GPN 608 BL 250, yellow	1.098 27,9	0.917 23,3	0.972 24,7	0.933 23,7	0.843 21,4	0.48 12,2	0.465 11,8	1.339 34	show	60802500073

GPN 608 BL 260, yellow	1.138 28,9	0.953 24,2	1.012 25,7	0.972 24,7	0.882 22,4	0.48 12,2	0.465 11,8	1.358 34,5	show	60802600073

GPN 608 BL 270, yellow	1.177 29,9	0.992 25,2	1.055 26,8	1.012 25,7	0.921 23,4	0.52 13,2	0.504 12,8	1.378 35	show	60802700073

GPN 608 BL 280, yellow	1.256 31,9	1.028 26,1	1.098 27,9	1.051 26,7	0.965 24,5	0.52 13,2	0.504 12,8	1.417 36	show	60802800073

GPN 608 BL 290, yellow	1.331 33,8	1.071 27,2	1.134 28,8	1.091 27,7	1 25,4	0.52 13,2	0.504 12,8	1.457 37	show	60802900073

GPN 608 BL 300, yellow	1.378 35	1.118 28,4	1.181 30	1.126 28,6	1.031 26,2	0.512 13	0.504 12,8	1.476 37,5	show	60803000073

GPN 608 BL 330, yellow	1.614 41	1.264 32,1	1.299 33	1.248 31,7	1.181 30	0.303 7,7	0.256 6,5	1.594 40,5	show	60803300073

GPN 608 BL 670, yellow	2.827 71,8	2.591 65,8	2.63 66,8	2.575 65,4	2.531 64,3	0.433 11	0.413 10,5	2.004 50,9	show	60806700073
