Tapered Plugs - GPN 607

The GPN 607 grip plugs are suitable for the protection of bore holes and internal threads, are ideal for painting and are temporarily heat-resistant up to 250°C. The handy tab guarantees fast removal and the circumferential ribs prevent the ingress of liquids within certain limits. The conical-shaped design means that the grip plugs can accommodate larger tolerances.


  • Grip plugs for internal protection
  • Temporarily extremely heat-resistant up to 250°C
more advantages

Dimensions

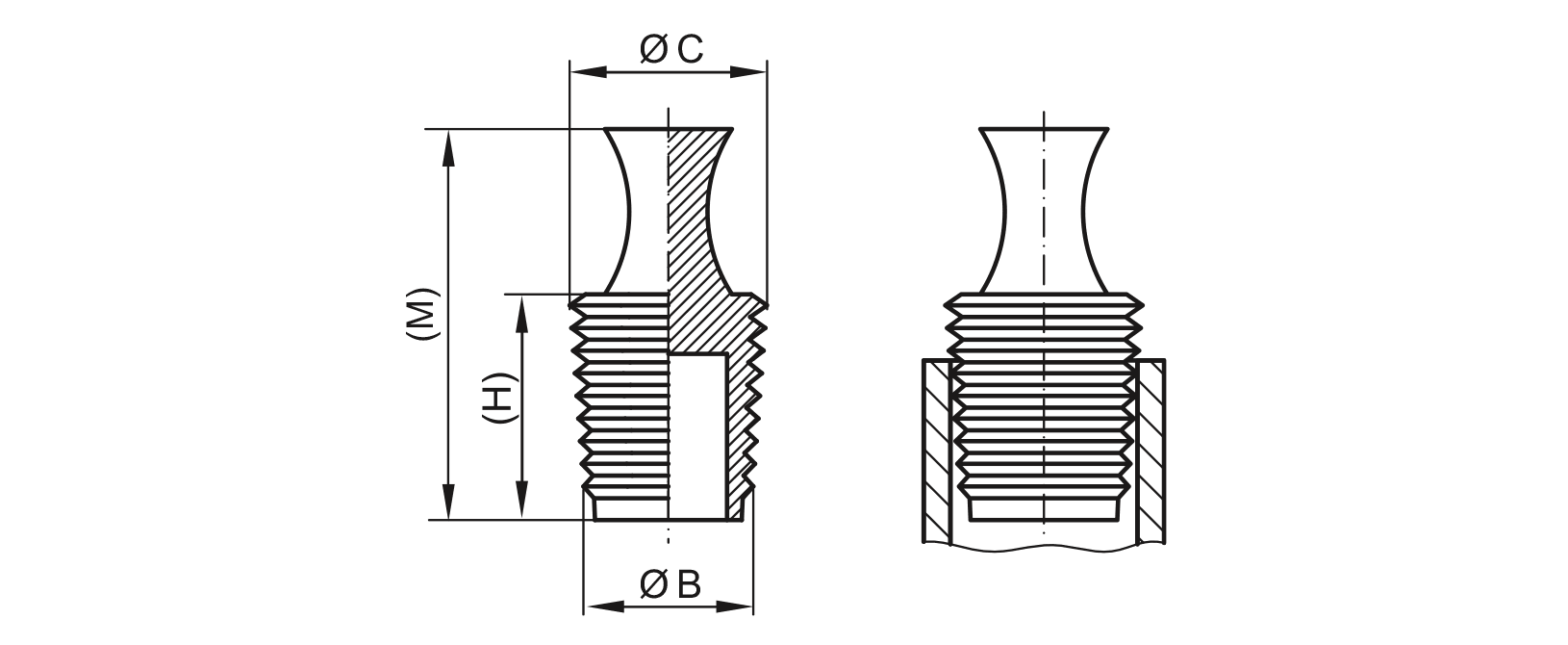

Drawing taper plugs - GPN 607
Colour
natural
Material
SI, SISI
mm inch
View prices and conditions directly online here and order even more easily.
Dimensions
Item
B
C
H
M
CAD
Order no.
GPN 607 / 0204 SI, natural 0.079 0.157 0.768 1.386 60702040000
GPN 607 / 0406 SI, natural 0.157 0.236 1 1.701 60704060000
GPN 607 / 0608 SI, natural 0.236 0.315 1 1.697 60706080000
GPN 607 / 0810 SI, natural 0.315 0.413 1 1.693 60708100000
GPN 607 / 1012 SI, natural 0.386 0.453 1 1.713 60710120000
GPN 607 / 1214 SISI, natural 0.469 0.571 1 1.673 60712140000
GPN 607 / 1416 SI, natural 0.551 0.63 1 1.673 60714160000
GPN 607 / 1618 SI, natural 0.63 0.709 1 1.673 60716180000
GPN 607 / 1820 SI, natural 0.709 0.787 1.024 1.693 60718200000
GPN 607 / 2022 SI, natural 0.787 0.886 1 1.693 60720220000
GPN 607 / 2224 SI, natural 0.886 0.945 1 1.693 60722240000
GPN 607 / 2426 SISI, natural 0.945 1.024 1 1.693 60724260000
GPN 607 / 2628 SI, natural 1.012 1.102 1 1.693 60726280000
GPN 607 / 2832 SI, natural 1.126 1.26 1 1.724 60728320000

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Application guide

mm inch
for metric threads
Item
fine thread
Standard thread
Pipe thread
Unified thread
GPN 607 / 0204 SI, natural M 4
GPN 607 / 1214 SISI, natural M 14 x 1,5 M 14 1/4 1/2
GPN 607 / 1820 SI, natural M 20 x 1,5 M 20 1/2
GPN 607 / 2022 SI, natural M 22 x 1,5 M 22 1/2 5/8 7/8
GPN 607 / 2224 SI, natural M 24 x 1,5 M 24 x 2 M 24 1
GPN 607 / 2426 SISI, natural M 26 x 1,5 M 26 3/4 1 1 1/16
GPN 607 / 2628 SI, natural M 28 x 1,5 M 28 x 2 M 28 M 30
GPN 607 / 2832 SI, natural M 30 x 1,5 M 32 x 1,5 M 32 x 2 M 32 7/8
GPN 607 / 0608 SI, natural M 8 x 1 M 8 5/16
GPN 607 / 0810 SI, natural M 10 x 1 M 10 1/8 3/8
GPN 607 / 1012 SI, natural M 12 x 1 M 12 x 1,5 M 12 7/16
GPN 607 / 1416 SI, natural M 14 x 1 M 16 x1 M 16 x 1,5 M 16 3/8 9/16 5/8
GPN 607 / 1618 SI, natural M 18 x 1 M 18 x 1,5 M 18 3/4
GPN 607 / 0406 SI, natural M 6 x 0,75 M 6

This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.

Clear burrs as well as partial foreign particles are permissible with these articles. We recommend that functional tests be carried out before series production.

Quality advantages

<p><strong>Saves time.</strong></p>

Saves time.

Practical tab for easy removal.
<p><strong>More versatile.</strong></p>

More versatile.

The tapered design is ideal for accommodating large tolerances.
<p><strong>Higher temperature resistance.</strong></p>

Higher temperature resistance.

Extremely heat resistant up to 250 °C
<p><strong>Seals better.<strong></p>

Seals better.

Circumferential ribs are providing limited sealing action against an ingress or outflow of fluids.
<p><strong>Better.</strong></p>

Better.

Suitable for bore holes and internal threads. Particularly suitable for painting.
