Application cable end cap - GPN 220

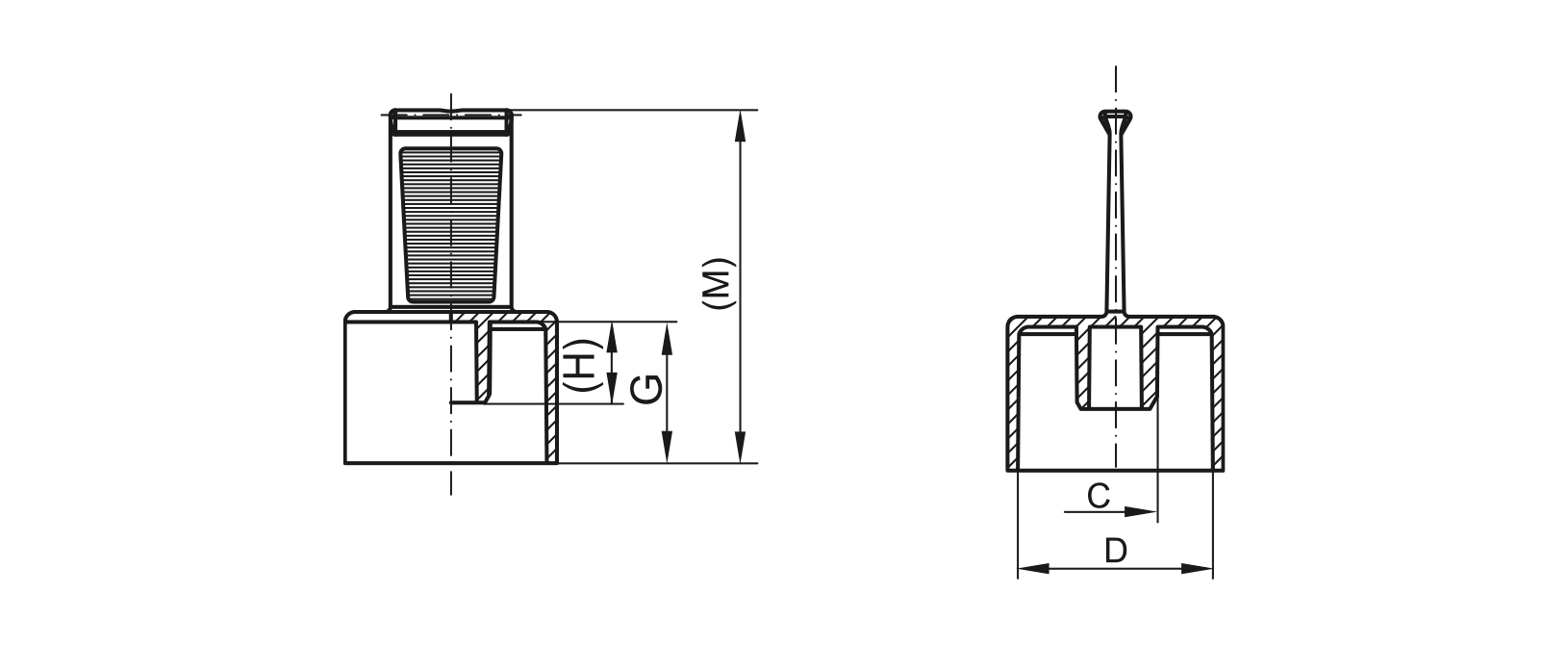

Drawing cable end cap - GPN 220
Grip Caps - GPN 220
The GPN 220 pipe end caps are suitable for the protection of pipes with o-rings. The cap protects the o-ring against damage without touching it and prevents the ingress of dirt. The handy grip tab enables easy removal.
- Pipe end caps for external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Two sustainable variants made from post-consumer recyclate available
100% Post-Consumer Recyclate
Recycling blend
Dimensions
Colour
orange
Material
PCR-PE / PE-LD
Technical data sheet
|
Internal application |
External application |
|||||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
C
|
D
|
G
|
H
|
M
|
CAD
|
Order no.
|
|
| GPN 220 / 0614 PCR-PE / PE-LD, orange | 6,1 | 19 | 14 | 8 | 35 | show | 22006140073 | |
|
|
||||||||
| GPN 220 / 0714 PCR-PE / PE-LD, orange | 7,6 | 19 | 14 | 8 | 35 | show | 22007140073 | |
|
|
||||||||
| GPN 220 / 0719* PCR-PE / PE-LD, orange | 8,6 | 19 | 18,7 | 8 | 39,7 | show | 22007190073 | |
|
|
||||||||
| GPN 220 / 0814 PCR-PE / PE-LD, orange | 8,2 | 19 | 14 | 8 | 35 | show | 22008140073 | |
|
|
||||||||
| GPN 220 / 0914 PCR-PE / PE-LD, orange | 9,1 | 19 | 14 | 8 | 35 | show | 22009140073 | |
|
|
||||||||
| GPN 220 / 1014 PCR-PE / PE-LD, orange | 10,2 | 19 | 14 | 8 | 35 | show | 22010140073 | |
|
|
||||||||
| GPN 220 / 1020 PCR-PE / PE-LD, orange | 10,3 | 19 | 19,5 | 8 | 40,5 | show | 22010200073 | |
|
|
||||||||
| GPN 220 / 1123 PCR-PE / PE-LD, orange | 11,7 | 22 | 23 | 11 | 44 | show | 22011230073 | |
|
|
||||||||
| GPN 220 / 1816 PCR-PE / PE-LD, orange | 18,4 | 28 | 16 | 13 | 37 | show | 22018160073 | |
|
|
||||||||
| GPN 220 / 1911* PCR-PE / PE-LD, orange | 18,5 | 30,1 | 10,5 | 10,5 | 30,8 | show | 22019110073 | |
|
|
||||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Quality advantages
More resource-saving.
Blend of post-consumer recyclate and virgin material
Saves time.
With ergonomically designed removal tab for easy handling.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our cleanroom on request.
Better.
Protection for braze-on port fittings. The cap is protecting the O-ring without touching it and provides limited sealing action against an ingress or outflow of fluids.
