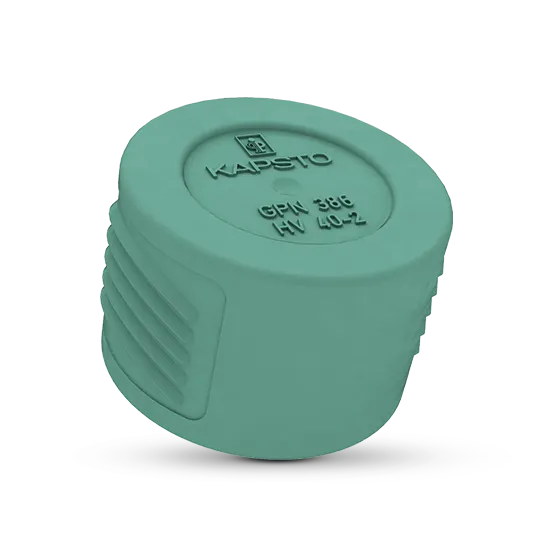

HV Connector Caps - GPN 386
The GPN 386 HV protection is suitable for use in parts and components for hybrid or electric vehicles. It protects plugs, e.g. in the area of batteries, DC/DC converters, on-board chargers, power strips and high-voltage distribution, against corrosion and mechanical damage and offers protection against splash water in accordance with protection class IPX4. The plug cover has non-slip gripping surfaces that enable quick removal, can be fitted on both sides and features a functional design as a registered design. The plastic used is made from post-consumer recycled material.
- HV protection for external protection
- Production in accordance with ISO 16232 possible in a specially equipped clean room
- The recyclate used has been awarded the Blue Angel label
This new series of standards is currently under development and will be available soon. The information provided is therefore provisional and subject to change. Our team will be happy to answer any questions you may have.
100% Post-Consumer Recyclate
Dimensions
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|
|
Item
|
A
|
C
|
H
|
M
|
CAD
|
Order no.
|
|
| Available soon GPN 386 HV 40-2 PCR-PP, turquoise blue | 35 | 22,1 | 8,5 | 23,4 | show | 38603010000 | |
|
|
|||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

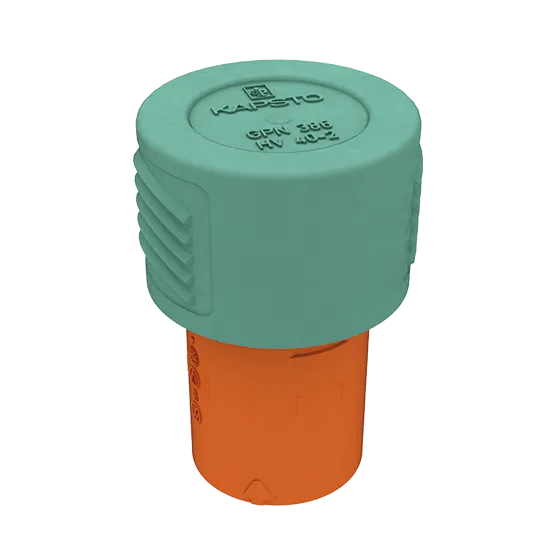

Application guide
|
Item
|
Contact connections
|
||
|---|---|---|---|
| Available soon GPN 386 HV 40-2 PCR-PP, turquoise blue | HPS |
|
|
The article consists of 98 % PCR-PP and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.
For these articles, colour deviations and black dots cannot be completely avoided in production and are permissible. We recommend carrying out functional tests before series production.
Quality advantages
More resource-saving.
Better fit.
Saves time.
Seals better.
Cleaner.
