VDA Sealing Plugs with tab - GPN 248
The VDA sealing plugs with tab GPN 248 are suitable for protecting the connection area of VDA quick-release couplings. The clamping on the upper edge offers a special seal and is done gently and securely on the inner sealing rings of the connector. The plastic used consists of post-consumer recyclate.
- VDA sealing plugs with tab for internal protection
- Production according to ISO 16232 possible in the specially equipped clean room
- The recyclate used has been awarded the Blue Angel
100% Post-Consumer Recyclate

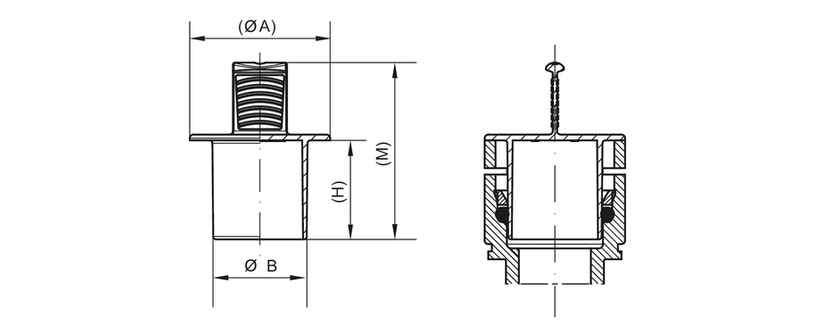

Dimensions
|
Applicable for
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
VDA coupling NW
|
A
|
B
|
H
|
M
|
CAD
|
Order no.
|
|
| New GPN 248 NW 6 PCR-PE, blue | 6 | 20,4 | 10 | 20,8 | 42,3 | show | 24800060000 | |
|
|
||||||||
| New GPN 248 NW 8 PCR-PE, blue | 8 | 24,4 | 12 | 22,1 | 43,6 | show | 24800080000 | |
|
|
||||||||
| New GPN 248 NW 12 PCR-PE, blue | 12 | 28,4 | 15,8 | 22,2 | 43,8 | show | 24800120000 | |
|
|
||||||||
| New GPN 248 NW 14 PCR-PE, blue | 14 | 27 | 17,2 | 21 | 42,6 | show | 24800140000 | |
|
|
||||||||
| New GPN 248 NW 16 PCR-PE, blue | 16 | 35 | 21,9 | 26,5 | 48,1 | show | 24800160000 | |
|
|
||||||||
| New GPN 248 NW 18 PCR-PE, recycling blue | 18 | 52 | 37,9 | 28,8 | 50,4 | show | 24800180000 | |
|
|
||||||||
| New GPN 248 NW 20 PCR-PE, blue | 20 | 39 | 26,1 | 26,6 | 48,2 | show | 24800200000 | |
|
|
||||||||
| New GPN 248 NW 26 PCR-PE, blue | 26 | 46 | 31,9 | 28,3 | 49,9 | show | 24800260000 | |
|
|
||||||||
| New GPN 248 NW 32 PCR-PE, blue | 32 | 52 | 37,9 | 28,8 | 50,4 | show | 24800320000 | |
|
|
||||||||
| New GPN 248 NW 35 PCR-PE, blue | 35 | 55,5 | 40,9 | 28,8 | 51,4 | show | 24800350000 | |
|
|
||||||||
| New GPN 248 NW 40 PCR-PE, blue | 40 | 60,5 | 45,9 | 32,3 | 53,9 | show | 24800400000 | |
|
|
||||||||
| New GPN 248 NW 45 PCR-PE, blue | 45 | 66,5 | 50,9 | 30,8 | 52,4 | show | 24800450000 | |
|
|
||||||||
| New GPN 248 NW 50 PCR-PE, blue | 50 | 71 | 55,9 | 32,1 | 53,7 | show | 24800500000 | |
|
|
||||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
The article consists of 98 % PCR-PE and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.
For these articles, colour deviations and black dots cannot be completely avoided in production and are permissible. We recommend carrying out functional tests before series production.
Quality advantages
More resource-saving.
Better fit.
Saves time.
