QC-Plugs - GPN 245 Type B
The GPN 245 Type B QC-plugs are suitable for the protection of SAE quick connector couplings, based on SAE J2044. Clamping is carried out gently and safely on the internal sealing rings of the connector. The QC-plugs are suitable for pressure testing within certain limits. The ring lug enables easy fitting and removal.
- QC-plugs for internal protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Also available as Type A without ring lug
100% Post-Consumer Recyclate
Recycling blend
Virgin material
Dimensions
Colour
blue
Material
PCR-PE
Technical data sheet
|
Applicable for SAE couplings
|

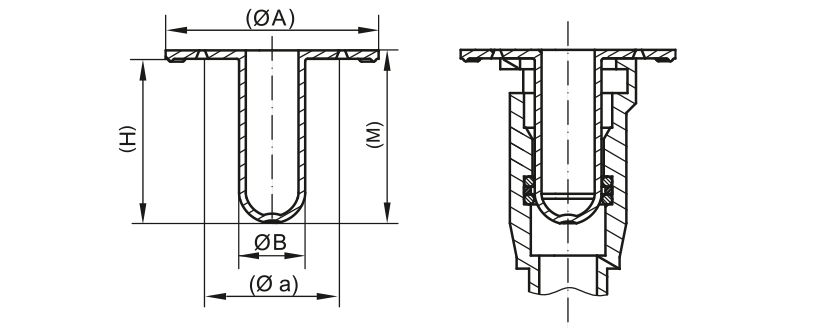

Dimensions
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Item
|
Applicable for SAE couplings NW
|
Applicable for SAE couplings NW inch
|
A
|
a
|
B
|
H
|
M
|
CAD
|
Order no.
|
|
| GPN 245 QCL 6,35 PCR-PE, blue | 6.35 | 1/4 | 31,6 | 20,6 | 6,35 | 25,3 | 26,8 | show | 2460635RB61 | |
|
|
||||||||||
| GPN 245 QCL 9,5 PCR-PE, blue | 9.5 | 3/8 | 30,8 | 16,8 | 9,5 | 25,8 | 27,3 | show | 2460095RB61 | |
|
|
||||||||||
| New GPN 245 QCL 10 PCR-PE, blue | 10 | - | 32,8 | 18,8 | 9,79 | 30 | 31,5 | show | 2460010RB61 | |
|
|
||||||||||
| GPN 245 QCL 12 PCR-PE, blue | 12 | - | 38 | 24 | 11,8 | 29,2 | 30,7 | show | 2460012RB61 | |
|
|
||||||||||
| New GPN 245 QCL 19,05 PCR-PE, blue | 19.05 | 3/4 | 50 | 36 | 18,8 | 28 | 29,5 | show | 2461905RB61 | |
|
|
||||||||||
| New GPN 245 QCL 25,4 PCR-PE, blue | 25.4 | 1 | 53,5 | 39,5 | 25,4 | 34 | 35,5 | show | 2462540RB61 | |
|
|
||||||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Quality advantages
Better fit.
Suitable for SAE quick connectors in accordance with SAE J2044
Seals better.
Suitable for pressure testing depending on the application.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our cleanroom on request.
Better.
Clamping is carried out gently and safely on the internal sealing rings of the connector.
