Application flange covers - GPN 655

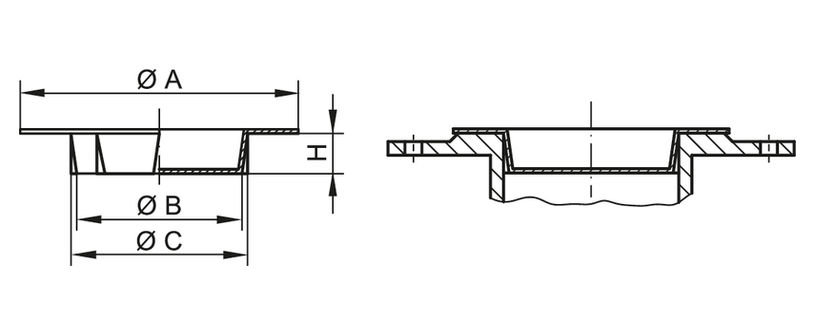

drawing flange cover - GPN 655 form B
Flange Covers - GPN 655 Type B
The GPN 655 Type B flange covers protect flanges in accordance with ANSI/ASME B 16.5 against damage and dirt, seal the opening and protect the sealing face of the flange fitting. The flange covers have additional clamping ribs on the conical shaft for accommodating larger tolerances.
- Flange covers for internal protection
- Also available in Type A without clamping ribs
- Two sustainable variants made from post-consumer recyclate available
100% Post-Consumer Recyclate
Recycling blend
Virgin material
Dimensions
Colour
yellow
Material
PCR-PE / PE-LD
Technical data sheet
|
Applicable for
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
NW mm
|
A
|
B
|
C
|
H
|
CAD
|
Order no.
|
|
| GPN 655 / 100-R PCR-PE / PE-LD, yellow | 100 | 190 | 106 | 108,5 | 20 | show | 65501000073 | |
|
|
||||||||
| GPN 655 / 125-R PCR-PE / PE-LD, yellow | 125 | 225 | 131,5 | 134 | 20 | show | 65501250073 | |
|
|
||||||||
| GPN 655 / 15-R PCR-PE / PE-LD, yellow | 15 | 75 | 16,7 | 17,8 | 10 | show | 65500150073 | |
|
|
||||||||
| GPN 655 / 150-R PCR-PE / PE-LD, yellow | 150 | 270 | 160 | 161,5 | 20 | show | 65501500073 | |
|
|
||||||||
| GPN 655 / 25-R PCR-PE / PE-LD, yellow | 25 | 100 | 27,3 | 28,8 | 15 | show | 65500250073 | |
|
|
||||||||
| GPN 655 / 32-R PCR-PE / PE-LD, yellow | 32 | 110 | 36,5 | 38,5 | 15 | show | 65500320073 | |
|
|
||||||||
| GPN 655 / 40-R PCR-PE / PE-LD, yellow | 40 | 125 | 42 | 44,4 | 15 | show | 65500400073 | |
|
|
||||||||
| GPN 655 / 50-R PCR-PE / PE-LD, yellow | 50 | 135 | 55 | 56,5 | 15 | show | 65500500073 | |
|
|
||||||||
| GPN 655 / 65-R PCR-PE / PE-LD, yellow | 65 | 122 | 68 | 71 | 20 | show | 65500650073 | |
|
|
||||||||
| GPN 655 / 80-R PCR-PE / PE-LD, yellow | 80 | 138 | 81 | 83,1 | 20 | show | 65500800073 | |
|
|
||||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Quality advantages
Better fit.
Protection for flanges in accordance with ANSI/ASME B 16.5.
More versatile.
Design B with additional clamping ribs for accomodating larger tolerances.
Better.
Closes the opening and protects the sealing face of the flange fitting.
More resource-saving.
Blend of post-consumer recyclate and virgin material
Downloads
Alternative standard series
