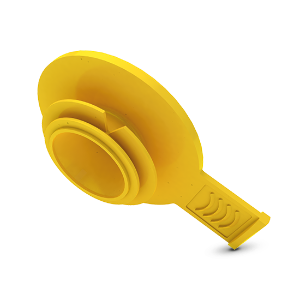

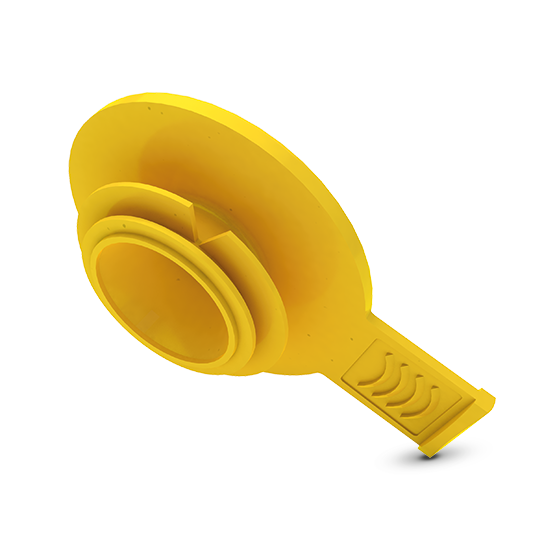

Grip Plugs - GPN 308

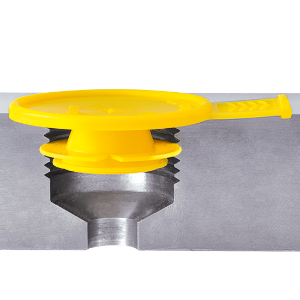

The GPN 308 grip plugs are suitable for the protection of bore holes and internal threads. The innovative grip tab in a patented tab design enables extremely fast removal. Individual sizes in the range protect several thread sizes and flexible ribs accommodate larger tolerances.
- Grip plugs for internal protection
- Two sustainable variants made from post-consumer recyclate available

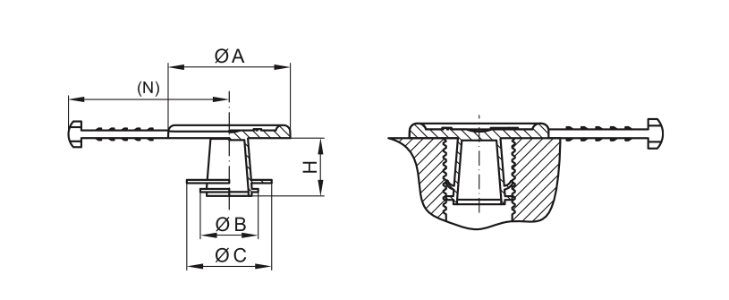

Dimensions
Dimensions
|
||||||||
---|---|---|---|---|---|---|---|---|
Item
|
A
|
B
|
C
|
H
|
N
|
CAD
|
Order no.
|
|
GPN 308 SL 132 PCR-PE / PE-LD, yellow | 19 | 9 | 13,2 | 9 | 25 | show | 30801320073 | |
|
||||||||
GPN 308 SL 165 PCR-PE / PE-LD, yellow | 22,7 | 12 | 16,5 | 7 | 27 | show | 30801650073 | |
|
||||||||
GPN 308 SL 195 PCR-PE / PE-LD, yellow | 30 | 15,5 | 19,5 | 8 | 31 | show | 30801950073 | |
|
||||||||
GPN 308 SL 238 PCR-PE / PE-LD, yellow | 34,3 | 19,3 | 23,8 | 9,5 | 32 | show | 30802380073 | |
|
||||||||
GPN 308 SL 276 PCR-PE / PE-LD, yellow | 40 | 22,5 | 27,6 | 9,5 | 35 | show | 30802760073 | |
|
||||||||
GPN 308 SL 345 PCR-PE / PE-LD, yellow | 45 | 29,9 | 34,5 | 10 | 38 | show | 30803450073 | |
|
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Application guide
Item
|
Pipe thread
|
Unified thread
|
metric standard thread
|
|
---|---|---|---|---|
GPN 308 SL 132 PCR-PE / PE-LD, yellow | 1/8 | 7/16 | M 10 | M 12 | |
GPN 308 SL 165 PCR-PE / PE-LD, yellow | 1/4 | 1/2 | 5/8 | 9/16 | M 14 | M 16 | |
GPN 308 SL 195 PCR-PE / PE-LD, yellow | 3/8 | 3/4 | M 18 | M 20 | |
GPN 308 SL 238 PCR-PE / PE-LD, yellow | 1/2 | 5/8 | 7/8 | M 22 | M 24 | |
GPN 308 SL 276 PCR-PE / PE-LD, yellow | 3/4 | 1 1/16 | 1 1/8 | M 26 | M 28 | |
GPN 308 SL 345 PCR-PE / PE-LD, yellow | 1 | 1 1/4 | 1 3/8 | M 30 | M 36 |
This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.
Quality advantages
Saves time.
More versatile.
Better.
More resource-saving.
Blend of post-consumer recyclate and virgin material
