Grip Plugs - GPN 310

The GPN 310 grip plugs are suitable for the protection of bore holes and internal threads. The handy tab facilitates handling as well as fitting and removal. Flexible ribs for accommodating large tolerances.


  • Grip plugs for internal protection
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

CAD for website
Colour
red
Material
PCR-PE / PE-LD
Technical data sheet
View prices and conditions directly online here and order even more easily.

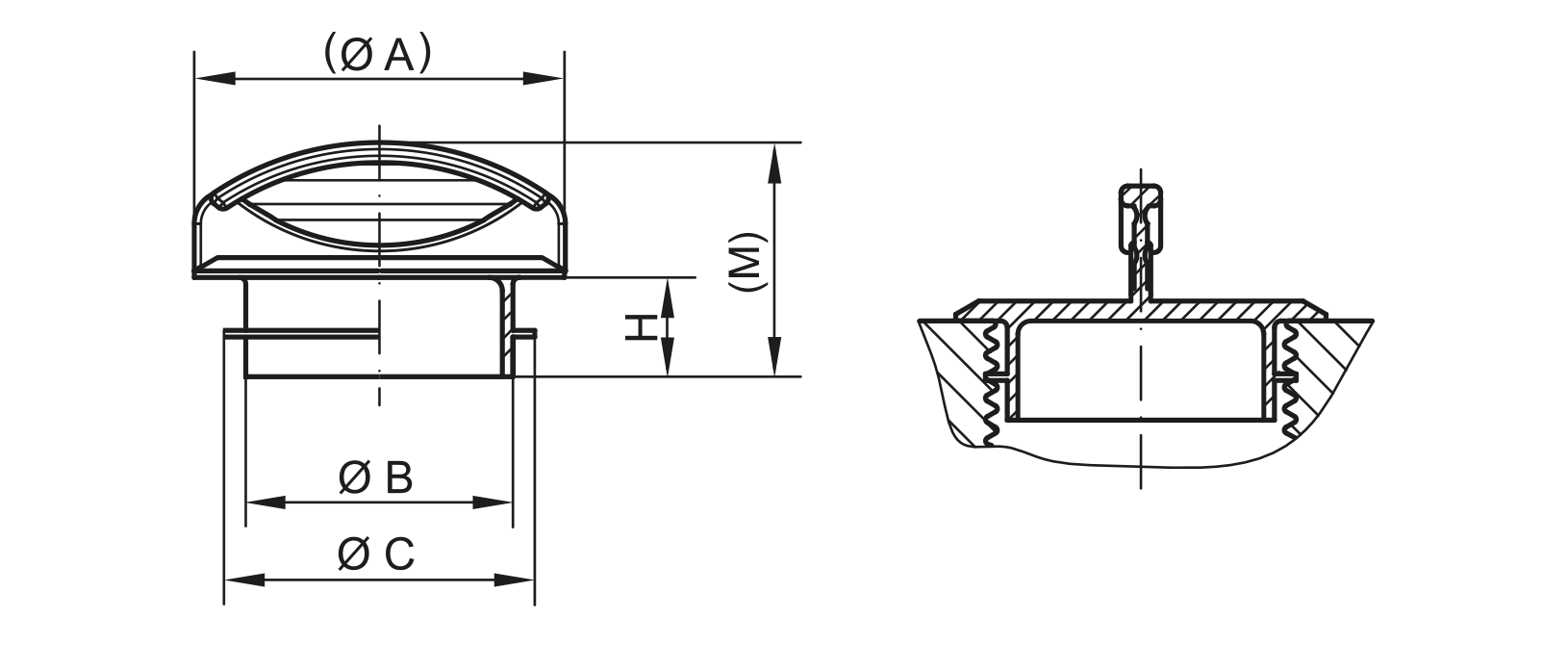

Dimensions
Item
A
B
C
H
M
CAD
Order no.
GPN 310 G 8 PCR-PE / PE-LD, red 14 4 7 5,5 15 31000080073
GPN 310 G 13 PCR-PE / PE-LD, red 15,6 8 13 5,5 14,7 31000130073
GPN 310 G 11 PCR-PE / PE-LD, red 16 5 10,5 5,5 15 31000110073
GPN 310 G 16 PCR-PE / PE-LD, red 19,6 11,4 16,5 5,5 15,2 31000160073
GPN 310 G 21 PCR-PE / PE-LD, red 22,8 15,6 21,3 7,5 17,1 31000210073
GPN 310 G 22 PCR-PE / PE-LD, red 25,7 17,3 22,6 7,5 18,5 31000220073
GPN 310 G 23 PCR-PE / PE-LD, red 28 20,2 23,5 7,5 17,7 31000230073
GPN 310 G 25 PCR-PE / PE-LD, red 30 20,6 25,5 7,5 19,7 31000250073
GPN 310 G 28 PCR-PE / PE-LD, red 35 22,5 27,5 7,5 19 31000280073
GPN 310 G 30 PCR-PE / PE-LD, red 38 24,5 29,7 7,5 19 31000300073

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

Application guide

for metric threads
for metric threads
Item
fine thread
Standard thread
Pipe thread
GPN 310 G 8 PCR-PE / PE-LD, red M 7
GPN 310 G 11 PCR-PE / PE-LD, red M 10 x 1 M 11
GPN 310 G 13 PCR-PE / PE-LD, red M 13 x 1 M 12 x 1,5 M 13 x 1,5 M 14 x 1,5 M 14 1/4
GPN 310 G 16 PCR-PE / PE-LD, red M 16 x 1 M 17 x 1,5 M 18 3/8
GPN 310 G 21 PCR-PE / PE-LD, red M 20 x 1 M 21 x 1 M 20 x 1,5 M 21 x 1,5 M 22 x 2 M 22 1/2
GPN 310 G 22 PCR-PE / PE-LD, red M 22 x 1 M 22 x 1,5 M 24 5/8
GPN 310 G 23 PCR-PE / PE-LD, red M 23 x 1 M 24 x 1,5 M 24 x 2
GPN 310 G 25 PCR-PE / PE-LD, red M 25 x 1 M 25 x 1,5 M 26 x 1,5 M 26 x 2 M 27 3/4
GPN 310 G 28 PCR-PE / PE-LD, red M 27 x 1 M 28 x 1,5 M 28 x 2 M 30
GPN 310 G 30 PCR-PE / PE-LD, red M 29 x 1 M 30 x 1,5 M 30 x 2 7/8

This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.
