MQS Contact Protection - GPN 363
The GPN 363 MQS contact protection protects MQS flat connector housings in the low-voltage range. The handy grip tab guarantees fast removal and the circumferential ribs enable an optimal clamping fit. The MQS contact protection offers protection against splashing water from all directions (IPX4) depending on the specific connector design and quality.
- MQS contact protection for internal protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Two sustainable variants made from post-consumer recyclate available
100% Post-Consumer Recyclate
Recycling blend
Virgin material

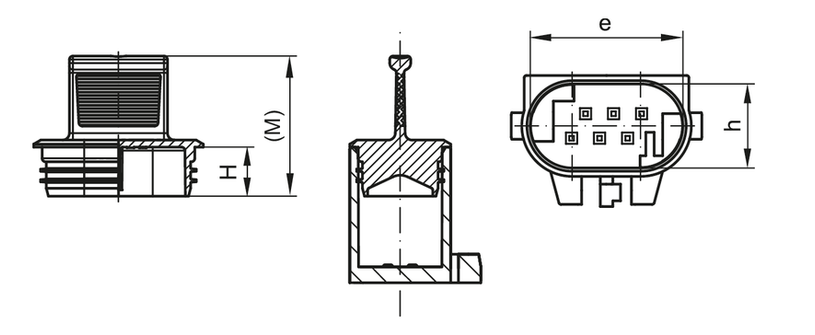

Dimensions
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|
|
Item
|
e
|
h
|
H
|
M
|
CAD
|
Order no.
|
|
| GPN 363 KS 0321 PCR-PE / PE-LD, yellow | 14,4 | 10,75 | 7 | 20 | show | 36303210073 | |
|
|
|||||||
| GPN 363 KS 0421 PCR-PE / PE-LD, yellow | 17,5 | 10,75 | 7 | 20 | show | 36304210073 | |
|
|
|||||||
| GPN 363 KS 0621 PCR-PE / PE-LD, yellow | 21,8 | 12 | 7 | 20 | show | 36306210073 | |
|
|
|||||||
| GPN 363 KS 0821 PCR-PE / PE-LD, yellow | 23,4 | 15,7 | 7 | 20 | show | 36308210073 | |
|
|
|||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Application guide
|
Item
|
Contact connections
|
||
|---|---|---|---|
| GPN 363 KS 0321 PCR-PE / PE-LD, yellow | MQS 0.63 |
|
|
| GPN 363 KS 0421 PCR-PE / PE-LD, yellow | MQS 0.63 |
|
|
| GPN 363 KS 0621 PCR-PE / PE-LD, yellow | MQS 0.63 |
|
|
| GPN 363 KS 0821 PCR-PE / PE-LD, yellow | MQS 0.63 |
|
|
The contact protector GPN 363 was developed for special MQS connector housings listed in the application table. The contact protector is also suitable for other connections.
** Related to Pöppelmann sample connector, tested according to DIN 40050. Please note the information in chapter 3 Materials and applications.
Quality advantages
Better fit.
Saves time.
Seals better.
Cleaner.
Better.
More resource-saving.
Blend of post-consumer recyclate and virgin material
