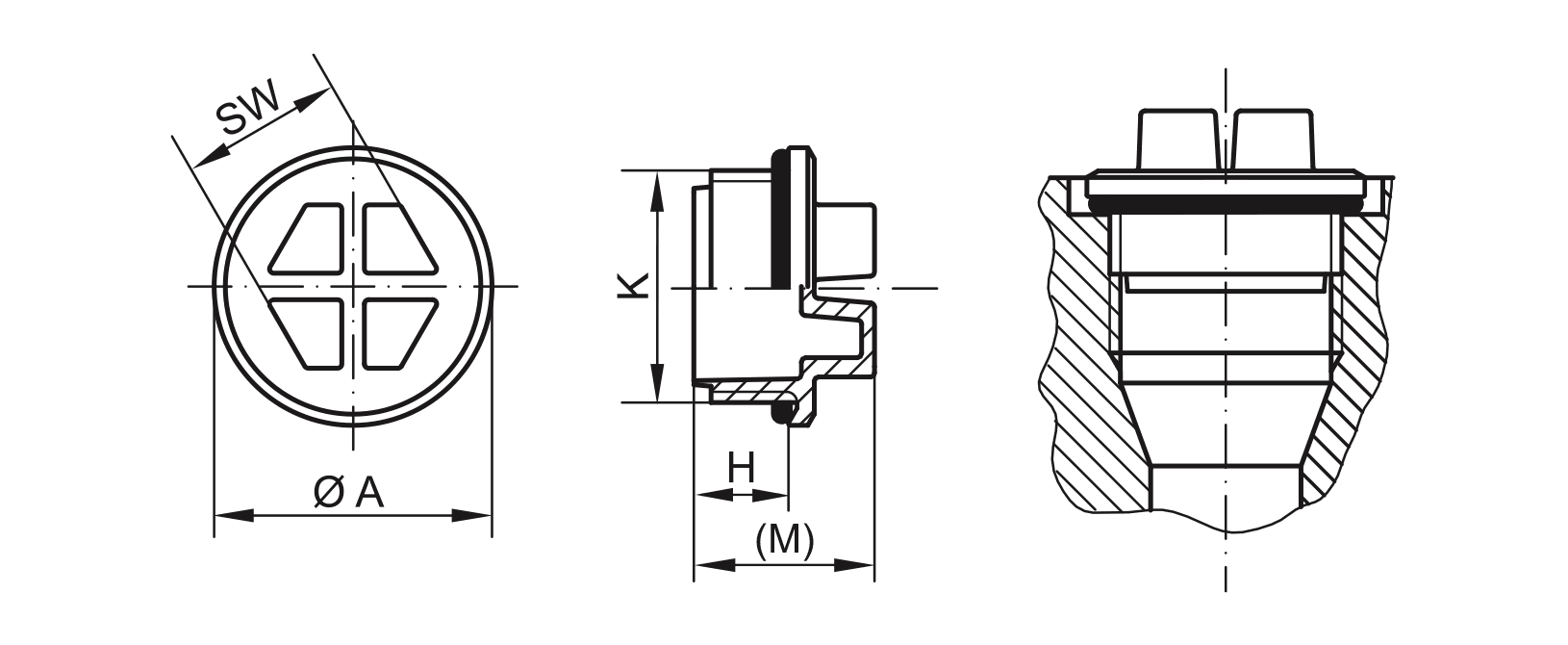

Drawing sealing plug with O-ring - GPN 738

Sealing Screw Plugs with O-Ring - GPN 738

The GPN 738 sealing screw plugs with O-ring are suitable for closing internal threads as per DIN 3852-1 and ISO 11926 and are particularly well suited for increased demands on leak tightness. The sturdy material is of high quality and is particularly impact-resistant. Coupled with the O-ring, the circumferential sealing lip, which is designed without a mould seam, prevents the ingress or leaking of liquids within certain limits. To be fitted with a screwdriver or wrench.

Sealing plugs with O-ring for internal protection

more advantages

Virgin material

Dimensions

Colour

yellow

Material

PA 6

Technical data sheet

show

View prices and conditions directly online here and order even more easily.

	Applicable for	Dimensions
Item	K	A	H	M	SW	CAD	Order no.
GPN 738 1 1/16 - 12 UN PA 6, yellow	1 1/16 - 12 UN	37,85	15	25	19	show	73826710000

GPN 738 1 5/16 - 12 UN PA 6, yellow	1 5/16 - 12 UN	44,8	15	25	24	show	73826720000

GPN 738 1 5/8 - 12 UN PA 6, yellow	1 5/8 - 12 UN	55,8	15	26	30	show	73826730000

GPN 738 1 7/8 - 12 UN PA 6, yellow	1 7/8 - 12 UN	63,3	15	26	30	show	73826740000

GPN 738 3/4 - 16 UNF PA 6, yellow	3/4 - 16 UNF	26,9	11	21	13	show	73826690000

GPN 738 7/16 - 20 UNF PA 6, yellow	7/16 - 20 UNF	17,4	9	16	10	show	73826670000

GPN 738 7/8 - 14 UNF PA 6, yellow	7/8 - 14 UNF	30,4	13	23	15	show	73826700000

GPN 738 9/16 - 18 UNF PA 6, yellow	9/16 - 18 UNF	21,4	10	18	10	show	73826680000

GPN 738 M 10 x 1 PA 6, yellow	M 10 x 1	15,4	8	15	7	show	73810100000

GPN 738 M 12 x 1,5 PA 6, yellow	M 12 x 1,5	18,4	9	16	10	show	73812150000

GPN 738 M 14 x 1,5 PA 6, yellow	M 14 x 1,5	20,4	9	17	10	show	73814150000

GPN 738 M 16 x 1,5 PA 6, yellow	M 16 x 1,5	23,4	10	20	13	show	73816150000

GPN 738 M 18 x 1,5 PA 6, yellow	M 18 x 1,5	25,4	11	21	13	show	73818150000

GPN 738 M 22 x 1,5 PA 6, yellow	M 22 x 1,5	28,4	12	22	15	show	73822150000

GPN 738 M 27 x 2 PA 6, yellow	M 27 x 2	33,35	15	25	19	show	73827200000

GPN 738 M 33 x 2 PA 6, yellow	M 33 x 2	42,3	15	25	24	show	73833200000

GPN 738 M 42 x 2 PA 6, yellow	M 42 x 2	51,3	15	26	24	show	73842200000

GPN 738 M 48 x 2 PA 6, yellow	M 48 x 2	56,3	17	28	30	show	73848200000

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

Engraving complies with GPN 736 series.

Quality advantages

Better fit.

Suitable for internal threads in accordance with DIN 3852-1, ISO 11926.

Seals better.

The circumferential sealing lip (no mould-parting feature) and the O-ring prevent the penetration or leaking of liquids depending on the application.

More robust.

Made from premium impact-resistant polyamide.

Better.

Same design as GPN 736 but fitted with O-ring. For high leak proof requirements, e.g. untreated sealing surfaces, high process temperatures, long process times, and inreased pressure inside the component.
