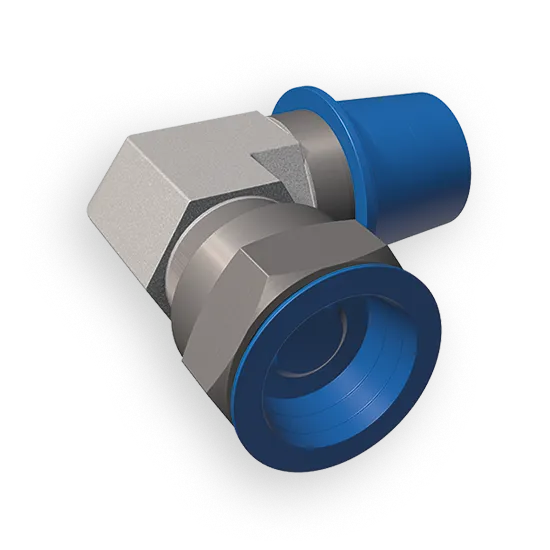

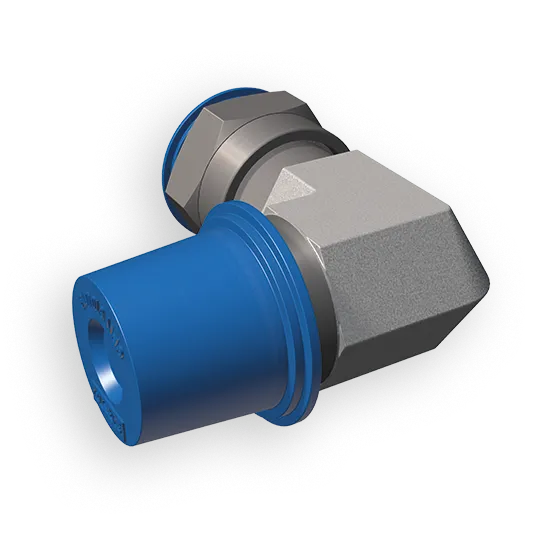

Application Universal protection plug - GPN 610

Drawing universal protection cap - GPN 610

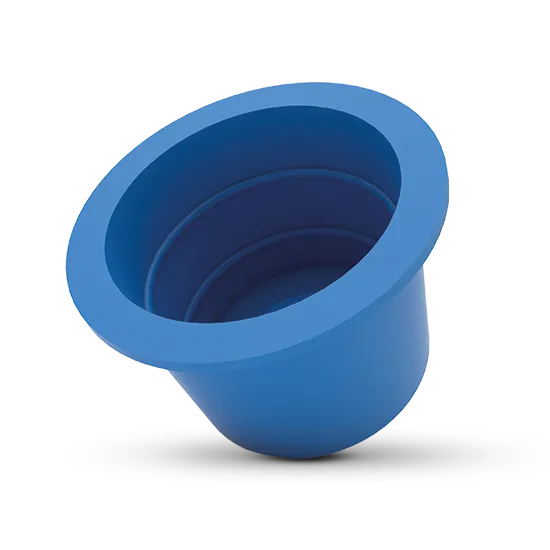

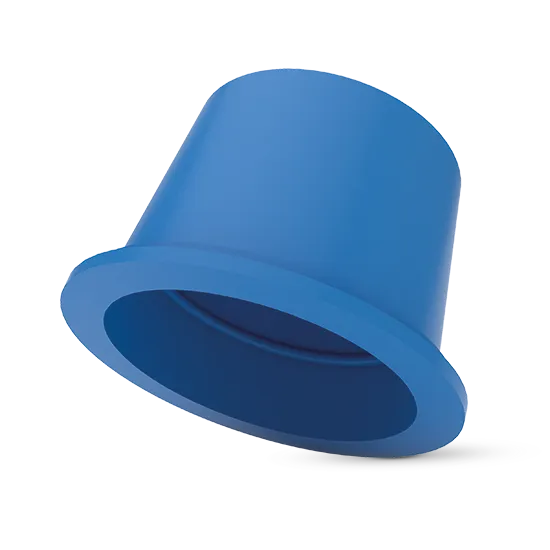

Universal Protection - GPN 610

The GPN 610 universal protection can be used as a cap or a plug and protects bore holes and openings as well as bolts and various metric threads and pipe threads. The conical design is ideal for accommodating tolerances.

Universal protection for internal and external protection
Production in accordance with ISO 16232 in a specially designed cleanroom possible
Two sustainable variants made from post-consumer recyclate available

more advantages

100% Post-Consumer Recyclate

Recycling blend

Virgin material

Dimensions

Colour

yellow

Material

PCR-PE / PE-LD

Technical data sheet

show

View prices and conditions directly online here and order even more easily.

		Internal application		External application			Internal application
Item	A	B	C	D	E	G	H	CAD	Order no.
GPN 610 U 1 PCR-PE / PE-LD, yellow	10	4,4	6,2	4,6	2,8	10,8	10	show	61000010073

GPN 610 U 2 PCR-PE / PE-LD, yellow	11	6	7,8	6,2	4,4	10,8	10	show	61000020073

GPN 610 U 3 PCR-PE / PE-LD, yellow	13	7,6	9,4	7,8	6	10	10	show	61000030073

GPN 610 U 4 PCR-PE / PE-LD, yellow	14	8,4	10,2	8,6	6,8	10	10	show	61000040073

GPN 610 U 5 PCR-PE / PE-LD, yellow	14	9,2	11	9,3	7,5	10	10	show	61000050073

GPN 610 U 6 PCR-PE / PE-LD, yellow	15	9,9	11,7	10,1	8,3	10	10	show	61000060073

GPN 610 U 7 PCR-PE / PE-LD, yellow	16	10,6	12,4	10,8	9	10	10	show	61000070073

GPN 610 U 8 PCR-PE / PE-LD, yellow	17	11,3	13,1	11,2	9,5	10	10	show	61000080073

GPN 610 U 9 PCR-PE / PE-LD, yellow	18	12,2	14,1	12,5	10,4	12	12	show	61000090073

GPN 610 U 10 PCR-PE / PE-LD, yellow	18	12,5	14,6	13,3	11,2	12	12	show	61000100073

GPN 610 U 11 PCR-PE / PE-LD, yellow	19	13,5	15,6	14	11,9	12	12	show	61000110073

GPN 610 U 12 PCR-PE / PE-LD, yellow	19	14	16,1	14,5	12,4	12	12	show	61000120073

GPN 610 U 13 PCR-PE / PE-LD, yellow	21	15	17	15,5	13,2	13	13	show	61000130073

GPN 610 U 14 PCR-PE / PE-LD, yellow	22	16,3	18,6	17	14,7	13	13	show	61000140073

GPN 610 U 15 PCR-PE / PE-LD, yellow	22	17,3	19,4	17,6	15,5	13	13	show	61000150073

GPN 610 U 16 PCR-PE / PE-LD, yellow	24	17,5	20,1	18,5	15,9	15	15	show	61000160073

GPN 610 U 17 PCR-PE / PE-LD, yellow	25	18,6	21	19,4	16,8	15	15	show	61000170073

GPN 610 U 18 PCR-PE / PE-LD, yellow	25	19	21,6	20	17,4	15	15	show	61000180073

GPN 610 U 19 PCR-PE / PE-LD, yellow	27	20,4	23,2	21,6	18,8	16	16	show	61000190073

GPN 610 U 20 PCR-PE / PE-LD, yellow	28	20,7	23,5	21,9	19,1	16	16	show	61000200073

GPN 610 U 21 PCR-PE / PE-LD, yellow	29	22,2	24,8	23	20,4	16	16	show	61000210073

GPN 610 U 22 PCR-PE / PE-LD, yellow	30	23,2	26,3	24,4	21,2	18	18	show	61000220073

GPN 610 U 23 PCR-PE / PE-LD, yellow	32	24,5	27,8	26,2	22,9	19	19	show	61000230073

GPN 610 U 24 PCR-PE / PE-LD, yellow	33	25,5	29,2	27,7	23,7	19	19	show	61000240073

GPN 610 U 241 PCR-PE / PE-LD, yellow	33	26,4	30,4	28,9	24,9	19	19	show	61002410073

GPN 610 U 25 PCR-PE / PE-LD, yellow	35	27,8	31,1	29,5	26,2	19	19	show	61000250073

GPN 610 U 26 PCR-PE / PE-LD, yellow	37	29,8	32,6	31,1	28,3	16	16	show	61000260073

GPN 610 U 27 PCR-PE / PE-LD, yellow	38	31,4	35,1	32,8	29,7	21	21	show	61000270073

GPN 610 U 28 PCR-PE / PE-LD, yellow	41	33,3	37,1	35,5	31,7	22	22	show	61000280073

GPN 610 U 29 PCR-PE / PE-LD, yellow	45	36,7	40,5	39	35,2	22	22	show	61000290073

GPN 610 U 291 PCR-PE / PE-LD, yellow	45	38,4	40,7	39,2	36,9	13	13	show	61002910073

GPN 610 U 30 PCR-PE / PE-LD, yellow	48	38,2	43	41,4	36,6	23	23	show	61000300073

GPN 610 U 31 PCR-PE / PE-LD, yellow	48	39,6	42,9	41,3	38	19	19	show	61000310073

GPN 610 U 32 PCR-PE / PE-LD, yellow	49	41,4	44,7	43	39,7	19	19	show	61000320073

GPN 610 U 33 PCR-PE / PE-LD, yellow	51	44,4	47,7	46,1	42,8	19	19	show	61000330073

GPN 610 U 34 PCR-PE / PE-LD, yellow	54	45,2	49,2	48	43,6	25	25	show	61000340073

GPN 610 U 35 PCR-PE / PE-LD, yellow	55	46,6	50,5	48,7	45,2	25	25	show	61000350073

GPN 610 U 36 PCR-PE / PE-LD, yellow	62	52,5	56,9	55,2	50,8	25	25	show	61000360073

GPN 610 U 37 PCR-PE / PE-LD, yellow	65	54	59,3	57,8	52,5	25	25	show	61000370073

GPN 610 U 38 PCR-PE / PE-LD, yellow	65	54,2	58,6	57	52,6	25	25	show	61000380073

GPN 610 U 39 PCR-PE / PE-LD, yellow	67	58,8	62,8	61,1	56,7	25	25	show	61000390073

GPN 610 U 40 PCR-PE / PE-LD, yellow	71	60,7	67,1	64,3	57,5	28,5	29	show	61000400073

GPN 610 U 41 PCR-PE / PE-LD, yellow	75	67,1	70,4	68,7	65,4	19	19	show	61000410073

GPN 610 U 42 PCR-PE / PE-LD, yellow	83	72,4	75,7	74,1	70,8	19	19	show	61000420073

GPN 610 U 43 PCR-PE / PE-LD, yellow	92	84,5	87,8	85	82,4	18,5	19	show	61000430073

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

Application guide

		for metric threads									for metric threads		for metric threads
Item	Outdoor application Fine thread				MF outdoor		External application Standard thread	Outdoor application Pipe thread	Internal application fine threads								Internal application Pipe thread
GPN 610 U 15 PCR-PE / PE-LD, yellow								G 3/8					M 20 x 1,5					G 1/2
GPN 610 U 34 PCR-PE / PE-LD, yellow													M 50 x 1,5	M 50 x 2		M 52 x 4
GPN 610 U 35 PCR-PE / PE-LD, yellow								G 1 1/2			M 50 x 1		M 50 x 1,5		M 52 x 3		M 56
GPN 610 U 43 PCR-PE / PE-LD, yellow															M 90 x 3
GPN 610 U 41 PCR-PE / PE-LD, yellow											M 70 x 1		M 70 x 1,5		M 72 x 3
GPN 610 U 3 PCR-PE / PE-LD, yellow							M 7				M 9,5 x 1	M 10 x 1,25					M 10	G 1/8
GPN 610 U 4 PCR-PE / PE-LD, yellow		M 7,5 x 1M 8 x 1					M 8	G 1/16			M 10,5 x 1						M 11
GPN 610 U 5 PCR-PE / PE-LD, yellow		M 8,5 x 1									M 11 x 1		M 12 x 1,5				M 12
GPN 610 U 6 PCR-PE / PE-LD, yellow		M 9 x 1 M 9,5 x 1					M 9				M 12 x 1	M 12 x 1,25
GPN 610 U 7 PCR-PE / PE-LD, yellow		M 10 x 1					M 10	G 1/8			M 12,5 x 1						M 14	G 1/4
GPN 610 U 8 PCR-PE / PE-LD, yellow		M 10,5 x 1									M 13,5 x 1		M 14 x 1,5
GPN 610 U 9 PCR-PE / PE-LD, yellow		M 12 x 1	M 12 x 1,5				M 12				M 14 x 1 \| M 15 x 1		M 15 x 1,5
GPN 610 U 10 PCR-PE / PE-LD, yellow		M 12,5 x 1									M 14,5 x 1						M 16
GPN 610 U 11 PCR-PE / PE-LD, yellow		M 13 x 1	M 13 x 1,5					G 1/4			M 16 x 1		M 16 x 1,5	M 17 x 2
GPN 610 U 12 PCR-PE / PE-LD, yellow		M 13,5 x 1											M 17 x 1,5				M 18	G 3/8
GPN 610 U 13 PCR-PE / PE-LD, yellow		M 14 x 1 M 14,5 x 1	M 14 x 1,5				M 14				M 17 x 1		M 18 x 1,5
GPN 610 U 14 PCR-PE / PE-LD, yellow		M 16 x 1	M 16 x 1,5				M 16						M 19 x 1,5	M 20 x 2			M 20
GPN 610 U 16 PCR-PE / PE-LD, yellow		M 17 x 1	M 17 x 1,5	M 17 x 2							M 20 x 1			M 21 x 2			M 22	G 1/2
GPN 610 U 17 PCR-PE / PE-LD, yellow		M 18 x 1	M 18 x 1,5	M 18 x 2			M 18				M 21 x 1			M 22 x 2
GPN 610 U 18 PCR-PE / PE-LD, yellow		M 19 x 1	M 19 x 1,5	M 19 x 2									M 22 x 1,5				M 24	G 5/8
GPN 610 U 19 PCR-PE / PE-LD, yellow		M 20 x 1	M 20 x 1,5	M 20 x 2			M 20				M 23 x 1			M 24 x 2
GPN 610 U 20 PCR-PE / PE-LD, yellow		M 21 x 1	M 21 x 1,5	M 21 x 2				G 1/2					M 24 x 1,5
GPN 610 U 21 PCR-PE / PE-LD, yellow		M 22 x 1	M 22 x 1,5	M 22 x 2			M 22						M 25 x 1,5	M 26 x 2			M 27
GPN 610 U 22 PCR-PE / PE-LD, yellow		M 23 x 1	M 23 x 1,5	M 23 x 2				G 5/8			M 26 x 1			M 27 x 2	M 28 x 3			G 3/4
GPN 610 U 23 PCR-PE / PE-LD, yellow		M 25 x 1	M 25 x 1,5	M 25 x 2							M 27 x 1		M 28 x 1,5				M 30
GPN 610 U 24 PCR-PE / PE-LD, yellow		M 26 x 1	M 26 x 1,5	M 26 x 2				G 3/4			M 29 x 1		M 29 x 1,5	M 30 x 2				G 7/8
GPN 610 U 241 PCR-PE / PE-LD, yellow		M 27 x 1	M 27 x 1,5	M 27 x 2			M 27				M 30 x 1		M 30 x 1,5		M 32 x 3		M 33
GPN 610 U 25 PCR-PE / PE-LD, yellow		M 28 x 1	M 28 x 1,5	M 28 x 2	M 28 x 3						M 31 x 1		M 31 x 1,5	M 32 x2			M 33	G 1
GPN 610 U 26 PCR-PE / PE-LD, yellow		M 30 x 1	M 30 x 1,5	M 30 x 2	M 30 x 3		M 30	G 7/8			M 32 x 1		M 33 x 1,5				M 36
GPN 610 U 27 PCR-PE / PE-LD, yellow		M 32 x 1	M 32 x 1,5	M 32 x 2	M 32 x 3						M 34 x 1		M 35 x 1,5	M 36 x 2
GPN 610 U 28 PCR-PE / PE-LD, yellow		M 34 x 1	M 34 x 1,5	M 34 x 2	M 34 x 3			G 1			M 36 x 1		M 37 x 1,5		M 39 x 3		M 39	G 1 1/8
GPN 610 U 29 PCR-PE / PE-LD, yellow		M 37 x 1	M 37 x 1,5	M 37 x 2				G 1 1/8			M 40 x 1		M 40 x 1,5		M 42 x 3			G 1 1/4
GPN 610 U 291 PCR-PE / PE-LD, yellow		M 38 x 1	M 38 x 1,5	M 38 x 2	M 38 x 3									M 42 x 2
GPN 610 U 30 PCR-PE / PE-LD, yellow		M 39 x 1	M 39 x 1,5	M 39 x 2	M 39 x 3		M 39				M 42 x 1		M 42 x 1,5			M 45 x 4	M 45
GPN 610 U 31 PCR-PE / PE-LD, yellow		M 40 x 1	M 40 x 1,5	M 40 x 2	M 40 x 3	M 40 x 4					M 42 x 1				M 45 x 3			G 1 3/8
GPN 610 U 32 PCR-PE / PE-LD, yellow		M 42 x 1	M 42 x 1,5	M 42 x 2	M 42 x 3	M 42 x 4	M 42	G 1 1/4			M 44 x 1		M 45 x 1,5			M 48 x 4
GPN 610 U 33 PCR-PE / PE-LD, yellow		M 45 x 1	M 45 x 1,5	M 45 x 2	M 45 x 3	M 45 x 4	M 45	G 1 3/8					M 48 x 1,5	M 48 x 2	M 50 x 3		M 52
GPN 610 U 36 PCR-PE / PE-LD, yellow		M 52 x 1	M 52 x 1,5	M 52 x 2	M 52 x 3	M 52 x 4	M 52	G 1 3/4			M 56 x 1		M 56 x 1,5		M 58 x 3		M60
GPN 610 U 37 PCR-PE / PE-LD, yellow		M 55 x 1	M 55 x 1,5	M 55 x 2	M 55 x 3	M 55 x 4					M 58 x 1		M 58 x 1,5		M 60 x 3		M 64	G 2
GPN 610 U 38 PCR-PE / PE-LD, yellow		M 55 x 1	M 55 x 1,5	M 55 x 2	M 55 x 3	M 55 x 4					M 58 x 1		M 58 x 1,5		M 60 x 3		M 64	G 2
GPN 610 U 39 PCR-PE / PE-LD, yellow		M 60 x 1	M 60 x 1,5	M 60 x 2	M 60 x 3	M 60 x 4		G 2			M 62 x 1		M 62 x 1,5		M 64 x 3		M 68
GPN 610 U 40 PCR-PE / PE-LD, yellow		M 62 x 1	M 62 x 1,5	M 62 x 2	M 62 x 3	M 62 x 4	M 62				M 65 x 1		M 65 x 1,5			M 68 x 4
GPN 610 U 42 PCR-PE / PE-LD, yellow		M 72 x 1	M 72 x 1, 5	M 72 x 2	M 72 x 3	M 72 x 4					M 75 x 1		M 76 x 1,5
GPN 610 U 1 PCR-PE / PE-LD, yellow	M 4 x 0,5						M 4		M 6 x 0,5	M 6 x 0,75							M 6
GPN 610 U 2 PCR-PE / PE-LD, yellow	M 5 x 0,5						M 5				M 8 x 1						M 8

This application table represents guide values. We will be happy to send you free trial samples. For bolts, pins and tube ends please select according to the functional dimensions D and E.

This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.
