TEKU® PRODUKTPROGRAMM
TP | Cultivation and marketing trays
Trouble-free denesting from the stack
With evenly-formed contours and reliable stacking TEKU® trays are easier to separate quickly.
Request individual advice
Technical data
|
|
|
||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Item
|
A
|
B
|
C
|
|
Trays per CC shelf
|
|
|
|
||||||||||||||||||
|

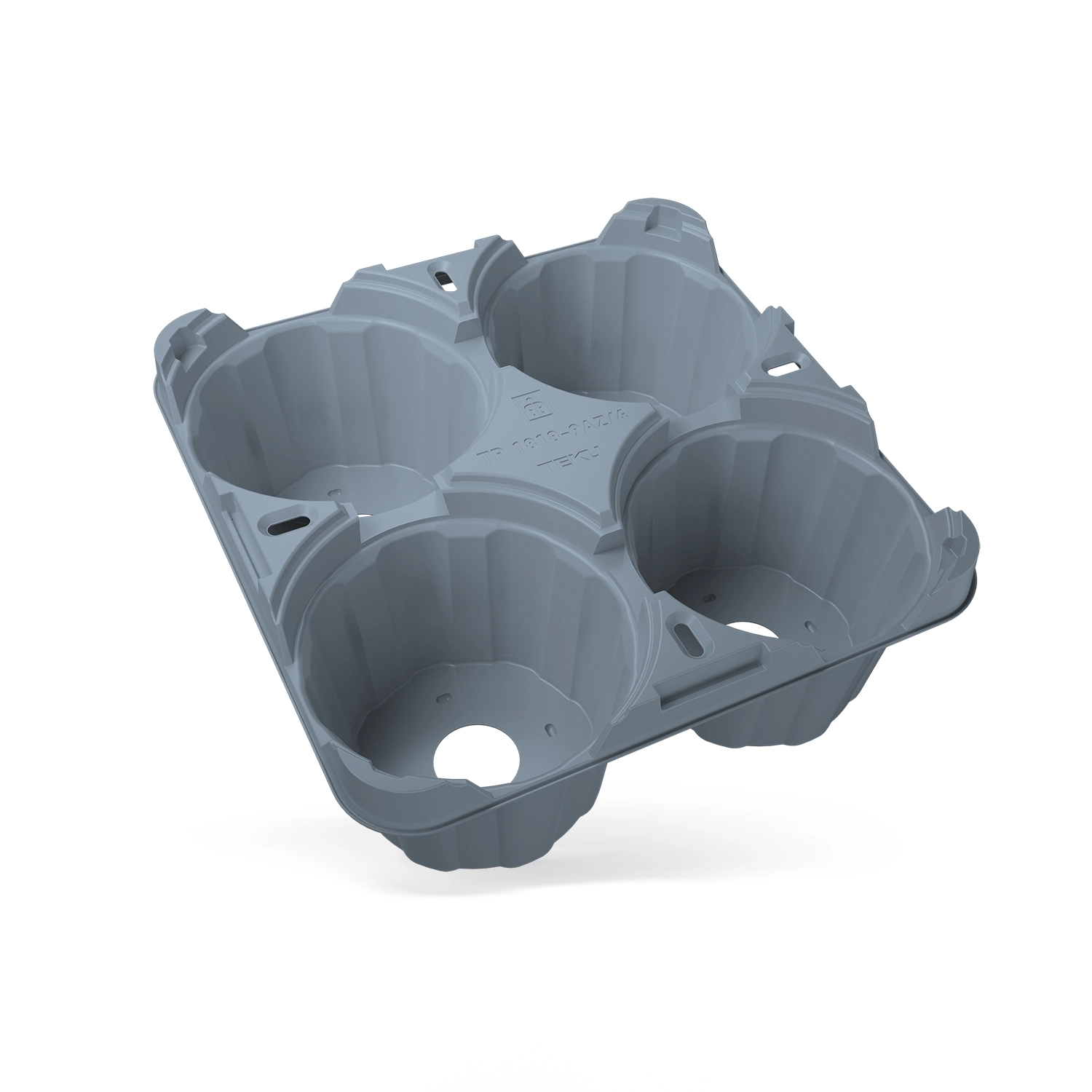

TP 1818-9 AZ/4** |
18,3 | 18,3 | 7,0 | 320 ml | 4 | 21 | 84 | show | show | |||||||||||||||||
VCD 9,5
VCG 9
VTG 9
MXC 9 |
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|

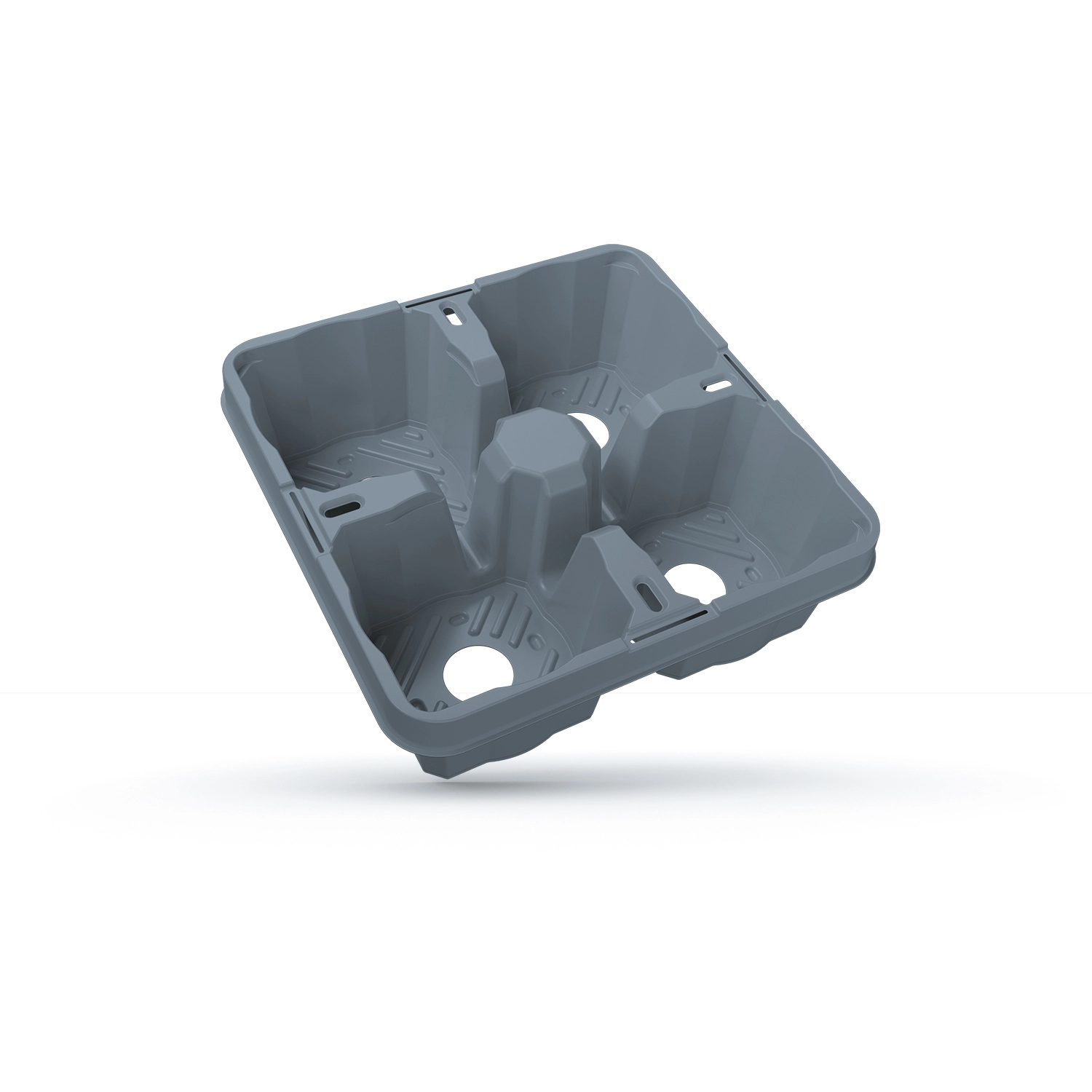

TP 1818-9x9/4* |
18,3 | 18,3 | 5,7 | 4 | 21 | 84 | show | show | ||||||||||||||||||
VQB 9x9x8
VQB 9x9x9,5
VCG 9
VCH 9
VCH 9 F
VCD 9,5
VCC 10 VOL
MQD 9x9x9,5
MQD 9x9x10
MXC 9
VCO 9 |
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|

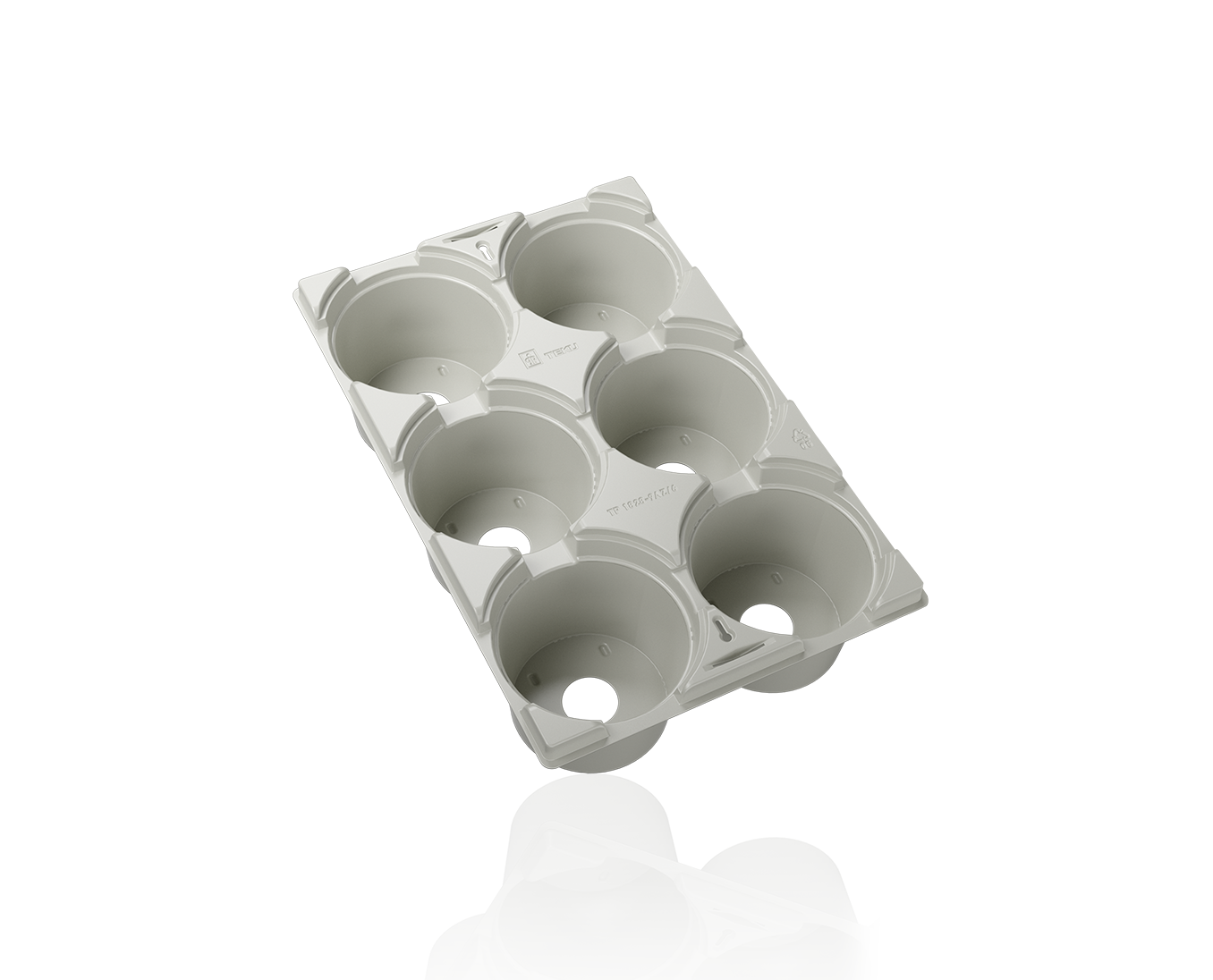

TP 1828-9 AZ/6** |
27,8 | 18,1 | 7,1 | 320 ml | 6 | 14 | 84 | show | show | |||||||||||||||||
VCG 9
VTG 9
MXC 9 |
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|

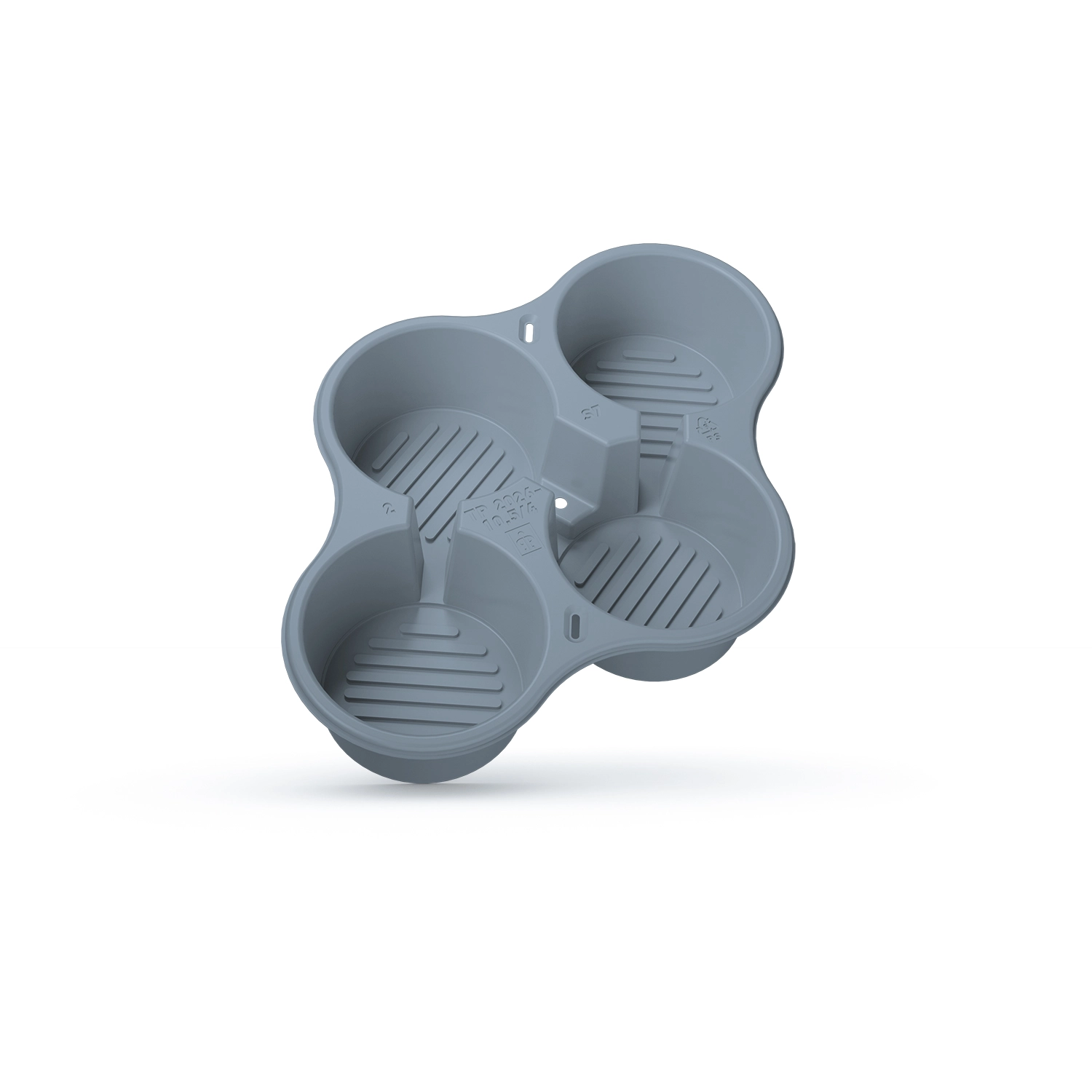

TP 2026-10,5/4 |
26,0 | 20,0 | 5,1 | 4 | 18 | 72 | show | show | ||||||||||||||||||
VCG 10
VCH 10
VTG 10
VCG 10,5
VTG 10,5
VCG 10,5 K
VCH 11 VOL
VCK 11 VOL
MXC 10
MXC 10,5 |
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|

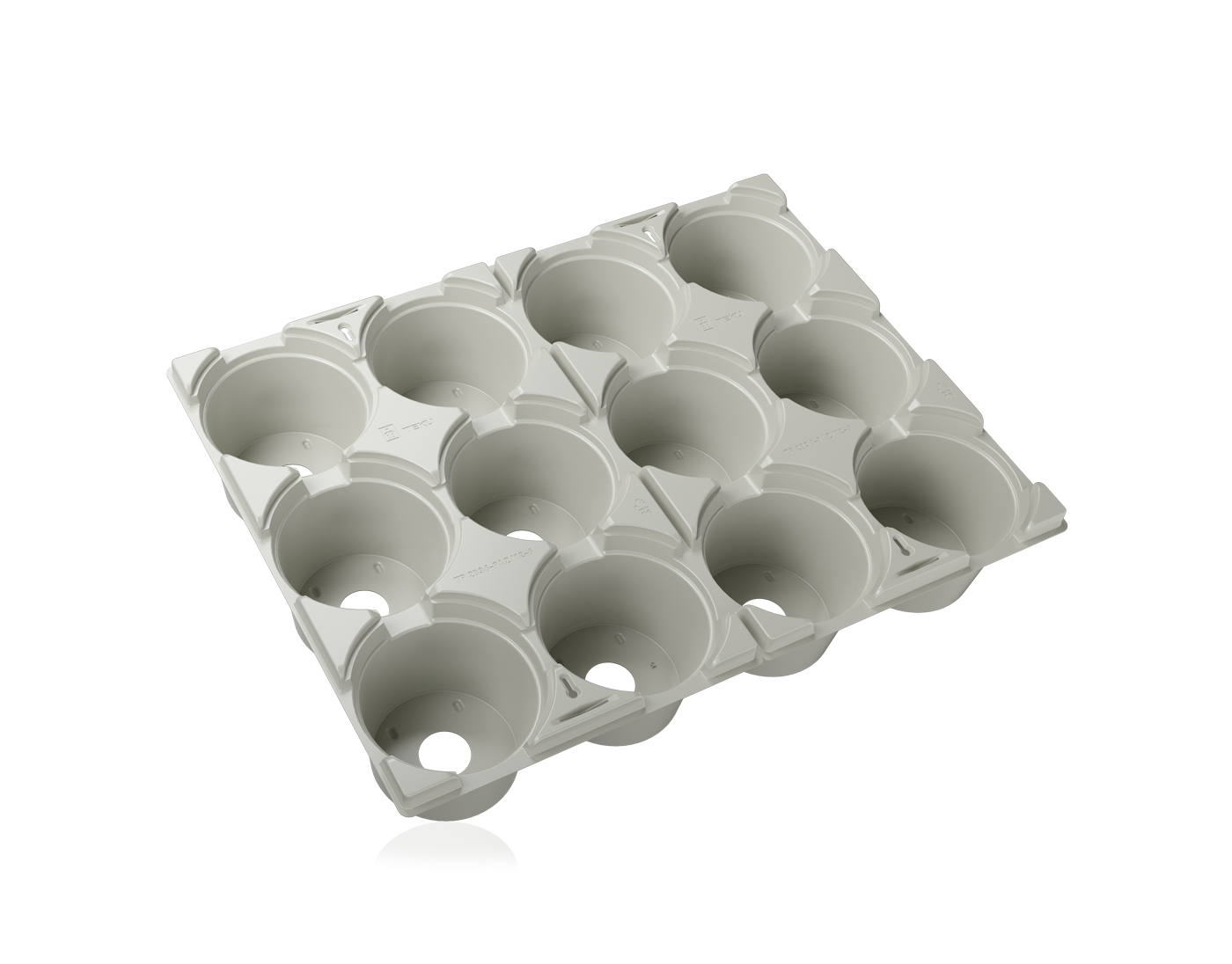

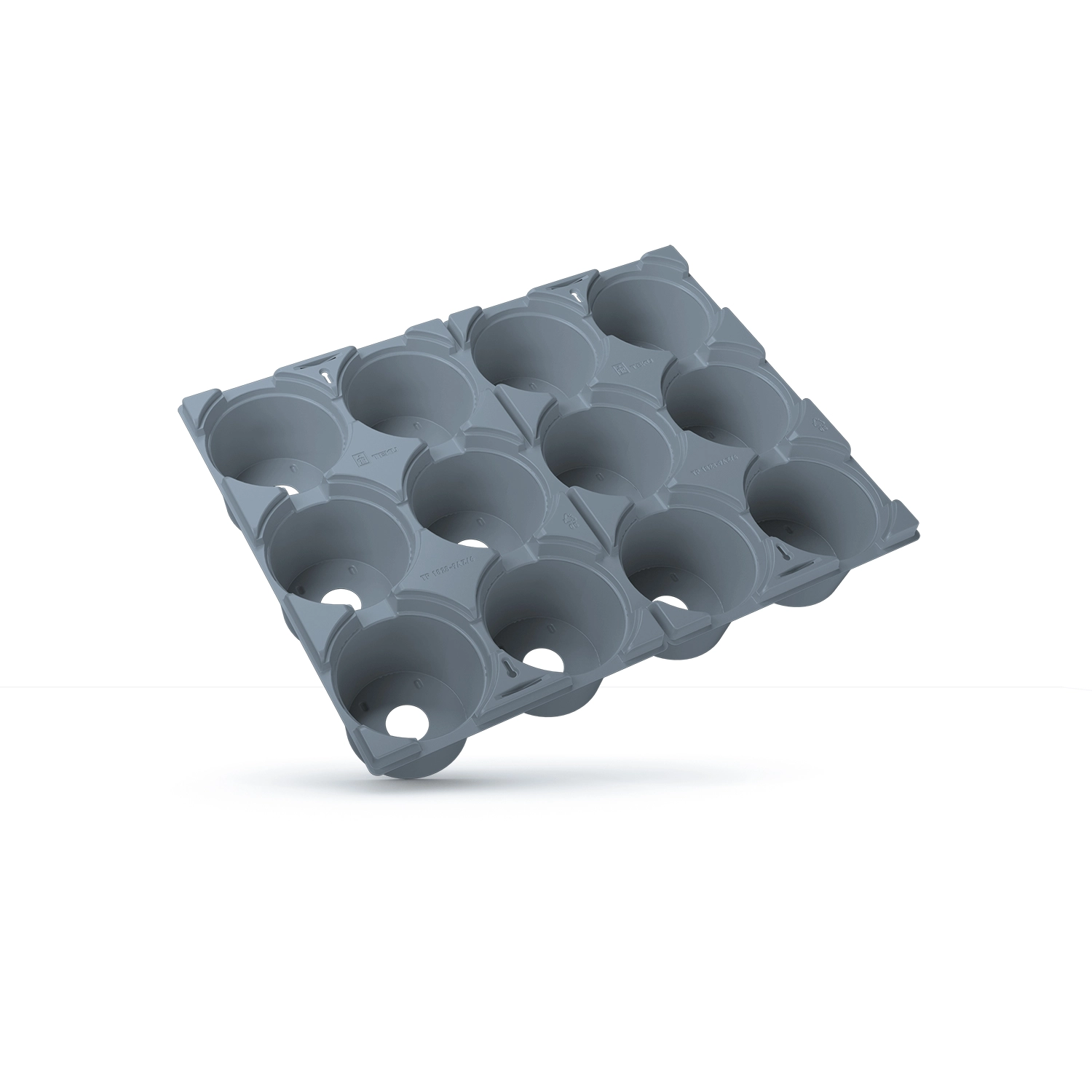

TP 2836-9 AZ/12-6** |
36,2 | 27,8 | 7,1 | 320 ml | 12 | 7 | 84 | show | show | |||||||||||||||||
VCG 9
VTG 9
MXC 9 |
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
AZ: Normal height, pots close flush with the edge of the trays
** For direct planting and with label slot
* With label slot
Packaging
|
|
||||
|---|---|---|---|---|---|
|
Item
|
/LocalizationKeys/tekuColumns/Trays-pro-Karton
|
|
/LocalizationKeys/tekuColumns/Trays-unterverpackt-auf-Palette
|
|
|
|
TP 1818-9 AZ/4** |
480 | 11 | 5.280 | 5.676 | |
VCG 9
VTG 9
MXC 9 |
|||||
|
TP 1818-9x9/4* |
702 | 11 | 7.722 | 7.722 | |
VCG 9
VTG 9
MXC 9 |
|||||
|
TP 1828-9 AZ/6** |
640 | 11 | 7.040 | 7.360 | |
VCG 9
VTG 9
MXC 9 |
|||||
|
TP 2026-10,5/4 |
400 | 11 | 4.400 | 5.220 | |
VCG 9
VTG 9
MXC 9 |
|||||
|
TP 2836-9 AZ/12-6** |
320 | 11 | 3.520 | 3.680 | |
VCG 9
VTG 9
MXC 9 |
|||||
AZ: Normal height, pots close flush with the edge of the trays
** For direct planting and with label slot
* With label slot
****nur EP verfügbar ***nur VE verfügbar
Advantages
Better plants
Reduced cultivation time
For rapid growth and healthy plants with ideal watering and drainage.
Very low failure rates
Roots are not adversely affected or damaged by exposure to light. High covering colours are used in the production process.
Sales promotion
A presentation with extensively printed carrying handles or stick tags can increase the consumer's attention.
Maximum efficiency
Trouble-free denesting from the stack
With evenly-formed contours and reliable stacking TEKU® trays are easier to separate quickly.
Easy to seperate
Due to the easy-to-handle perforation some versions can be separated smoothly and offered as an individual sales unit to the consumer.
Fast assembly
Even punched slits for stick tags and carrying handles allow for an automated and rational assembly.
Reduced transport costs
The optimal dimensions and improved fit increase loading quota per CC-trolley.
Effective sustainability
Use of recycled materials
Careful preparation and intensive use of recycled plastics.
Reduced weight
Unrivalled low materials usage thanks to continuous design optimisation.Downloads
