Protective Caps - GPN 200 Type A
The GPN 200 Type A cylindrical protective caps are suitable for protecting pipe ends and shafts as well as threaded studs. The easy-to-grip, knurled collar ensures easy removal.
- Protective caps for external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Also available as Type B with knurled outer wall
- Two sustainable variants made from post-consumer recyclate available
Dimensions

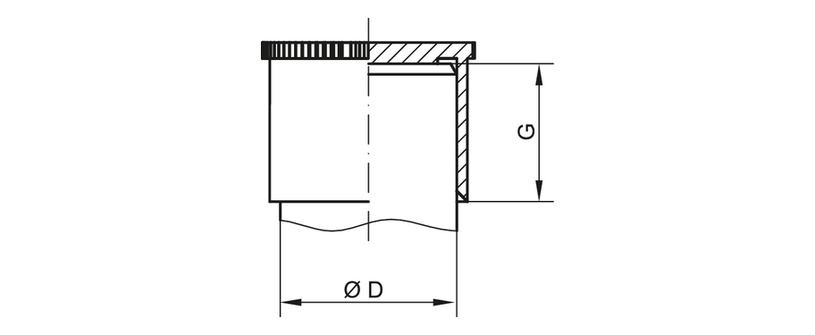

![Protective sleeve - GPN 200 Form A Drawing protective sleeve - GPN 200 form A](/us/dam/jcr:87102473-32bc-4936-b893-66cc391f3ad9/gpn-200-form-a-schutzhuelsen-cad-web.png)
Applicable for
|
||||||
---|---|---|---|---|---|---|
Item
|
External thread
|
D
|
G
|
CAD
|
Order no.
|
|
GPN 200 Z 8 x 10 PCR-PE, blue | - | 0.315 | 0.394 | show | 2000810RB61 | |
|
||||||
GPN 200 Z 16 x 15 PCR-PE, blue | - | 0.63 | 0.591 | show | 2001615RB61 | |
|
||||||
GPN 200 Z 12 x 16 PCR-PE, blue | - | 0.472 | 0.63 | show | 2001216RB61 | |
|
||||||
GPN 200 G 1 PCR-PE, blue | G 1 | 1.299 | 0.768 | show | 2000590RB61 | |
|
||||||
GPN 200 Z 20 x 20 PCR-PE, blue | - | 0.787 | 0.787 | show | 2002020RB61 | |
|
||||||
GPN 200 Z 28 x 20 PCR-PE, blue | - | 1.102 | 0.787 | show | 2002820RB61 | |
|
||||||
GPN 200 Z 8 x 30 PCR-PE, blue | - | 0.315 | 1.181 | show | 2000830RB61 | |
|
||||||
GPN 200 Z 50 x 30 PCR-PE, blue | - | 1.969 | 1.181 | show | 2005030RB61 | |
|
||||||
GPN 200 Z 14 x 15 PCR-PE, blue | - | 0.551 | 0.591 | show | 2001415RB61 | |
|
||||||
GPN 200 G 1/4 PCR-PE, blue | G 1/4 | 0.512 | 0.591 | show | 2000589RB61 | |
|
||||||
GPN 200 Z 12 x 10 PCR-PE, blue | - | 0.472 | 0.394 | show | 2001210RB61 | |
|
||||||
GPN 200 Z 36 x 25 PCR-PE, blue | - | 1.417 | 0.984 | show | 2003625RB61 | |
|
||||||
GPN 200 Z 18 x 15 PCR-PE, blue | - | 0.709 | 0.591 | show | 2001815RB61 | |
|
||||||
GPN 200 Z 5 x 13 PCR-PE, blue | - | 0.197 | 0.512 | show | 2000513RB61 | |
|
||||||
GPN 200 Z 14 x 20 PCR-PE, blue | - | 0.551 | 0.787 | show | 2001420RB61 | |
|
||||||
GPN 200 Z 38 x 25 PCR-PE, blue | - | 1.496 | 0.984 | show | 2003825RB61 | |
|
||||||
GPN 200 Z 22 x 18 PCR-PE, blue | - | 0.866 | 0.709 | show | 2002218RB61 | |
|
||||||
GPN 200 Z 16 x 20 PCR-PE, blue | - | 0.63 | 0.787 | show | 2001620RB61 | |
|
||||||
GPN 200 Z 18 x 20 PCR-PE, blue | - | 0.709 | 0.787 | show | 2001820RB61 | |
|
||||||
GPN 200 Z 9 x 12 PCR-PE, blue | - | 0.354 | 0.453 | show | 2000912RB61 | |
|
||||||
GPN 200 Z 30 x 22 PCR-PE, blue | - | 1.181 | 0.866 | show | 2003022RB61 | |
|
||||||
GPN 200 Z 10 x 22 PCR-PE, blue | - | 0.394 | 0.866 | show | 2001022RB61 | |
|
||||||
GPN 200 Z 6 x 10 PCR-PE, blue | - | 0.236 | 0.394 | show | 2000610RB61 | |
|
||||||
GPN 200 Z 42 x 27 PCR-PE, blue | - | 1.654 | 1.063 | show | 2004227RB61 | |
|
||||||
GPN 200 Z 14 x 38 PCR-PE, blue | - | 0.551 | 1.496 | show | 2001438RB61 | |
|
||||||
GPN 200 G 3/8 PCR-PE, blue | G 3/8 | 0.65 | 0.512 | show | 2000566RB61 | |
|
||||||
GPN 200 Z 10 x 33 PCR-PE, blue | - | 0.394 | 1.299 | show | 2001033RB61 | |
|
||||||
GPN 200 Z 22 x 30 PCR-PE, blue | - | 0.866 | 1.181 | show | 2002230RB61 | |
|
||||||
GPN 200 Z 5 x 20 PCR-PE, blue | - | 0.197 | 0.787 | show | 2000520RB61 | |
|
||||||
GPN 200 Z 40 x 27 PCR-PE, blue | - | 1.575 | 1.063 | show | 2004027RB61 | |
|
||||||
GPN 200 Z 16 x 25 PCR-PE, blue | - | 0.63 | 0.984 | show | 2001625RB61 | |
|
||||||
GPN 200 Z 32 x 22 PCR-PE, blue | - | 1.26 | 0.866 | show | 2003222RB61 | |
|
||||||
GPN 200 Z 6 x 31 PCR-PE, blue | - | 0.236 | 1.22 | show | 2000631RB61 | |
|
||||||
GPN 200 Z 12 x 35 PCR-PE, blue | - | 0.472 | 1.378 | show | 2001235RB61 | |
|
||||||
GPN 200 Z 18 x 26 PCR-PE, blue | - | 0.709 | 1.024 | show | 2001826RB61 | |
|
||||||
GPN 200 Z 10 x 28 PCR-PE, blue | - | 0.394 | 1.102 | show | 2001028RB61 | |
|
||||||
GPN 200 Z 6 x 16 PCR-PE, blue | - | 0.236 | 0.63 | show | 2000616RB61 | |
|
||||||
GPN 200 Z 9 x 16 PCR-PE, blue | - | 0.354 | 0.63 | show | 2000916RB61 | |
|
||||||
GPN 200 Z 14 x 8 PCR-PE, blue | - | 0.551 | 0.315 | show | 2001480RB61 | |
|
||||||
GPN 200 Z 10 x 10 PCR-PE, blue | - | 0.394 | 0.394 | show | 2001010RB61 | |
|
||||||
GPN 200 Z 48 x 30 PCR-PE, blue | - | 1.89 | 1.181 | show | 2004830RB61 | |
|
||||||
GPN 200 Z 20 x 14 PCR-PE, blue | - | 0.787 | 0.551 | show | 2002014RB61 | |
|
||||||
GPN 200 Z 45 x 30 PCR-PE, blue | - | 1.772 | 1.181 | show | 2004530RB61 | |
|
||||||
GPN 200 G 3/4 PCR-PE, blue | G 3/4 | 1.043 | 0.65 | show | 2000568RB61 | |
|
||||||
GPN 200 Z 8 x 16 PCR-PE, blue | - | 0.315 | 0.63 | show | 2000816RB61 | |
|
||||||
GPN 200 Z 24 x 18 PCR-PE, blue | - | 0.945 | 0.709 | show | 2002418RB61 | |
|
||||||
GPN 200 Z 14,5 x 15 PCR-PE, blue | - | 0.571 | 0.591 | show | 2001451RB61 | |
|
||||||
GPN 200 Z 10 x 6 PCR-PE, blue | - | 0.394 | 0.236 | show | 2001060RB61 | |
|
||||||
GPN 200 Z 14 x 10 PCR-PE, blue | - | 0.551 | 0.394 | show | 2001410RB61 | |
|
||||||
GPN 200 Z 35 x 25 PCR-PE, blue | - | 1.378 | 0.984 | show | 2003525RB61 | |
|
||||||
GPN 200 G 1/2 PCR-PE, blue | G 1/2 | 0.827 | 0.591 | show | 2000567RB61 | |
|
||||||
GPN 200 Z 7 x 16 PCR-PE, blue | - | 0.276 | 0.61 | show | 2000716RB61 | |
|
||||||
GPN 200 Z 12,5 x 20 PCR-PE, blue | - | 0.492 | 0.787 | show | 2001252RB61 | |
|
||||||
GPN 200 Z 16 x 8 PCR-PE, blue | - | 0.63 | 0.315 | show | 2001680RB61 | |
|
||||||
GPN 200 Z 33 x 25 PCR-PE, blue | - | 1.299 | 0.984 | show | 2003325RB61 | |
|
||||||
GPN 200 Z 27 X 20 PCR-PE, blue | - | 1.063 | 0.787 | show | 2002720RB61 | |
|
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
