Application pocket - GPN 200 Form B as virgin material (PE-LD)

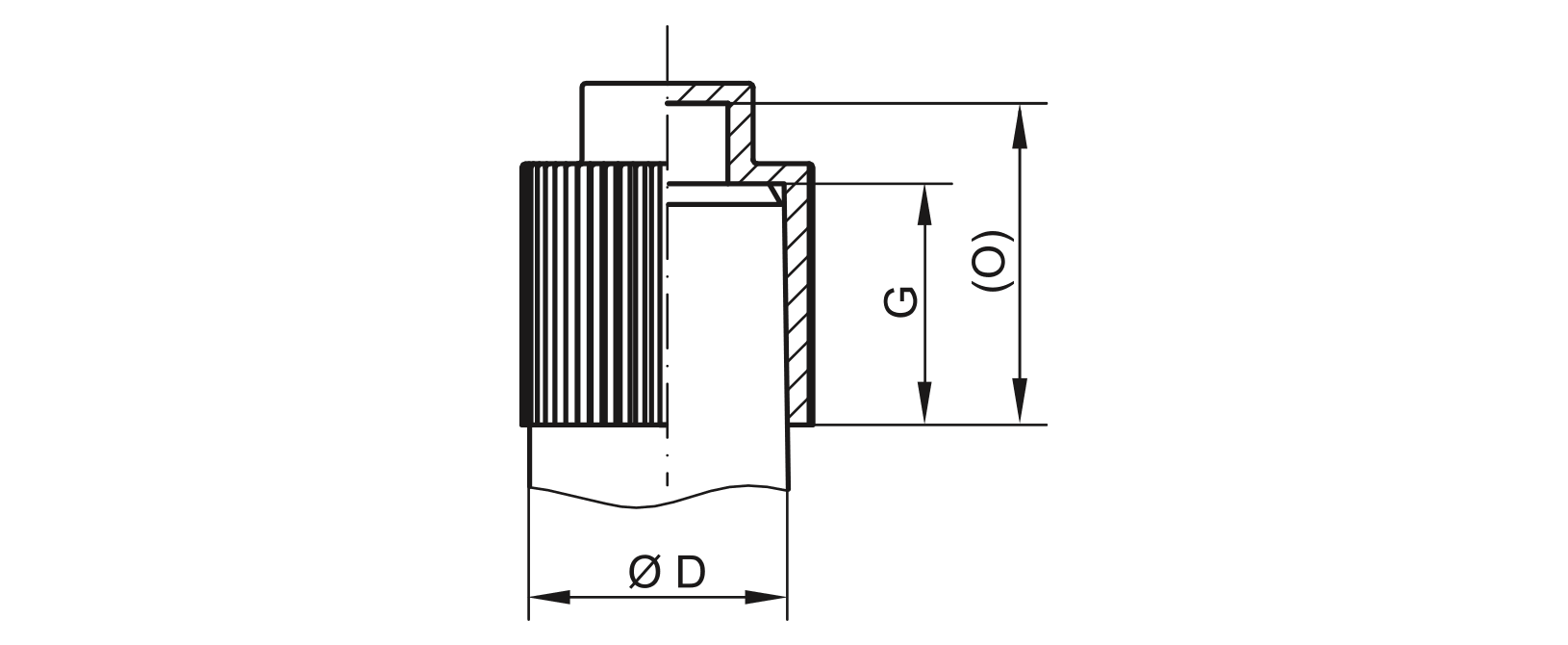

Drawing protective sleeve GPN 200 form B
Protective Caps - GPN 200 Type B
The GPN 200 Type B protective caps are designed for male end connectors in accordance with DIN EN 837-1 and DIN EN 837-3. The easy-to-grip, knurled outer wall ensures easy removal.
- Protective caps for external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Also available as Type A with knurled collar
- Two sustainable variants made from post-consumer recyclate available
100% Post-Consumer Recyclate
Recycling blend
Virgin material
Dimensions
|
Applicable for
|
Dimensions
|
||||||
|---|---|---|---|---|---|---|---|
|
Item
|
External thread
|
D
|
G
|
O
|
CAD
|
Order no.
|
|
| GPN 200 / 0791 PCR-PE, blue | G 1/2 | 0.827 | 0.787 | 1.024 | show | 2000791RB61 | |
|
|
|||||||
| GPN 200 / 1041 PCR-PE, blue | G 1/4 | 0.512 | 0.472 | 0.63 | show | 2001041RB61 | |
|
|
|||||||
| GPN 200 / 1040 PCR-PE, blue | M 12 x 1.5 | 0.472 | 0.472 | 0.63 | show | 2001040RB61 | |
|
|
|||||||
| GPN 200 / 0790 PCR-PE, blue | M 20 x 1.5 | 0.787 | 0.787 | 1.024 | show | 2000790RB61 | |
|
|
|||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Better fit.
Designed for male end connectors in accordance withDIN EN 837-1 and DIN EN 837-3.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Better.
Easy-to-grip knurled outer wall for easy removal.
More resource-saving.
The plastic used consists of 100 % recycled material.
