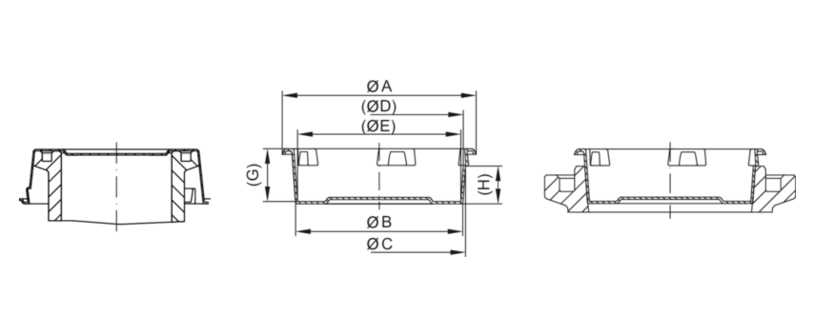

Drawing, ECO Universal protection- GPN 400

ECO-Universal Protection - GPN 400

The GPN 400 ECO universal protection can be used as a cap or a plug and protects external threads, bolts and pipes as well as internal thread and bore holes. With the thermoformed universal protection, material use is reduced by up to 70%. The stackable design leads to a reduction in transport and storage volume of up to 75%.

ECO universal protection for internal and external protection

more advantages

Virgin material

Dimensions

Colour

yellow

Material

mm inch

View prices and conditions directly online here and order even more easily.

		Indoor application		Outdoor application			Indoor application
Item	A	B	C	D	E	G	H	CAD	Order no.
GPN 400 C 585 PS, yellow	2.764 70,2	2.22 56,4	2.307 58,6	2.28 57,9	2.201 55,9	0.886 22,5	0.591 15	show	40005850000

GPN 400 C 598 PS, yellow	2.764 70,2	2.272 57,7	2.358 59,9	2.331 59,2	2.256 57,3	0.886 22,5	0.591 15	show	40005980000

GPN 400 C 611 PS, yellow	2.764 70,2	2.323 59	2.413 61,3	2.374 60,3	2.303 58,5	0.886 22,5	0.591 15	show	40006110000

GPN 400 C 624 PS, yellow	3.228 82	2.374 60,3	2.461 62,5	2.433 61,8	2.354 59,8	0.886 22,5	0.591 15	show	40006240000

GPN 400 C 635 PS, yellow	3.228 82	2.417 61,4	2.504 63,6	2.476 62,9	2.398 60,9	0.886 22,5	0.591 15	show	40006350000

GPN 400 C 648 PS, yellow	3.228 82	2.469 62,7	2.555 64,9	2.528 64,2	2.449 62,2	0.886 22,5	0.591 15	show	40064800000

GPN 400 C 660 PS, yellow	3.228 82	2.516 63,9	2.602 66,1	2.575 65,4	2.492 63,3	0.886 22,5	0.591 15	show	40066000000

GPN 400 C 673 PS, yellow	3.228 82	2.575 65,4	2.657 67,5	2.634 66,9	2.555 64,9	0.886 22,5	0.591 15	show	40067300000

GPN 400 C 686 PS, yellow	3.228 82	2.618 66,5	2.705 68,7	2.673 67,9	2.598 66	0.886 22,5	0.591 15	show	40006860000

GPN 400 C 699 PS, yellow	3.228 82	2.669 67,8	2.756 70	2.724 69,2	2.65 67,3	0.886 22,5	0.591 15	show	40006990000

GPN 400 C 712 PS, yellow	3.228 82	2.72 69,1	2.807 71,3	2.776 70,5	2.701 68,6	0.886 22,5	0.591 15	show	40007120000

GPN 400 C 725 PS, yellow	3.228 82	2.772 70,4	2.854 72,5	2.827 71,8	2.752 69,9	0.886 22,5	0.591 15	show	40007250000

GPN 400 C 738 PS, yellow	3.228 82	2.823 71,7	2.909 73,9	2.878 73,1	2.803 71,2	0.886 22,5	0.591 15	show	40007380000

GPN 400 C 751 PS, yellow	3.622 92	2.874 73	2.961 75,2	2.929 74,4	2.854 72,5	0.886 22,5	0.591 15	show	40007510000

GPN 400 C 768 PS, yellow	3.622 92	2.925 74,3	3.028 76,9	2.996 76,1	2.906 73,8	1 25,4	0.709 18	show	40007680000

GPN 400 C 785 PS, yellow	3.622 92	2.988 75,9	3.094 78,6	3.063 77,8	2.972 75,5	1 25,4	0.709 18	show	40007850000

GPN 400 C 802 PS, yellow	3.622 92	3.059 77,7	3.161 80,3	3.13 79,5	3.039 77,2	1 25,4	0.709 18	show	40008020000

GPN 400 C 819 PS, yellow	3.622 92	3.126 79,4	3.224 81,9	3.197 81,2	3.106 78,9	1 25,4	0.709 18	show	40008190000

GPN 400 C 836 PS, yellow	3.976 101	3.193 81,1	3.295 83,7	3.264 82,9	3.173 80,6	1 25,4	0.709 18	show	40008360000

GPN 400 C 853 PS, yellow	3.976 101	3.26 82,8	3.362 85,4	3.335 84,7	3.24 82,3	1 25,4	0.709 18	show	40008530000

GPN 400 C 870 PS, yellow	3.976 101	3.323 84,4	3.429 87,1	3.398 86,3	3.303 83,9	1 25,4	0.709 18	show	40008700000

GPN 400 C 887 PS, yellow	3.976 101	3.394 86,2	3.492 88,7	3.465 88	3.374 85,7	1 25,4	0.709 18	show	40008870000

GPN 400 C 902 PS, yellow	3.976 101	3.453 87,7	3.555 90,3	3.524 89,5	3.433 87,2	1 25,4	0.709 18	show	40009020000

GPN 400 C 917 PS, yellow	3.976 101	3.508 89,1	3.61 91,7	3.583 91	3.488 88,6	1 25,4	0.709 18	show	40009170000

GPN 400 C 934 PS, yellow	4.409 112	3.583 91	3.681 93,5	3.65 92,7	3.555 90,3	1 25,4	0.709 18	show	40009340000

GPN 400 C 951 PS, yellow	4.409 112	3.65 92,7	3.752 95,3	3.713 94,3	3.618 91,9	1 25,4	0.709 18	show	40009510000

GPN 400 C 969 PS, yellow	4.409 112	3.701 94	3.815 96,9	3.787 96,2	3.677 93,4	1.118 28,4	0.827 21	show	40009690000

GPN 400 C 990 PS, yellow	4.409 112	3.783 96,1	3.902 99,1	3.87 98,3	3.76 95,5	1.118 28,4	0.827 21	show	40009900000

GPN 400 C 1007 PS, yellow	4.409 112	3.843 97,6	3.969 100,8	3.937 100	3.823 97,1	1.118 28,4	0.827 21	show	40010070000

GPN 400 C 1025 PS, yellow	4.646 118	3.921 99,6	4.039 102,6	4.028 102,3	3.902 99,1	1.118 28,4	0.827 21	show	40010250000

GPN 400 C 1046 PS, yellow	4.646 118	4 101,6	4.118 104,6	4.106 104,3	3.98 101,1	1.118 28,4	0.827 21	show	40010460000

GPN 400 C 1076 PS, yellow	4.646 118	4.118 104,6	4.236 107,6	4.228 107,4	4.098 104,1	1.118 28,4	0.827 21	show	40010760000

GPN 400 C 1088 PS, yellow	4.646 118	4.165 105,8	4.283 108,8	4.272 108,5	4.146 105,3	1.118 28,4	0.827 21	show	40010880000

GPN 400 C 1109 PS, yellow	5.197 132	4.248 107,9	4.366 110,9	4.354 110,6	4.224 107,3	1.118 28,4	0.827 21	show	40011090000

GPN 400 C 1129 PS, yellow	5.197 132	4.319 109,7	4.445 112,9	4.413 112,1	4.295 109,1	1.118 28,4	0.827 21	show	40011290000

GPN 400 C 1145 PS, yellow	5.197 132	4.386 111,4	4.508 114,5	4.492 114,1	4.366 110,9	1.118 28,4	0.827 21	show	40011450000

GPN 400 C 1170 PS, yellow	5.197 132	4.476 113,7	4.61 117,1	4.575 116,2	4.457 113,2	1.232 31,3	0.945 24	show	40011700000

GPN 400 C 1195 PS, yellow	5.197 132	4.571 116,1	4.705 119,5	4.685 119	4.551 115,6	1.232 31,3	0.945 24	show	40011950000

GPN 400 C 1219 PS, yellow	5.197 132	4.665 118,5	4.799 121,9	4.768 121,1	4.646 118	1.232 31,3	0.945 24	show	40012190000

GPN 400 C 1231 PS, yellow	5.591 142	4.717 119,8	4.85 123,2	4.811 122,2	4.689 119,1	1.232 31,3	0.945 24	show	40012310000

GPN 400 C 1256 PS, yellow	5.591 142	4.811 122,2	4.945 125,6	4.913 124,8	4.787 121,6	1.232 31,3	0.945 24	show	40012560000

GPN 400 C 1280 PS, yellow	5.591 142	4.898 124,4	5.039 128	5.008 127,2	4.87 123,7	1.232 31,3	0.945 24	show	40012800000

GPN 400 C 1306 PS, yellow	5.591 142	5 127	5.138 130,5	5.118 130	4.976 126,4	1.232 31,3	0.945 24	show	40013060000

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

For these articles, color deviations as well as black dots, which cannot be completely avoided due to production technology, are permissible. We recommend that functional tests be carried out before series production.
