HV Connector Caps - GPN 384
The GPN 384 high-voltage connector caps are suitable for use in parts and components for hybrid and electric vehicles. They protect Rosenberger connectors (HVS 240 and HVS 420), e.g. in rechargeable batteries, DC/DC converters, on-board chargers, electrical connectors and high-voltage distribution, against corrosion and mechanical damage and provide protection against splashing water in accordance with protection class IPX4. The connector cap has non-slip gripping surfaces that allow fast removal, can be fitted on both sides and impresses with a functional registered design. The plastic used consists of post-consumer recycled material.
- HV connector caps for external protection
- Suitable for HVS 240 and HVS 420 HV contact connectors
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Blue Angel-certified recycled material
100% Post-Consumer Recyclate

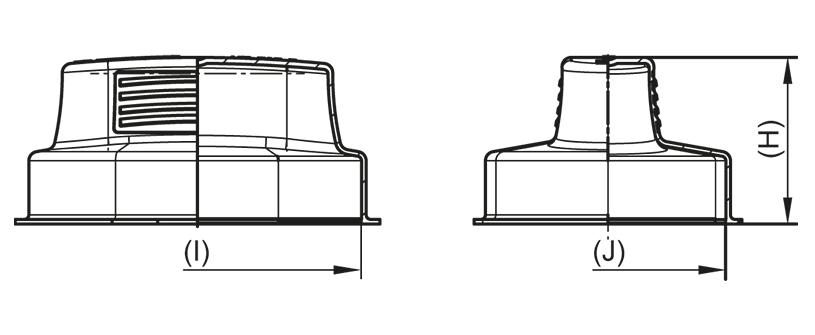

Dimensions
|
Dimensions
|
||||||
|---|---|---|---|---|---|---|
|
Item
|
I
|
J
|
M
|
CAD
|
Order no.
|
|
| GPN 384 HV 240 PCR-PP, turquoise blue | 2.815 | 2.02 | 1.181 | show | 38405070000 | |
|
|
||||||
| New GPN 384 HV 240-2 PCR-PP, turquoise blue | 2.803 | 2.024 | 1.429 | show | 38405060000 | |
|
|
||||||
| GPN 384 HV 420 PCR-PP, turquoise blue | 3.366 | 2.236 | 1.354 | show | 38405030000 | |
|
|
||||||
| New GPN 384 HV 420-2 PCR-PP, turquoise blue | 3.382 | 2.236 | 1.508 | show | 38405020000 | |
|
|
||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
*The article consists of 98 % PCR-PP and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.
Application guide
|
Item
|
Contact connections
|
||
|---|---|---|---|
| GPN 384 HV 240 PCR-PP, turquoise blue | HVS |
|
|
| New GPN 384 HV 240-2 PCR-PP, turquoise blue | HVS |
|
|
| GPN 384 HV 420 PCR-PP, turquoise blue | HVS |
|
|
| New GPN 384 HV 420-2 PCR-PP, turquoise blue | HVS |
|
|
For these articles, color deviations as well as black dots, which cannot be completely avoided due to production technology, are permissible. We recommend that functional tests be carried out before series production.
Quality advantages
More resource-saving.
Better fit.
Saves time.
Seals better.
Cleaner.
