Sealing Screw Plugs with O-Ring - GPN 737

The GPN 737 sealing screw plugs with O-ring are suitable for closing screw holes as per DIN 3852-1 and DIN ISO 6149-1 and are particularly well suited for increased demands on leak tightness. The sturdy material is of high quality and is particularly impact-resistant. Coupled with the O-ring, the circumferential sealing lip, which is designed without a mould seam, prevents the ingress or leaking of liquids within certain limits. To be fitted with a screwdriver or wrench.


  • Sealing plugs with O-ring for internal protection
more advantages
Virgin material Virgin material
Dimensions Quality advantages Information material

Dimensions

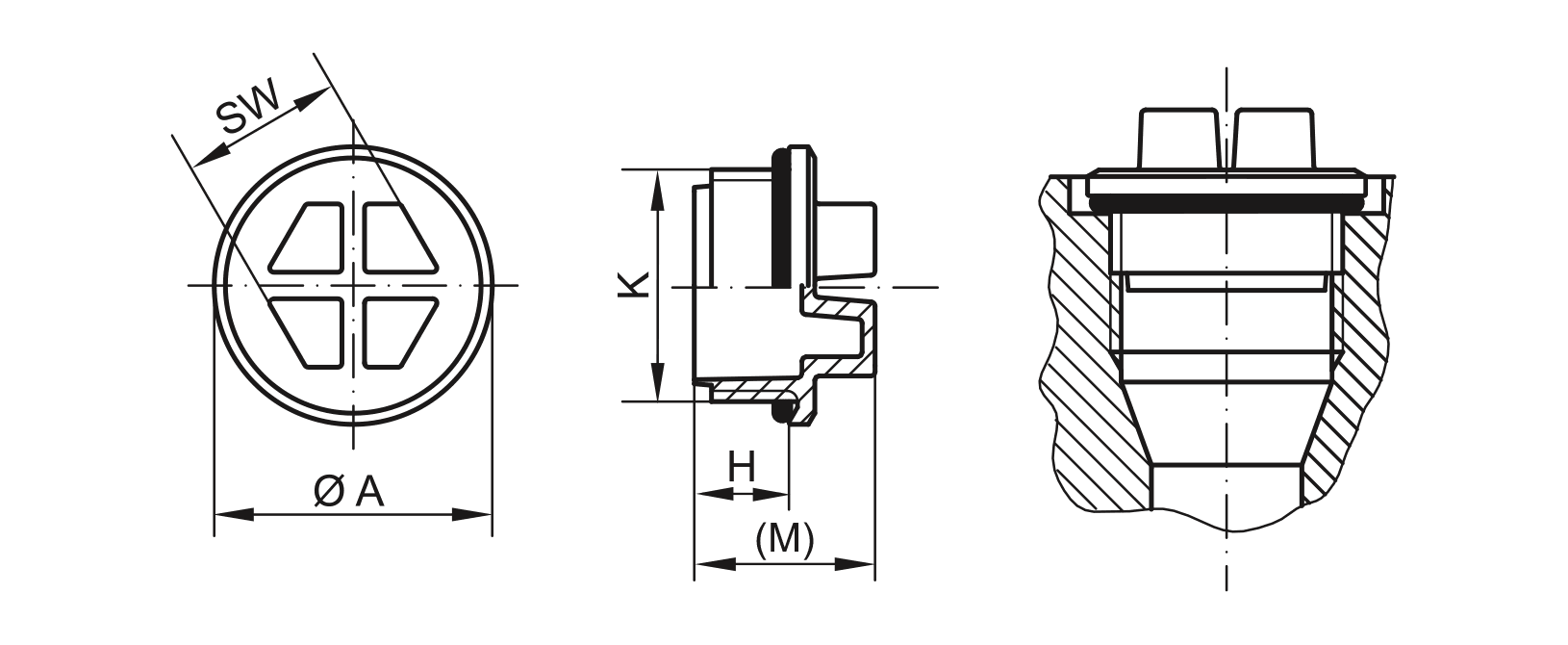

Drawing sealing plug with O-ring - GPN 737
Colour
yellow
Material
PA 6
mm inch
View prices and conditions directly online here and order even more easily.
Applicable for
Dimensions
Item
K
A
H
M
SW
CAD
Order no.
GPN 737 9/16 - 18 UNF PA 6, yellow 9/16 - 18 UNF 0.701 0.433 0.709 10 73724420000
GPN 737 G 1 1/2 PA 6, yellow G 1 1/2 2.181 0.453 0.886 30 73706640000
GPN 737 G 1 1/4 PA 6, yellow G 1 1/4 1.984 0.453 0.886 24 73706630000
GPN 737 G 1 PA 6, yellow G 1 1.575 0.453 0.846 24 73706620000
GPN 737 G 1/2 PA 6, yellow G 1/2 1.071 0.374 0.768 15 73706600000
GPN 737 G 1/4 PA 6, yellow G 1/4 0.756 0.295 0.591 10 73706580000
GPN 737 G 3/4 PA 6, yellow G 3/4 1.272 0.374 0.768 19 73706610000
GPN 737 G 3/8 PA 6, yellow G 3/8 0.874 0.295 0.689 13 73706590000
GPN 737 M 8 x 1 PA 6, yellow M 8 x 1 0.48 0.315 0.591 7 73708100000
GPN 737 M 10 x 1 PA 6, yellow M 10 x 1 0.559 0.315 0.591 7 73710100000
GPN 737 M 12 x 1,5 PA 6, yellow M 12 x 1,5 0.677 0.433 0.709 10 73712150000
GPN 737 M 14 x 1,5 PA 6, yellow M 14 x 1,5 0.756 0.433 0.748 10 73714150000
GPN 737 M 16 x 1,5 PA 6, yellow M 16 x 1,5 0.866 0.433 0.827 13 73716150000
GPN 737 M 18 x 1,5 PA 6, yellow M 18 x 1,5 0.945 0.433 0.827 13 73718150000
GPN 737 M 20 x 1,5 PA 6, yellow M 20 x 1,5 1.024 0.433 0.827 15 73720150000
GPN 737 M 22 x 1,5 PA 6, yellow M 22 x 1,5 1.071 0.433 0.827 15 73722150000
GPN 737 M 24 x 1,5 PA 6, yellow M 24 x 1,5 1.24 0.472 0.866 15 73724150000
GPN 737 M 26 x 1,5 PA 6, yellow M 26 x 1,5 1.26 0.531 0.925 19 73726150000
GPN 737 M 27 x 2 PA 6, yellow M 27 x 2 1.272 0.433 0.827 19 73727200000
GPN 737 M 33 x 2 PA 6, yellow M 33 x 2 1.591 0.531 0.925 24 73733200000
GPN 737 M 42 x 2 PA 6, yellow M 42 x 2 1.969 0.531 0.965 24 73742200000
GPN 737 M 48 x 2 PA 6, yellow M 48 x 2 2.181 0.531 0.965 30 73748200000
GPN 737 M 60 x 2 PA 6, yellow M 60 x 2 2.697 0.531 0.965 30 73760200000

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Engraving corresponds to standard series GPN 735.

free samples Samples non-binding offer offer
Recommend
SCROLL

Quality advantages

<p><strong>Better fit.</strong></p>

Better fit.

For closing internal threads in accordance with DIN 3852-1, DIN ISO 6149-1.
<p><strong>Seals better.<strong></p>

Seals better.

The circumferential sealing lip (no mould-parting feature) and the O-ring prevent the penetration or leaking of liquids depending on the application.
<p><strong>More robust.</strong></p>

More robust.

Made from premium impact-resistant polyamide.
<p><strong>Better.</strong></p>

Better.

Same design as GPN 735 but fitted with O ring. For high leak proof requirements, e.g. untreated sealing surfaces, high process temperatures, long process times, and inreased pressure inside the component.
