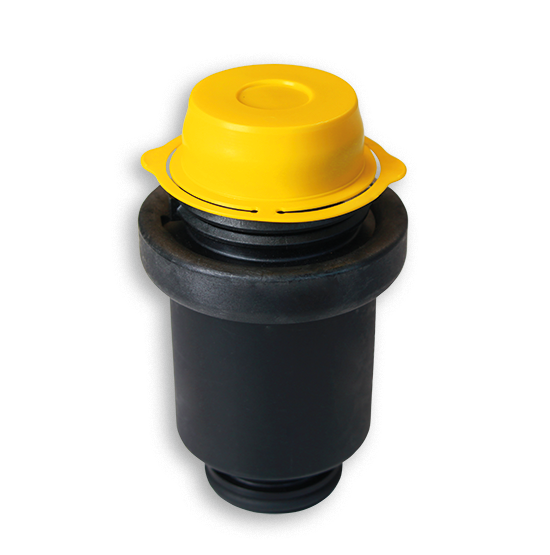

Universal protection application - GPN 615

Universal Protection with Ring Lug - GPN 615

The GPN 615 universal protection with ring lug can be used as a cap or plug and protects internal thread, pipes, hoses and openings. The conical design is ideal for accommodating tolerances. The ring lug lies flat, guaranteeing no loss of installation space as well as fast fitting and removal.

Universal protection for internal and external protection
Production in accordance with ISO 16232 in a specially designed cleanroom possible
Two sustainable variants made from post-consumer recyclate available

more advantages

100% Post-Consumer Recyclate

Recycling blend

Virgin material

Dimensions

Colour

yellow

Material

PCR-PE / PE-LD

mm inch

View prices and conditions directly online here and order even more easily.

		Indoor application		Outdoor application		Indoor application
Item	A	B	C	D	E	H	CAD	Order no.
GPN 615 UL 88 PCR-PE / PE-LD, yellow	1.142 29	0.299 7,6	0.358 9,1	0.303 7,7	0.244 6,2	0.394 10	show	61500880073

GPN 615 UL 91 PCR-PE / PE-LD, yellow	1.142 29	0.307 7,8	0.374 9,5	0.315 8	0.248 6,3	0.394 10	show	61500910073

GPN 615 UL 107 PCR-PE / PE-LD, yellow	1.142 29	0.374 9,5	0.437 11,1	0.378 9,6	0.311 7,9	0.394 10	show	61501070073

GPN 615 UL 114 PCR-PE / PE-LD, yellow	1.142 29	0.402 10,2	0.469 11,9	0.406 10,3	0.339 8,6	0.394 10	show	61501140073

GPN 615 UL 127 PCR-PE / PE-LD, yellow	1.142 29	0.453 11,5	0.516 13,1	0.457 11,6	0.39 9,9	0.394 10	show	61501270073

GPN 615 UL 147 PCR-PE / PE-LD, yellow	1.26 32	0.516 13,1	0.587 14,9	0.535 13,6	0.457 11,6	0.472 12	show	61501470073

GPN 615 UL 152 PCR-PE / PE-LD, yellow	1.339 34	0.531 13,5	0.598 15,2	0.555 14,1	0.476 12,1	0.472 12	show	61501520073

GPN 615 UL 167 PCR-PE / PE-LD, yellow	1.339 34	0.587 14,9	0.669 17	0.614 15,6	0.528 13,4	0.512 13	show	61501670073

GPN 615 UL 187 PCR-PE / PE-LD, yellow	1.496 38	0.669 17	0.756 19,2	0.689 17,5	0.602 15,3	0.512 13	show	61501870073

GPN 615 UL 207 PCR-PE / PE-LD, yellow	1.575 40	0.732 18,6	0.831 21,1	0.768 19,5	0.665 16,9	0.591 15	show	61502070073

GPN 615 UL 241 PCR-PE / PE-LD, yellow	1.811 46	0.846 21,5	0.972 24,7	0.902 22,9	0.78 19,8	0.709 18	show	61502410073

GPN 615 UL 309 PCR-PE / PE-LD, yellow	2.205 56	1.106 28,1	1.213 30,8	1.169 29,7	1.039 26,4	0.748 19	show	61503090073

GPN 615 UL 448 PCR-PE / PE-LD, yellow	3.15 80	1.661 42,2	1.787 45,4	1.713 43,5	1.583 40,2	0.748 19	show	61504480073

GPN 615 UL 628 PCR-PE / PE-LD, yellow	3.74 95	2.299 58,4	2.472 62,8	2.394 60,8	2.22 56,4	0.984 25	show	61506280073

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Application guide

mm inch

	for metric threads
Item	Internal application fine threads			Internal application Pipe thread
GPN 615 UL 114 PCR-PE / PE-LD, yellow				G 1/4 G 1/4
GPN 615 UL 88 PCR-PE / PE-LD, yellow				G 1/8 G 1/8
GPN 615 UL 628 PCR-PE / PE-LD, yellow
GPN 615 UL 152 PCR-PE / PE-LD, yellow				G 3/8 G 3/8
GPN 615 UL 448 PCR-PE / PE-LD, yellow				G 1 1/2 G 1 1/2
GPN 615 UL 107 PCR-PE / PE-LD, yellow		M 12 x 1,5 M 12 x 1,5
GPN 615 UL 127 PCR-PE / PE-LD, yellow		M 14 x 1,5 M 14 x 1,5
GPN 615 UL 147 PCR-PE / PE-LD, yellow		M 16 x 1,5 M 16 x 1,5
GPN 615 UL 167 PCR-PE / PE-LD, yellow		M 18 x 1,5 M 18 x 1,5
GPN 615 UL 187 PCR-PE / PE-LD, yellow		M 20 x 1,5 M 20 x 1,5		G 1/2 G 1/2
GPN 615 UL 207 PCR-PE / PE-LD, yellow		M 22 x 1,5 M 22 x 1,5		G 5/8 G 5/8
GPN 615 UL 241 PCR-PE / PE-LD, yellow		M 26 x 1,5 M 26 x 1,5		G 3/4 G 3/4
GPN 615 UL 309 PCR-PE / PE-LD, yellow		M 32 x 1,5 M 32 x 1,5	M 32 x 2 M 32 x 2	G 1 G 1
GPN 615 UL 91 PCR-PE / PE-LD, yellow	M 10 x 1 M 10 x 1	M 10 x 1,5 M 10 x 1,5

This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.
