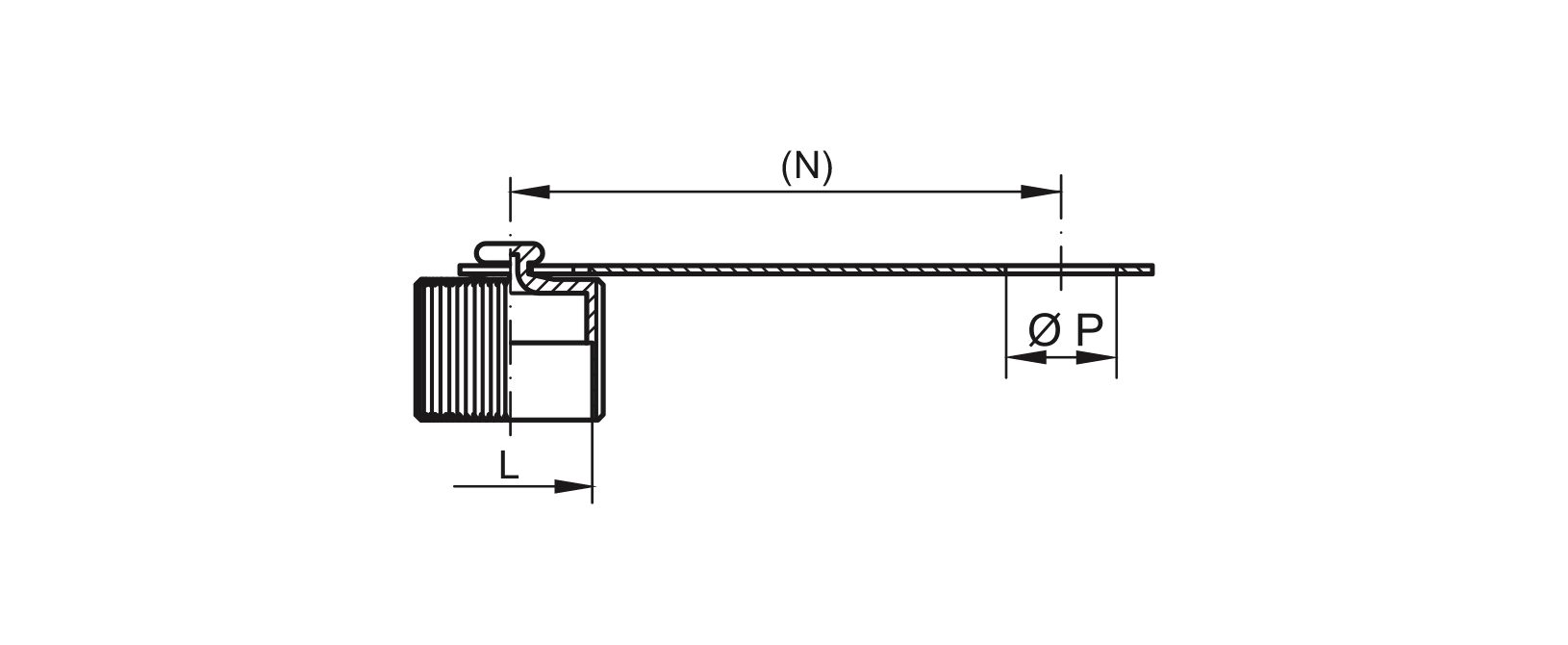

Drawing dust plugs - GPN 930 Form B
Protective Dust Caps - GPN 930 Type B
The GPN 930 Type B protective dust caps protect open plug-in couplings, particularly the thread, from damage and dirt and have a captive design with a PE-LLD tab. The protective dust caps prevent the ingress or leaking of liquids within certain limits.
- Protective dust caps for external protection
- Also available in Type A as protective dust plugs
Virgin material
Dimensions
Colour
red
Material
PE-HD
Technical data sheet
|
Applicable for
|
Dimensions
|
||||||
|---|---|---|---|---|---|---|---|
|
Item
|
Nominal size
|
L
|
N
|
P
|
CAD
|
Order no.
|
|
| GPN 930 / 10074* PE-HD, red | DN 6 + 8 | M 28 x 2 | 100 | 20 | show | 93000740000 | |
|
|
|||||||
| GPN 930 / 10078* PE-HD, red | DN 10 + 12 | M 36 x 2 | 110 | 24 | show | 93000780000 | |
|
|
|||||||
| GPN 930 / 10031 PE-HD, red | DN 10 + 12 | M 36 x 2 | 135 | 29,5 | show | 93000310000 | |
|
|
|||||||
| GPN 930 / 10082* PE-HD, red | DN 16 + 20 | Rd 48 x 3 | 145 | 41 | show | 93000820000 | |
|
|
|||||||
| GPN 930 / 10086* PE-HD, red | DN 25 + 32 | Rd 70 x 3 | 200 | 55 | show | 93000860000 | |
|
|
|||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
*Eyelet of lug not slotted.
Quality advantages
Better fit.
Protects open plug-in couplings, and particularly their thread.
Seals better.
Prevents damage and contamination and provides limited sealing action.
Better.
Self-retaining design due to integral strap.
