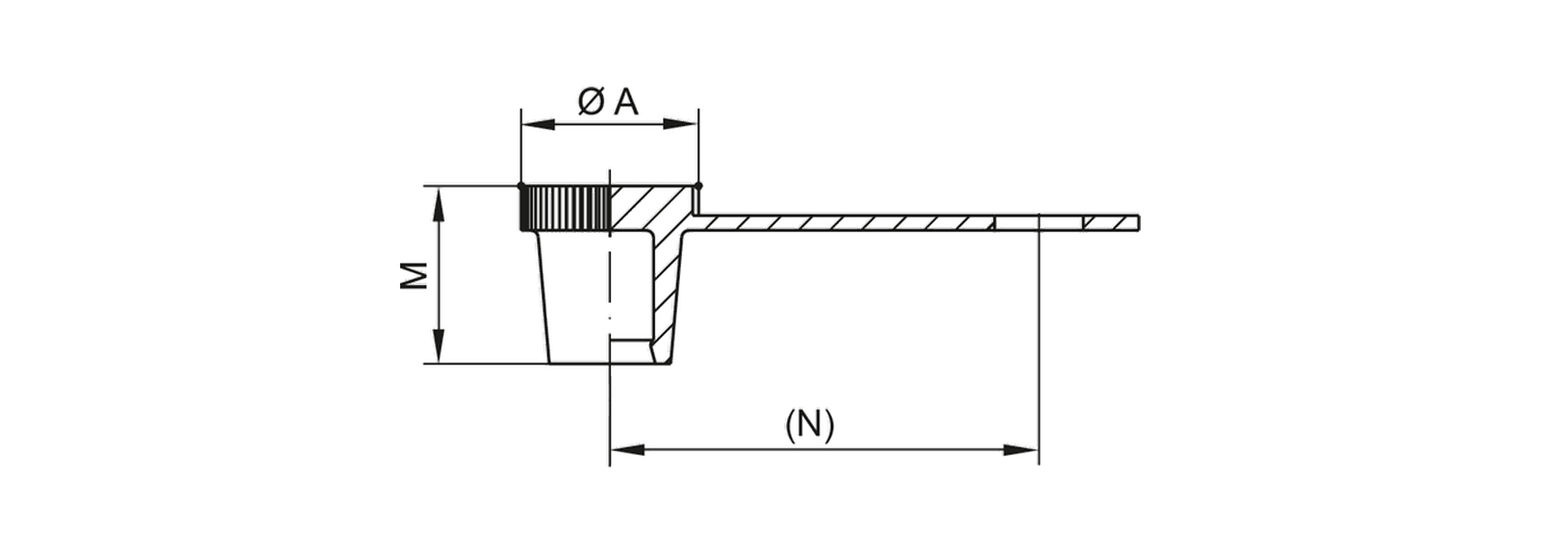

Drawing grease nipple cap - GPN 985 Form B
Grease Nippel Caps – GPN 985 Type B
The GPN 985 Type B grease nipple caps are suitable for the protection for tapered grease nipples according to DIN EN 71412 and feature a captive tab design. The easy-to-grip, knurled outer wall ensures better fitting and removal.
- Grease nipple caps for external protection
- Also available in Type A without tab
Virgin material
Dimensions
|
Dimensions
|
||||||
|---|---|---|---|---|---|---|
|
Item
|
A
|
M
|
N
|
CAD
|
Order no.
|
|
| GPN 985 / 0202 PE-LLD, green | 0.472 | 0.472 | 1.142 | show | 98502020000 | |
|
|
||||||
| GPN 985 / 0203 PE-LLDPE-LLD, black | 0.472 | 0.472 | 1.142 | show | 98502030000 | |
|
|
||||||
| GPN 985 / 0201 PE-LLD, red | 0.472 | 0.472 | 1.142 | show | 98502010000 | |
|
|
||||||
| GPN 985 / 0200 PE-LLD, yellow | 0.472 | 0.472 | 1.142 | show | 98502000000 | |
|
|
||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Better fit.
Protection for the tapred heads of grease nipples in accordance with DIN EN 71412.
Better.
Protect the tapered head of grease nipples against contamination and visibly mark lubrication points. Caps are knurled for ease of grip.
