Application grease nipple cap - GPN 980 Form B

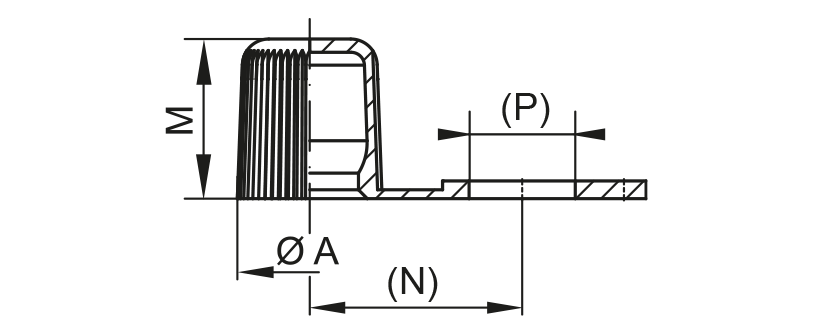

Drawing grease nipple cap - GPN 980 Form B
Grease Nipple Caps – GPN 980 Type B
The GPN 980 Type B grease nipple caps are suitable for the protection for tapered grease nipples according to DIN EN 71412 and feature a captive tab design. The easy-to-grip, knurled outer wall ensures better fitting and removal.
- Grease nipple caps for external protection
- Also available in Type A without tab
Virgin material
Dimensions
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|
|
Item
|
A
|
M
|
N
|
P
|
CAD
|
Order no.
|
|
| GPN 980 / 0200 PE-LLD, yellow | 0.323 | 0.354 | 0.472 | 0.236 | show | 98002000000 | |
|
|
|||||||
| GPN 980 / 0201 PE-LLD, red | 0.323 | 0.354 | 0.472 | 0.236 | show | 98002010000 | |
|
|
|||||||
| GPN 980 / 0202 PE-LLD, green | 0.323 | 0.354 | 0.472 | 0.236 | show | 98002020000 | |
|
|
|||||||
| GPN 980 / 0203 PE-LLD, black | 0.323 | 0.354 | 0.472 | 0.236 | show | 98002030000 | |
|
|
|||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Better fit.
Protection for the tapred heads of grease nipples in accordance with DIN EN 71412.
Better.
Protect the tapered head of grease nipples against contamination and visibly mark lubrication points. Caps are knurled for ease of grip.
Downloads
Alternative standard series
