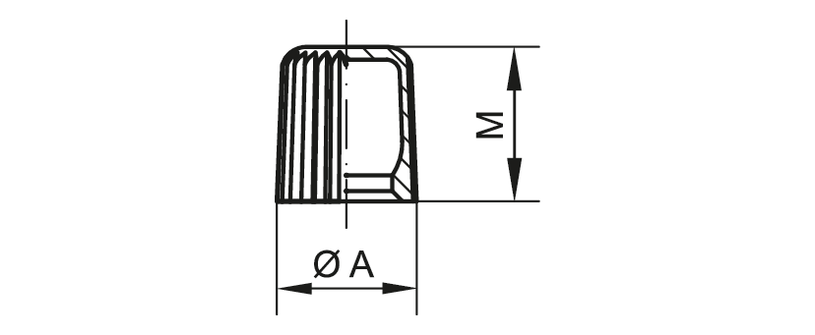

Drawing grease nipple cap - GPN 980 Form A
Grease Nipple Caps - GPN 980 Type A
The GPN 980 Type A grease nipple caps are suitable for protecting tapered grease nipples according to DIN 71412. The easy-to-grip, knurled outer wall ensures better fitting and removal.
- Grease nipple caps for external protection
- Also available in Type B with tab
Virgin material
Dimensions
|
Dimensions
|
||||||
|---|---|---|---|---|---|---|
|
Item
|
A
|
M
|
N
|
CAD
|
Order no.
|
|
| GPN 980 / 0103 PE-LLD, black | 0.323 | 0.354 | 0 | show | 98001030000 | |
|
|
||||||
| GPN 980 / 0102 PE-LLD, green | 0.323 | 0.354 | 0 | show | 98001020000 | |
|
|
||||||
| GPN 980 / 0100 PE-LLD, yellow | 0.323 | 0.354 | 0 | show | 98001000000 | |
|
|
||||||
| GPN 980 / 0101 PE-LLD, red | 0.323 | 0.354 | 0 | show | 98001010000 | |
|
|
||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Better fit.
Protection for the tapred heads of grease nipples in accordance with DIN EN 71412.
Better.
Protect the tapered head of grease nipples against contamination and visibly mark lubrication points. Caps are knurled for ease of grip.
