Grip Plugs - GPN 315

The GPN 315 grip plugs are suitable for the protection of bore holes and internal threads. The handy tab facilitates handling as well as fitting and removal. Flexible ribs for accommodating large tolerances.

Grip plugs for internal protection

more advantages

Virgin material

Dimensions

Colour

yellow

Material

PE-LLD

mm inch

View prices and conditions directly online here and order even more easily.

	Dimensions

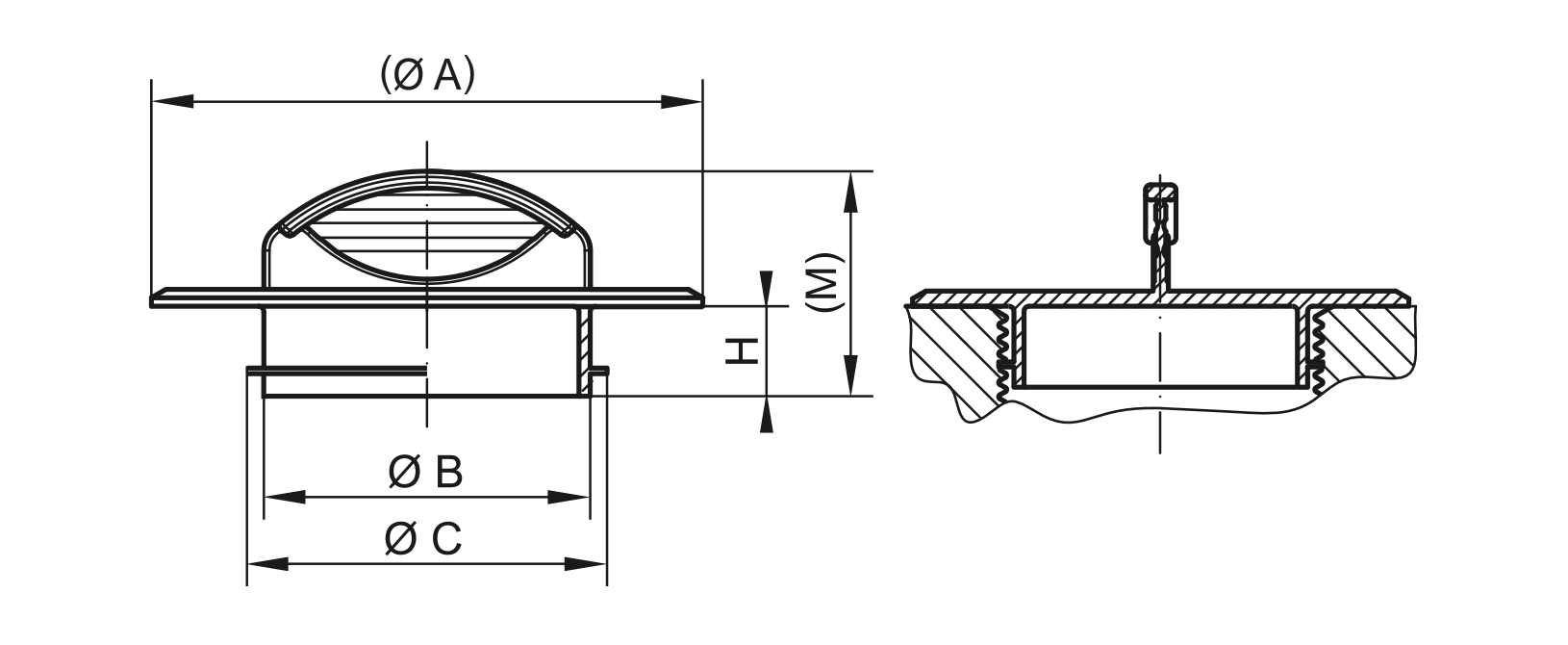

Item	A	B	C	H	M	CAD	Order no.
GPN 315 GS 8 PE-LLD, yellow	0.984 25	0.197 5	0.315 8	0.315 8	0.787 20	show	31500080000

GPN 315 GS 10 PE-LLD, yellow	1.063 27	0.276 7	0.394 10	0.315 8	0.787 20	show	31500100000

GPN 315 GS 12 PE-LLD, yellow	1.142 29	0.354 9	0.472 12	0.315 8	0.787 20	show	31500120000

GPN 315 GS 14 PE-LLD, yellow	1.22 31	0.433 11	0.551 14	0.315 8	0.787 20	show	31500140000

GPN 315 GS 15 PE-LLD, yellow	1.299 33	0.472 12	0.591 15	0.315 8	0.787 20	show	31500150000

GPN 315 GS 16 PE-LLD, yellow	1.299 33	0.512 13	0.63 16	0.315 8	0.787 20	show	31500160000

GPN 315 GS 18 PE-LLD, yellow	1.378 35	0.591 15	0.709 18	0.315 8	0.787 20	show	31500180000

GPN 315 GS 22 PE-LLD, yellow	1.535 39	0.748 19	0.866 22	0.315 8	0.787 20	show	31500220000

GPN 315 GS 26 PE-LLD, yellow	1.713 43,5	0.906 23	1.024 26	0.315 8	0.787 20	show	31500260000

GPN 315 GS 30 PE-LLD, yellow	1.85 47	1.063 27	1.181 30	0.315 8	0.787 20	show	31500300000

GPN 315 GS 32 PE-LLD, yellow	1.929 49	1.142 29	1.26 32	0.315 8	0.866 22	show	31500320000

GPN 315 GS 34 PE-LLD, yellow	2.008 51	1.22 31	1.339 34	0.315 8	0.866 22	show	31500340000

GPN 315 GS 41 PE-LLD, yellow	2.283 58	1.496 38	1.614 41	0.315 8	0.886 22,5	show	31500410000

GPN 315 GS 47 PE-LLD, yellow	2.52 64	1.732 44	1.85 47	0.315 8	0.886 22,5	show	31500470000

GPN 315 GS 58 PE-LLD, yellow	2.953 75	2.165 55	2.283 58	0.315 8	0.886 22,5	show	31500580000

GPN 315 GS 82 PE-LLD, yellow	3.898 99	3.11 79	3.228 82	0.315 8	0.886 22,5	show	31500820000

GPN 315 GS 86 PE-LLD, yellow	4.055 103	3.268 83	3.386 86	0.315 8	0.886 22,5	show	31500860000

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Application guide

mm inch

	for metric threads		for metric threads			for metric threads
Item	fine thread					Standard thread	Pipe thread
GPN 315 GS 47 PE-LLD, yellow				M 48 x 2 M 48 x 2
GPN 315 GS 82 PE-LLD, yellow					M 85 x 4 M 85 x 4
GPN 315 GS 41 PE-LLD, yellow				M 42 x 2 M 42 x 2
GPN 315 GS 86 PE-LLD, yellow							3 3
GPN 315 GS 26 PE-LLD, yellow			M 26 x 1,5 M 26 x 1,5				3/4 3/4
GPN 315 GS 30 PE-LLD, yellow			M 30 x 1,5 M 30 x 1,5
GPN 315 GS 32 PE-LLD, yellow			M 32 x 1,5 M 32 x 1,5	M 33 x 2 M 33 x 2			1 1
GPN 315 GS 34 PE-LLD, yellow			M 34 x 1,5 M 34 x 1,5
GPN 315 GS 58 PE-LLD, yellow			M 58 x 1,5 M 58 x 1,5				2 2
GPN 315 GS 8 PE-LLD, yellow	M 8 x 1 M 8 x 1					M 8 M 8	1/16 1/16
GPN 315 GS 10 PE-LLD, yellow	M 10 x 1 M 10 x 1					M 10 M 10	1/8 1/8
GPN 315 GS 12 PE-LLD, yellow	M 12 x 1 M 12 x 1	M 12 x 1,25 M 12 x 1,25
GPN 315 GS 14 PE-LLD, yellow	M 14 x 1 M 14 x 1		M 14 x 1,5 M 14 x 1,5
GPN 315 GS 15 PE-LLD, yellow	M 15 x 1 M 15 x 1		M 15 x 1,5 M 15 x 1,5			M 16 M 16
GPN 315 GS 16 PE-LLD, yellow	M 16 x 1 M 16 x 1		M 16 x 1,5 M 16 x 1,5				3/8 3/8
GPN 315 GS 18 PE-LLD, yellow	M 18 x 1 M 18 x 1		M 18 x 1,5 M 18 x 1,5
GPN 315 GS 22 PE-LLD, yellow	M 22 x 1 M 22 x 1		M 22 x 1,5 M 22 x 1,5			M 24 M 24	5/8 5/8

This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.
