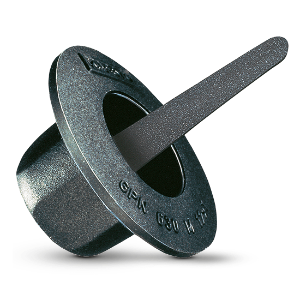

Grip Plugs - GPN 630

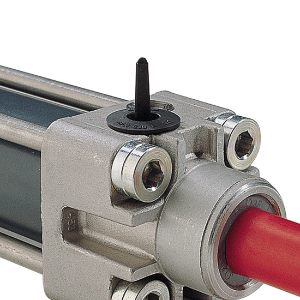

The GPN 630 grip plugs are suitable for the protection of bore holes and internal threads and are temporarily heat-resistant up to 150°C. The positioning of the tab and the special design ensure removal with extremely low material abrasion, even with sharp counter-pieces. The removal tab enables fast removal.
- Grip plugs for internal protection
- Temporarily heat-resistant up to 150°C

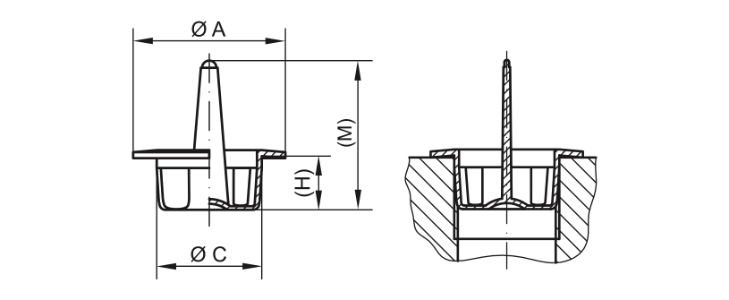

Dimensions
![Drawing Grip plugs - GPN 630 CAD for website](/us/dam/jcr:daa55dc1-deac-4830-8e6e-9a008f6623a0/gpn-630-griffstopfen-cad-web.png)
Dimensions
|
|||||||
---|---|---|---|---|---|---|---|
Item
|
A
|
C
|
H
|
M
|
CAD
|
Order no.
|
|
GPN 630 M 8 x 1 TPE, black | 0.61 | 0.295 | 0.315 | 0.906 | show | 63008100000 | |
|
|||||||
GPN 630 M 10 x 1 TPE, black | 0.689 | 0.374 | 0.315 | 0.898 | show | 63010100000 | |
|
|||||||
GPN 630 M 12 x 1 TPE, black | 0.768 | 0.453 | 0.354 | 0.925 | show | 63012100000 | |
|
|||||||
GPN 630 M 14 x 1,5 TPE, black | 0.846 | 0.531 | 0.354 | 0.937 | show | 63014150000 | |
|
|||||||
GPN 630 M 16 x 1,5 TPE, black | 0.925 | 0.61 | 0.354 | 0.937 | show | 63016150000 | |
|
|||||||
GPN 630 M 18 x 1,5 TPE, black | 1.004 | 0.693 | 0.354 | 0.984 | show | 63018150000 | |
|
|||||||
GPN 630 M 20 x 1,5 TPE, black | 1.083 | 0.768 | 0.354 | 0.984 | show | 63020150000 | |
|
|||||||
GPN 630 M 22 x 1,5 TPE, black | 1.161 | 0.846 | 0.354 | 0.984 | show | 63022150000 | |
|
|||||||
GPN 630 M 24 x 1,5 TPE, black | 1.122 | 0.925 | 0.354 | 0.984 | show | 63024150000 | |
|
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Application guide
for metric threads
|
|||||||
---|---|---|---|---|---|---|---|
Item
|
fine thread
|
Standard thread
|
Unified thread
|
||||
GPN 630 M 8 x 1 TPE, black | M 8 x 1 | M 8 | 5/16 | ||||
GPN 630 M 10 x 1 TPE, black | M 10 x 1 | 3/8 | |||||
GPN 630 M 12 x 1 TPE, black | M 12 x 1 | M 12 x 1,25 | M 12 x 1,5 | 1/2 | |||
GPN 630 M 14 x 1,5 TPE, black | M 13 x 1 | M 14 x 1,5 | 9/16 | ||||
GPN 630 M 16 x 1,5 TPE, black | M 16 x 1,5 | M 17 x 2 | 5/8 | ||||
GPN 630 M 18 x 1,5 TPE, black | M 18 x 1,5 | M 19 x 2 | 11/16 | ||||
GPN 630 M 20 x 1,5 TPE, black | M 20 x 1 | M 20 x 1,5 | |||||
GPN 630 M 22 x 1,5 TPE, black | M 22 x 1 | M 22 x 1,5 | 7/8 | ||||
GPN 630 M 24 x 1,5 TPE, black | M 24 x 1,5 | M 25 x 2 | 15/16 |
This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimension C.
Quality advantages
![<p><strong>Saves time.</strong></p>](/us/dam/jcr:f9b9e149-d63c-4254-a0a9-b71da2fc52cc/kapsto-icon-zeitsparend.png)
Saves time.
![<p><strong>Higher temperature resistance.</strong></p>](/us/dam/jcr:8fec1e00-0519-4ad6-a2b8-7ee04d4af3a5/kapsto-icon-temperaturbestaendig.png)
Higher temperature resistance.
![<p><strong>Better.</strong></p>](/us/dam/jcr:720816ac-c80b-4454-9754-37b505968675/kapsto-icon-zusatzinformationen.png)
Better.
